hose guides
hose guides

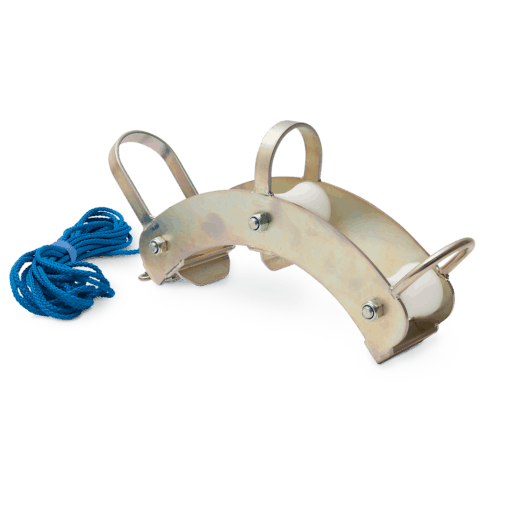

The hose guides not only protect the high-pressure hose, they are also indispensable for good pulling and cleaning performance of your nozzle tools. The devices are equipped with guide rollers and are characterised by simple handling and durable, robust construction.
Note: All hose guides are supplied with 10 m working rope.
Characteristics
- extremely robust and galvanized steel construction

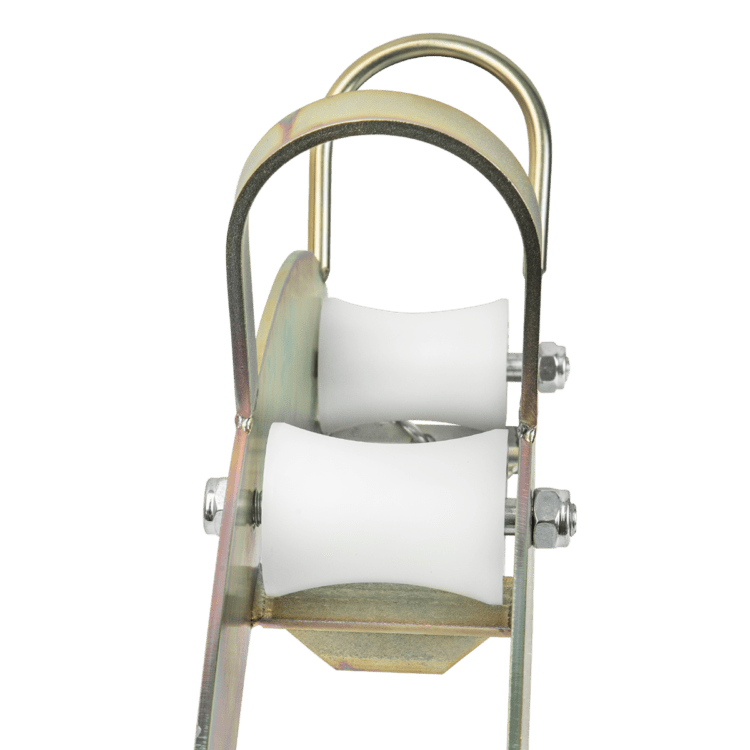

- with smooth-running plastic rollers with stainless steel axle
- rollers and axle can be changed easily
- 10 m working rope included
Ordering Information
Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht
Art.-Nr.:
1130050
Einsatz ab: 100 mm and above
HD-Schlauch: 1/2" to 3/4"
Maße: 490 × 120 × 245 mm
Gewicht: 3.40
Gewicht: 3.40
Art.-Nr.:
1130051
Einsatz ab: 200 mm and above
HD-Schlauch: from 3/4"
Maße: 670 × 120 × 290 mm
Gewicht: 4.60
Gewicht: 4.60
Art.-Nr.:
1130052
Einsatz ab: 200 mm and above
HD-Schlauch: from 1"
Maße: 780 × 120 × 290 mm
Gewicht: 6.40
Gewicht: 6.40
