Bulldozer bottom cleaner
Bulldozer bottom cleaner

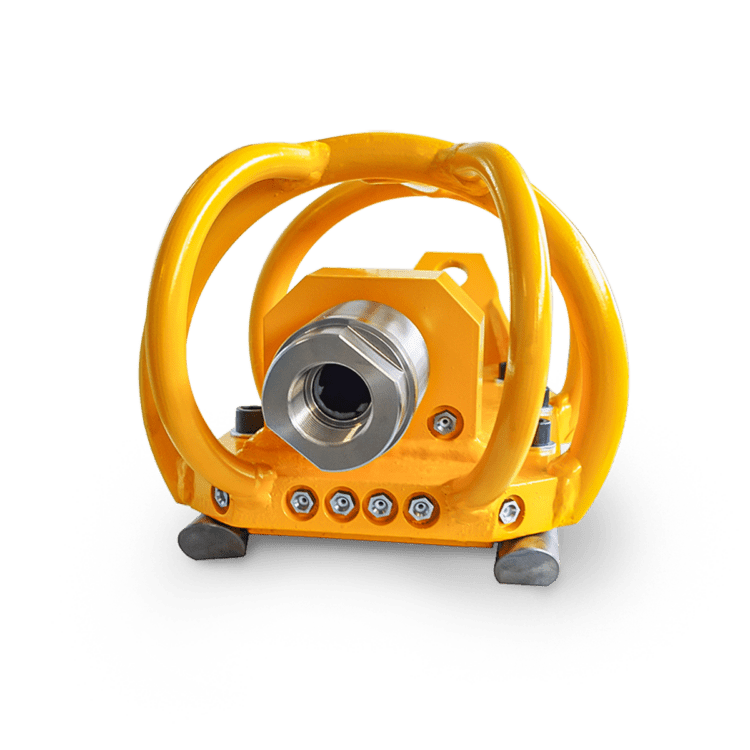

The Bulldozer clearing nozzles are very heavy sewer cleaning nozzles whose entire water output is concentrated on the sewer bottom to be cleaned. They are particularly suitable for heavy sandy, muddy or stony deposits. The nozzles have replaceable skids made of hardened steel.
We recommend the use of swivel joints on the bulldozers.
Characteristics
- for clearing heavy deposits such as sand and mud
- low water consumption
- thorough cleaning, enormous flushing performance and good flushing effect of the canal bottom
- the amount of water available is concentrated on the invert area
- Deep cleaning in the heavily water-bearing sewer (no floating)
- full gliding ability during advance and retraction due to edge covering
- can be used on vehicles with water recovery
Nozzle inserts:
- The nozzles are equipped with ceramic in VA carrier nozzle inserts as standard. Other nozzle inserts are available on request.
- In order to optimally match the nozzle to the flushing unit, we require the pump capacity (liters per minute), the working pressure (bar) as well as the length, diameter and material of the HP hose.
Ordering Information
Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht
Art.-Nr.:
80-0202-0000
Anschluss: 3/4" female thread
Einsatz ab: from 200 mm
Wasserleistung: from 100 lpm
Schubdüsen: 6x M10
Maße: 330 × 150 × 160 mm
Gewicht: 7.00
Gewicht: 7.00
Art.-Nr.:
80-0204-0000
Anschluss: 1" female thread
Einsatz ab: from 800 mm
Wasserleistung: from 300 lpm
Schubdüsen: 10x M10
Maße: 600 × 250 × 200 mm
Gewicht: 37.0
Gewicht: 37.0
Art.-Nr.:
80-0205-0000
Anschluss: 1 1/4" female thread
Einsatz ab: from 800 mm
Wasserleistung: from 300 lpm
Schubdüsen: 10x M10
Maße: 600 × 250 × 200 mm
Gewicht: 37.0
Gewicht: 37.0
