Vienna manhole hooks – galvanized steel

Vienna manhole hooks – galvanized steel

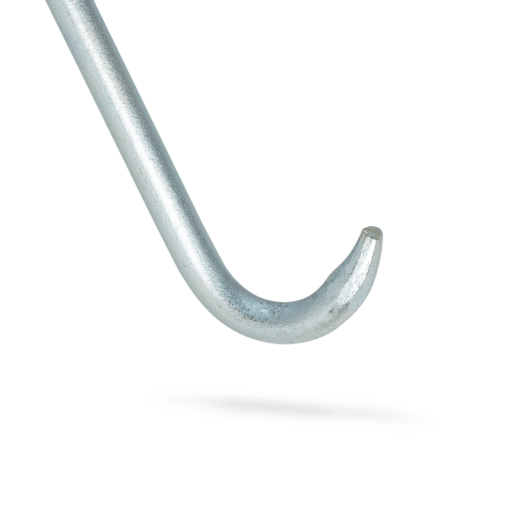

Our Vienna manhole hooks are specially manufactured for manhole covers and customer requirements in this city. Compared to our normal manhole hooks, the Vienna special hooks have a 90° turned tip and are available in 2 different round steel thicknesses of 12 and 14 mm.

The hooks are suitable for quick and easy opening of manhole covers and manhole covers, e.g. during construction or cleaning work. With the large handle in closed form it is possible to pull comfortably with both hands.

The lifters are made of hand-forged steel, hardened and galvanized for permanent protection against corrosion. This makes our shaft hooks extremely robust and durable.

Note: The shaft hook length should be adjusted to the body height.

Characteristics

Technical data:

  • 12 and 14 mm round steel with hand-forged tip hardened in oil bath
  • large handlebar for ambidextrous pulling
  • permanent corrosion resistance due to zinc plating

Further special hooks on request.

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1130208
Länge: 70 cm long
Ausführung: U-shaped
Materialstärke: 12 mm
Maße: 700 × 200 × 12 mm
Gewicht: 1.20


Art.-Nr.:
1130209
Länge: 70 cm long
Ausführung: U-shaped
Materialstärke: 14 mm
Maße: 700 × 200 × 14 mm
Gewicht: 1.30


Art.-Nr.:
1130206
Länge: 80 cm long
Ausführung: U-shaped
Materialstärke: 12 mm
Maße: 800 × 200 × 12 mm
Gewicht: 1.50


Art.-Nr.:
1130207
Länge: 80 cm long
Ausführung: U-shaped
Materialstärke: 14 mm
Maße: 800 × 200 × 12 mm
Gewicht: 1.60


Support Docs

Datasheet Download
