Twister pick nozzles

Twister pick nozzles

The twister nozzle removes all clogging with ease! The spinning front jet of this pick nozzle ensures optimum results when unblocking any tubes or removing small roots and deposits.

The spinning Twister front jet of this nozzle multiplies the impact energy of the front jet of a standard pick nozzle. Compared with standard pick nozzles, this nozzle consumes only 20% of the water available at the front. This way, more water is available for forward traction, cleaning and flushing.

The heavy duty versions of our Twister pick nozzles remain on the sewer bottom and do not rise during operation.

Characteristics

  • HP cleaning to clear clogged tubes of diameters DN 60 mm – DN 500 mm
  • removal of solid deposits, minor incrustations, small roots, and grease
  • excellent traction and cleaning performance, good bend passage
  • replaces a HRV spinning nozzle
  • not suitable for use with a water reclaiming system



Nozzle inserts:

  • The nozzles are equipped as standard with Twister turbo rotation jet and solid ceramic or ceramic in stainless steel carrier nozzle inserts. Other nozzle inserts are available on request.
  • In order to optimally match the nozzle to the flushing unit, we require the pump capacity (liters per minute), the working pressure (bar) as well as the length, diameter and material of the HP hose.



optional:

  • Repair kits for the respective nozzles on request

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1100180
Anschluss: 1/2" female thread
Einsatz ab: 70 - 200 mm
Wasserleistung: from 40 lpm
Schubdüsen: 6x M4
Schub-Strahlwinkel: 18°
Vorstrahldüsen: Twister nozzle (13 lpm)
Vorstrahlwinkel: 20°

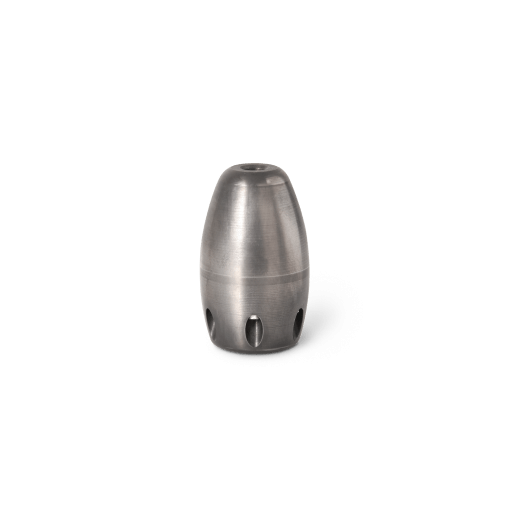

Maße: 63 × 39 × 39 mm
Gewicht: 0.34


Art.-Nr.:
1100181
Anschluss: 3/4" female thread
Einsatz ab: 100 - 300 mm
Wasserleistung: from 80 lpm
Schubdüsen: 8x M6
Schub-Strahlwinkel: 20°
Vorstrahldüsen: Twister nozzle (30 lpm)
Vorstrahlwinkel: 20°
Maße: 95 × 55 × 55 mm
Gewicht: 0.85


Art.-Nr.:
1100183
Anschluss: 1" female thread
Einsatz ab: 100 - 300 mm
Wasserleistung: from 180 lpm
Schubdüsen: 8x M6
Schub-Strahlwinkel: 20°
Vorstrahldüsen: Twister nozzle (50 lpm)
Vorstrahlwinkel: 20°
Maße: 95 × 55 × 55 mm
Gewicht: 0.85


Art.-Nr.:
1100185
Anschluss: 1" female thread
Einsatz ab: 200 - 400 mm
Wasserleistung: from 220 lpm
Schubdüsen: 6x M10
Schub-Strahlwinkel: 23°
Vorstrahldüsen: Twister nozzle (50 lpm)
Vorstrahlwinkel: 20°

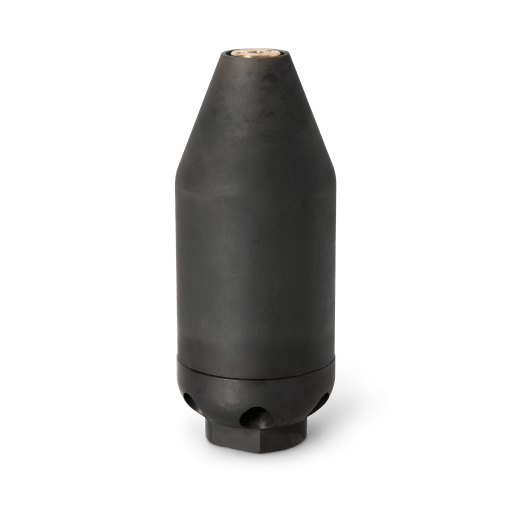

Maße: 180 × 75 × 75 mm
Gewicht: 3.5


Art.-Nr.:
1100187
Anschluss: 1 1/4" female thread
Einsatz ab: 200 - 500 mm
Wasserleistung: from 340 lpm
Schubdüsen: 6x M10
Schub-Strahlwinkel: 23°
Vorstrahldüsen: Twister nozzle (50 lpm)
Vorstrahlwinkel: 20°

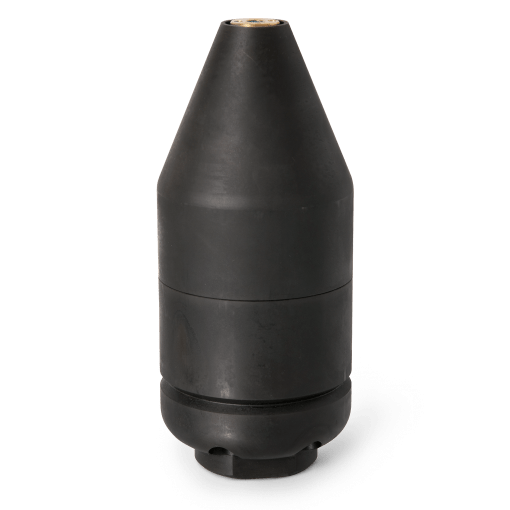

Maße: 205 × 90 × 90 mm
Gewicht: 6.00
