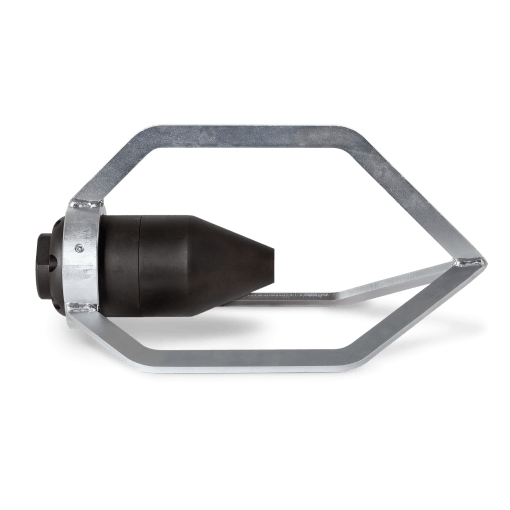

Joker clearing nozzle
Joker clearing nozzle

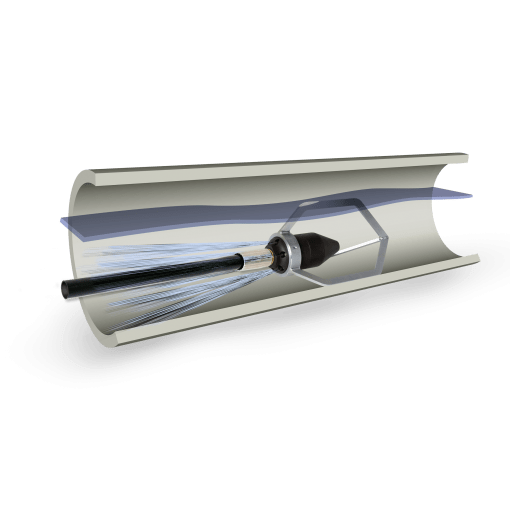

The Joker nozzle is used for cleaning sewer with high water level. Whereby the existing waste water is integrated into the cleaning process. The water flowing in the channel is accelerated so strongly by the flat jet angles that a multiple of the amount of water used is available for the cleaning process. This results in a gigantic washing capacity, transporting large quantities of rubble, sand and gravel.
Characteristics
- Especially suited to clear sewers with high water level from sand and debris
- Used in sewers of DN 400 and above
- Larger sewer lengths possible
Ordering Information
Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht
Art.-Nr.:
1100295
Anschluss: 1" female thread
Einsatz ab: 400 - 1,000 mm
Wasserleistung: from 200 lpm
Schubdüsen: 6x M10
Schub-Strahlwinkel: 7°
Maße: 400 × 250 × 250 mm
Gewicht: 8.30
Gewicht: 8.30
Art.-Nr.:
1100296
Anschluss: 1 1/4" female thread
Einsatz ab: 400 - 1,000 mm
Wasserleistung: from 320 lpm
Schubdüsen: 6x M10
Schub-Strahlwinkel: 7°
Maße: 400 × 250 × 250 mm
Gewicht: 8.20
Gewicht: 8.20
