Vacuum and pumping hoses
Vacuum and pumping hoses
The vacuum and pressure hoses are used in a variety of ways as irrigation hoses, for sewerage and pit cleaning, as manure hoses in agriculture or on municipal vehicles.
The Heliflex spiral hose is a very flexible and handy hose made of a special soft PVC/BUNA mixture, reinforced with an impact-resistant hard PVC spiral. The material used enables very good behaviour at low temperatures.
The completely smooth core ensures low pressure loss and guarantees the highest possible flow rate. The slightly corrugated ceiling offers optimum bending properties. Suitable for a variety of chemical substances. Ozone- and UV-resistant and protected against weather influences.
Characteristics
- For vacuum or transport of water, slurry and all PVC compatible liquids under high vacuum or medium pressure in industry, slurry technology in agriculture and tank trucks.
- Colour: silver grey
- Temperature range: from – 40°C to + 60°C
- Tolerance: DIN 1307
- REACH: Compliant with 1907/2006/EC
- RoHS: Compliant Directive 2015/863 (RoHs 3)
hose construction
- Material: PVC-Buna
- Spiral: Hard PVC
- Inside: smooth soul / Outside: corrugated ceiling
Length (individually selectable)
- DN50 (2″) – DN100 (4″): up to 50 m length
- DN125 (5″): up to 25 m length
- DN150 (6″): up to 20 m length
coupling system
- We equip the desired length of the hose completely with the selected coupling system of your choice.
- Choose the suitable coupling (Perrot / Storz / Italian coupling)
- Perrot coupling: from DN50 (2″) – DN150 (6″)

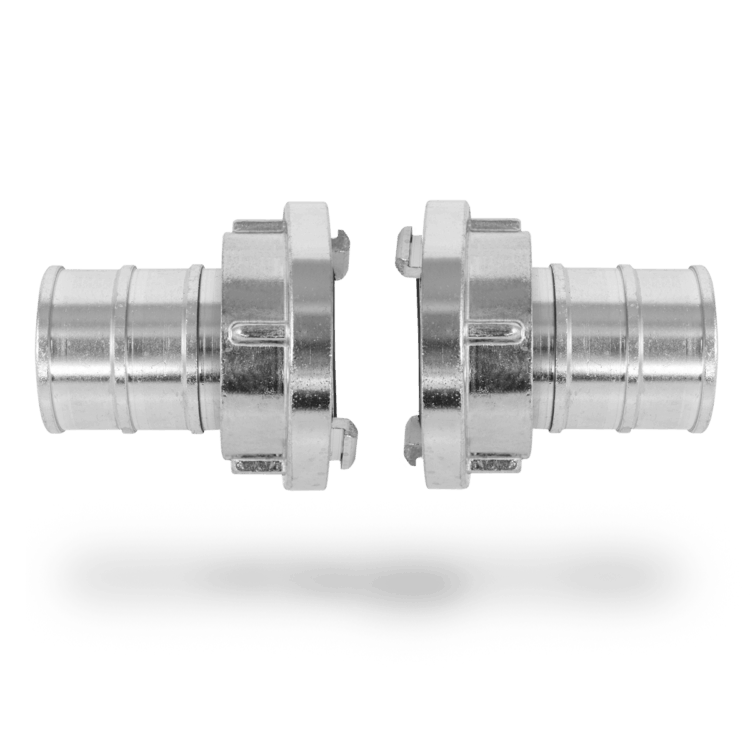

- Storz coupling: from DN50 (2″) – DN150 (6″)
- Italian system: from DN100 (4″) – DN150 (6″)
Ordering Information
Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht
Art.-Nr.:
1300530
Länge: per meter
Durchmesser: ∅ 51 mm / 2"
Maße: 1000 × 51 × 51 mm
Gewicht: 1.00
Gewicht: 1.00
Art.-Nr.:
1300531
Länge: per meter
Durchmesser: ∅ 63 mm / 2.5"
Maße: 1000 × 63 × 63 mm
Gewicht: 1.75
Gewicht: 1.75
Art.-Nr.:
1300532
Länge: per meter
Durchmesser: ∅ 76 mm / 3"
Maße: 1000 × 76 × 76 mm
Gewicht: 1.70
Gewicht: 1.70
Art.-Nr.:
1300533
Länge: per meter
Durchmesser: ∅ 80 mm / 3.15"
Maße: 1000 × 80 × 80 mm
Gewicht: 2.10
Gewicht: 2.10
Art.-Nr.:
1300534
Länge: per meter
Durchmesser: ∅ 90 mm / 3.5"
Maße: 1000 × 90 × 90 mm
Gewicht: 2.21
Gewicht: 2.21
Art.-Nr.:
1300536
Länge: per meter
Durchmesser: ∅ 100 mm / 4"
Maße: 1000 × 100 × 100 mm
Gewicht: 2.27
Gewicht: 2.27
Art.-Nr.:
1300538
Länge: per meter
Durchmesser: ∅ 125 mm / 5"
Maße: 1000 × 125 × 125 mm
Gewicht: 3.60
Gewicht: 3.60
Art.-Nr.:
1300539
Länge: per meter
Durchmesser: ∅ 152 mm / 6"
Maße: 1000 × 125 × 125 mm
Gewicht: 5.00
Gewicht: 5.00
Art.-Nr.:
HBA-Perrot
Ausführung: complete set
Komponente: female and male
Maße: N/A
Gewicht: -
Gewicht: -
Art.-Nr.:
HBA-Storz
Ausführung: complete set
Komponente: female and male
Maße: N/A
Gewicht: -
Gewicht: -
Art.-Nr.:
HBA-Kugelkopf
Ausführung: complete set
Komponente: female and male
Maße: N/A
Gewicht: -
Gewicht: -
