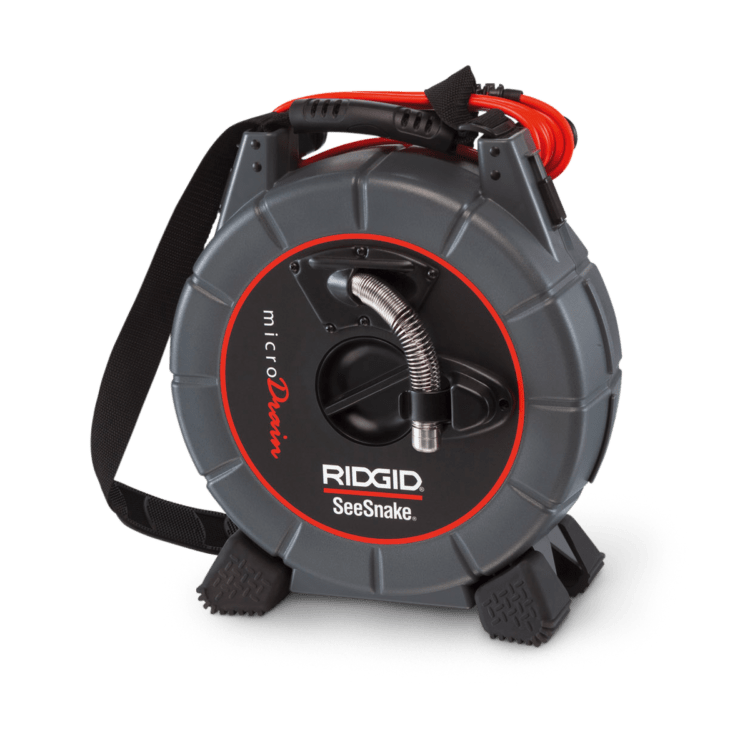

SeeSnake mciroDrain APX
SeeSnake mciroDrain APX
SeeSnake® microDRAIN™APX™with TruSense™is the ideal pipe inspection camera for small pipes and conduits with tight turns. The advanced, high-flexibility push cable and small-radius camera design allows inspection through small-diameter pipes, p-traps, and small-radius bends that other inspection systems often cannot inspect.
Ideal suited for inspections of narrow bends, e.g. odour traps and P-siphons.
Characteristics
- The APX camera head delivers Auto-Image Flip*, digitally rotating the in-pipe image every 180 degrees. (*MicroDRAIN™APX™must be used with TruSense enabled monitor to receive APX™TruSense™features: SeeSnake CS65XR, CS12x, CS6x VERSA, and the CSx VIA. APX TruSense features will not not show on CA-350)
- TruSense™Technology* offers High Dynamic Range (HDR) imaging with the clearest in-pipe image, a TiltSense™Inclinometer displaying the camera’s degree of tilt on the monitor, and Digital Zoom & Pan to focus on points of interest in the on-screen image.
- A specialty high-flex push cable and small diameter camera head are ideal for multiple bends, p-trap and toilet traps.
- Built-in kickstand offers in-field versatility with multiple configurations for optimal operation
technical data
- Camera Head: 0.86″ (22 mm)
- Cable Length: 65′ (20 m)
- Cable Diameter: 0.33″ (8.3 mm)
- Line Capacity: 32 – 75 mm
- Resolution: 640 x 480 px
- Ball Guide 2 included
- Sonde: 512 Hz
- Counter: Not available
Scope of delivery – Complete set with micro CA350
- microDrain APX push rod reel
- micro CA-350 monitor with recording function
- 12V Battery
- charger
Ordering Information
Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht
Art.-Nr.:
R77578
Ausführung: complete set
Arbeitsbereich: 32 - 75 mm
Länge: 20 m
Ortung: 512 Hz
Maße: 337 × 224 × 411 mm
Gewicht: 9.5
Gewicht: 9.5
Art.-Nr.:
R70023
Arbeitsbereich: 32 - 75 mm
Länge: 20 m
Ortung: 512 Hz
Maße: 337 × 224 × 411 mm
Gewicht: 5.30
Gewicht: 5.30
Art.-Nr.:
R55903
Ausführung: with battery and charger
Maße: 267 × 105 × 60 mm
Gewicht: 0.9
Gewicht: 0.9
