Rohrboy 20/75 – pressure washer trolley

Rohrboy 20/75 – pressure washer trolley

The pressure washer trolley – Rohrboy 20/75 is the little helper for big problems in the house connection area. With its capacity from 20 litres per minute to 75 bar, sliding hose and the special Twister insert, pipe blockages are no longer a problem.

Simply push the dirt from the inspection flap or the connection into the main duct. Fast – Easy – Safe (no more flooded cellars).

Characteristics

Technical data:
  • Rated voltage: 230 V, 50 Hz
  • High pressure pump: Speck
  • Pump capacity: 20 litres up to 75 bar
  • Total pressure increase: 850 pa (35 m hose)
  • Hose connection: Rohrboy quick-release fastener
  • Stainless steel frame with extendable handle for space-saving transport

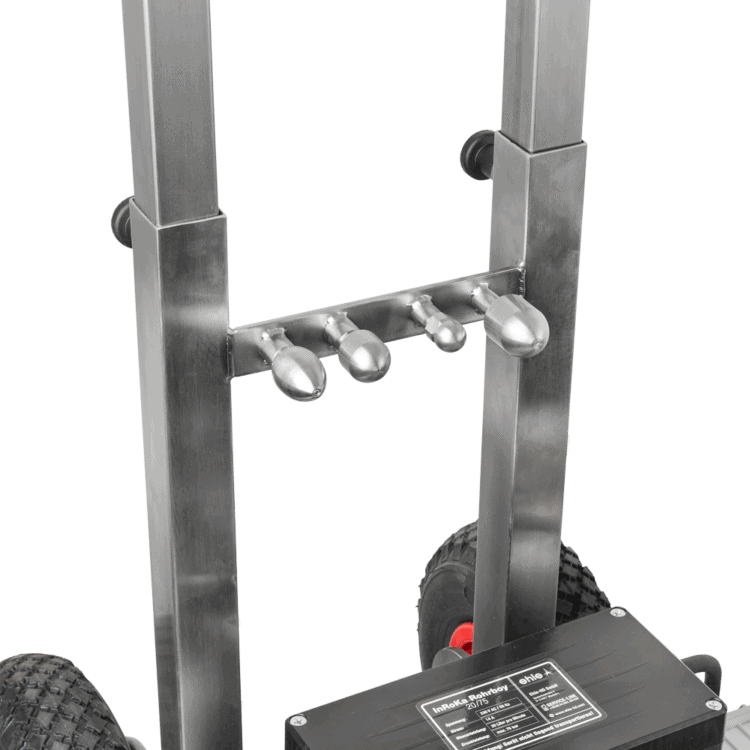

  • 4 nozzle holders on the frame 2x 1/4″ and 2x 3/8

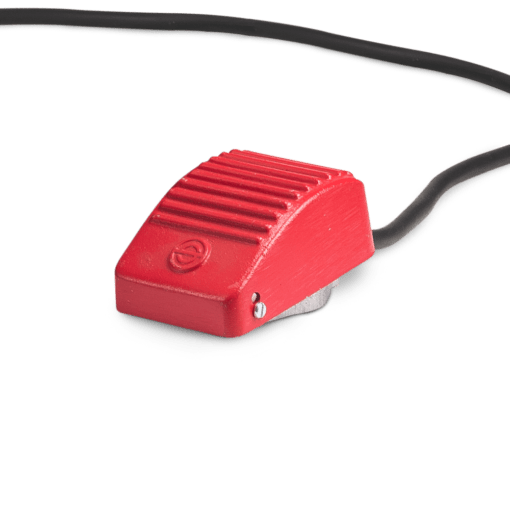

  • Foot switch for easy working



Rohrboy 20/75 complete set consisting of:
  • 1x Rohrboy 20/75 with foot and pressure switch

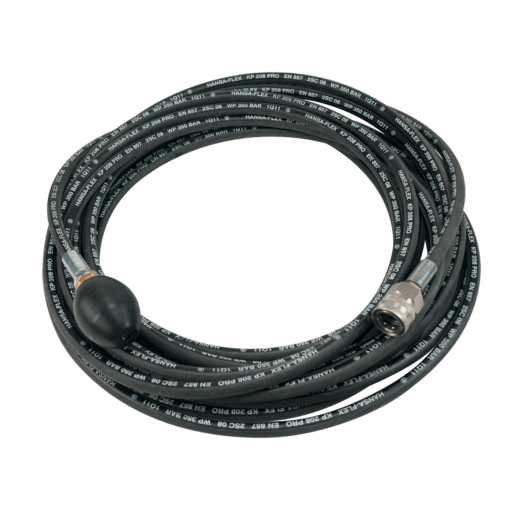

  • 1x Rohrboy sliding hose 10m (NW6) with push-pull nozzle
  • 1x Rohrboy push hose 15m (NW8) with push twister nozzle
  • 1x water supply hose with 2x GEKA connectors (5 m long)
  • 1x Tube bag



Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1130300
Ausführung: complete set
Maße: 650 × 500 × 1004 mm
Gewicht: 57.0


Art.-Nr.:
1130301
Anschluss: Rohrboy-Quicklock to 3/8" male
Länge: 15 m
Betriebsdruck: max. 350 bar
Maße: 15000 × 50 × 30 mm
Gewicht: 5.00


Art.-Nr.:
1130311
Anschluss: Rohrboy-Quicklock to 1/4″ male
Länge: 10 m
Betriebsdruck: max. 350 bar
Maße: 10.000 × 20 × 20 mm
Gewicht: 3.00


Art.-Nr.:
1130312
Anschluss: Rohrboy-Quicklock to 3/8" male
Länge: 15 m
Betriebsdruck: max. 350 bar
Maße: 15.000 × 30 × 30 mm
Gewicht: 5.00


Art.-Nr.:
1130305
Anschluss: 1/4" female thread
Einsatz ab: 25 - 100 mm
Wasserleistung: from 11 lpm
Schubdüsen: 3x with bore
Vorstrahldüsen: (-)
Maße: 22 × 18 × 18 mm
Gewicht: 0.02


Art.-Nr.:
1130307
Anschluss: 1/4" female thread
Einsatz ab: 25 - 100 mm
Wasserleistung: from 11 lpm
Schubdüsen: (-)
Vorstrahldüsen: 3x with bore
Vorstrahlwinkel: 25° / 0°
Maße: 22 × 18 × 18 mm
Gewicht: 0.02


Art.-Nr.:
1130308
Anschluss: 3/8" female thread
Einsatz ab: 75 - 200 mm
Wasserleistung: from 20 lpm
Betriebsdruck: 75 bar
Schubdüsen: (-)
Vorstrahldüsen: Twister (20 lpm)
Vorstrahlwinkel: 20°
Maße: 83 × 60 × 60 mm
Gewicht: 0.25


Art.-Nr.:
1120477
Ausführung: accessories
Wasserleistung: from 20 lpm
Betriebsdruck: max. 100 bar
Maße: 40 × 20 × 20 mm
Gewicht: 0.05


Art.-Nr.:
1130317
Maße: 500 × 480 × 120 mm
Gewicht: 0.630


Art.-Nr.:
109009
Ausführung: accessories
Inhalt: 1.0 litre
Maße: 10 × 40 × 150 mm
Gewicht: 1.1


Support Docs

Datasheet Download
