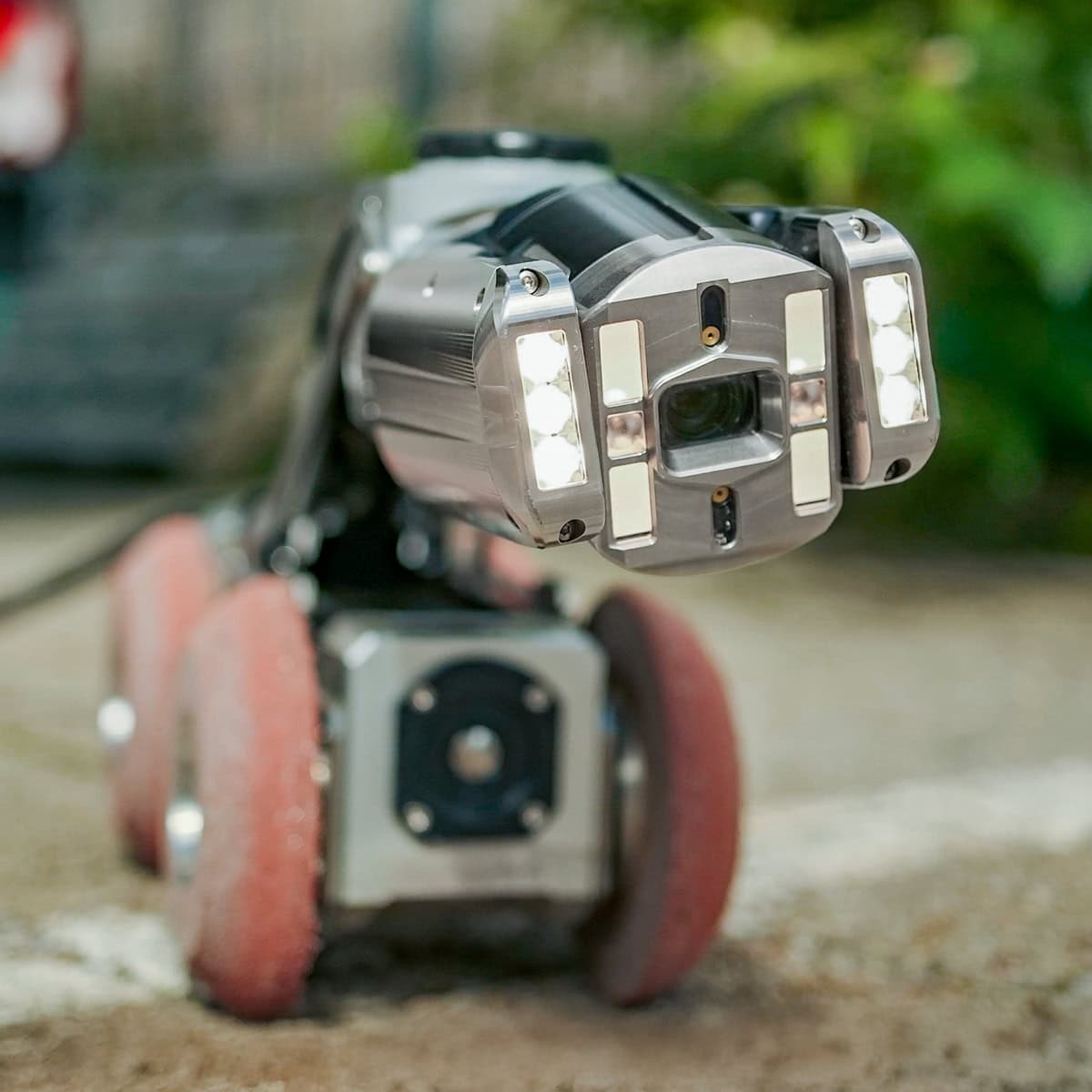

• Full HD camera for precise sewer TV inspections
• integrated deformation and diameter measurement

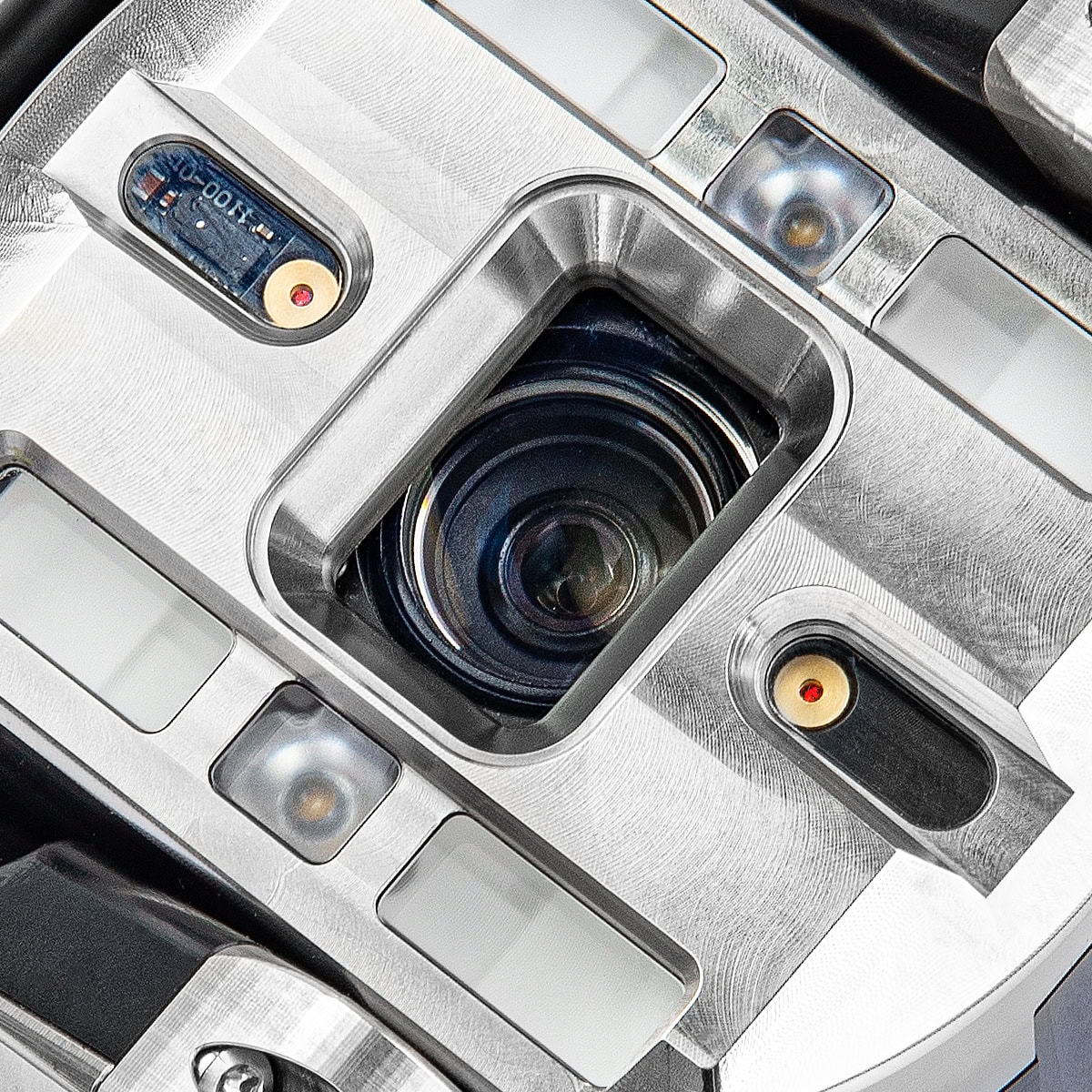

• spiral laser and TOF sensors for accurate measurement results
• continuous diameter display detects even the smallest deviations
• powerful motors for safe swiveling at sockets
• homogeneous LED illumination for improved image quality
• robust construction for long camera head service life
• large pan and tilt range for flexible inspections
• suitable for a wide range of pipe diameters
• also available as an option for use in EX zones

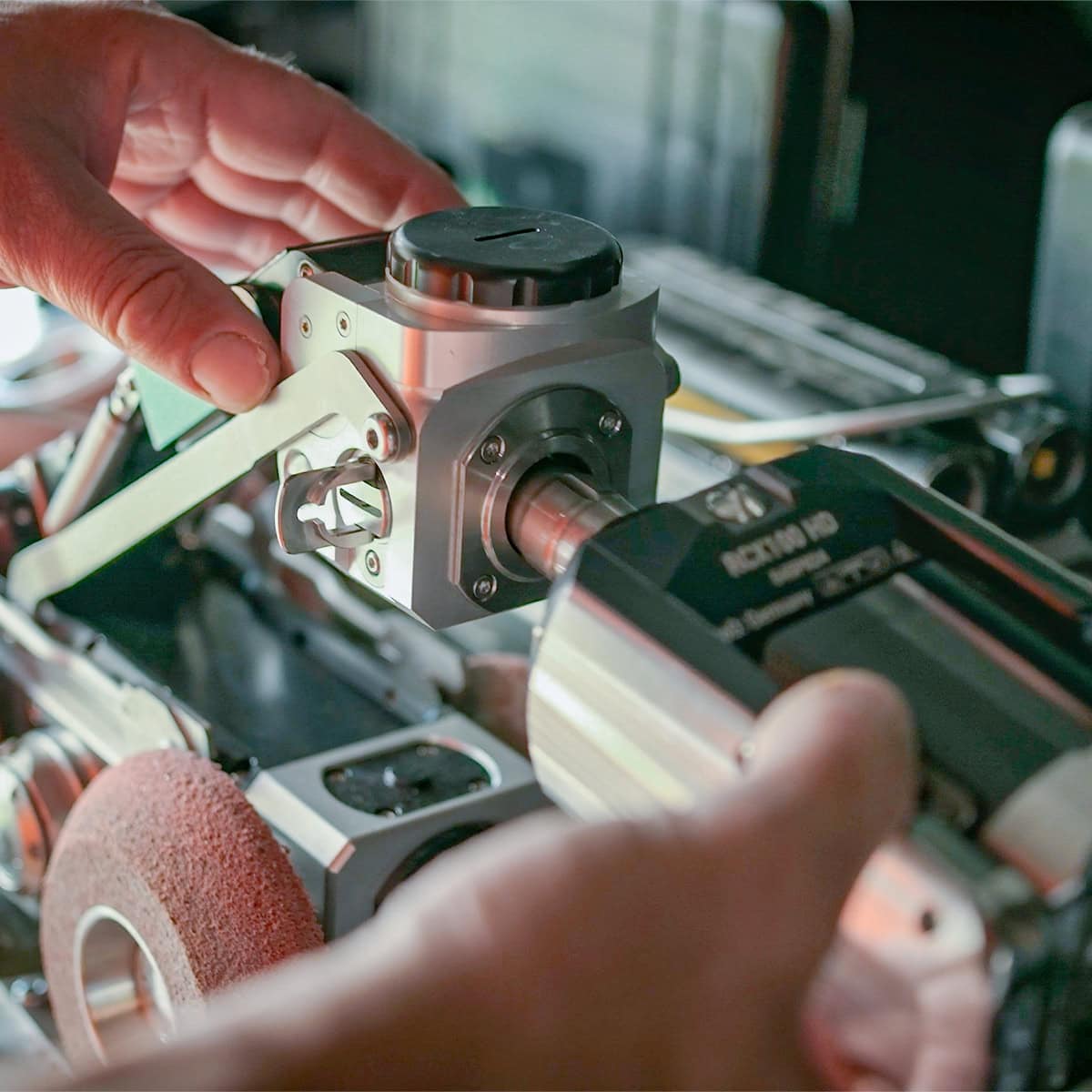

• quick Change Design (QCD) for quick and easy installation
• compatible with ROVION inspection system

Technical data:

• Nominal pipe diameters: from 150 mm
• Trolley operation: Yes
• Pressure resistance: up to a maximum of 1 bar
• Lighting: powerful, homogeneous, regulated LED lighting for close-up and long-range viewing
• Swivel range: +/- 135°
• Rotation: endless
• Focus: 10 mm to infinity (automatic and manual)
• Optical zoom: 10x
• Digital zoom: 16x
• Resolution: 1920 x 1080 px
• Light sensitivity: 0.1 lux
• Laser: yes, dual laser
• Laser distance: 33.5 mm
• Internal pressure sensor: Yes
• Angle sensor: yes
• Protection class: IP68 up to 10 m water depth
• Ambient temperature range: 0°C to 40°C
• Storage temperature range: -20°C to 70°C
• Material: aluminum/stainless steel
• Dimensions (WxHxD): 94 x 73 x 182
• Weight: 1.57 kg

Two versions available

The RCX100 HD is the first sewer camera available in two different versions. Depending on the version, the image sensor is rotated by 90° so that the camera is optimally designed for the respective area of application:

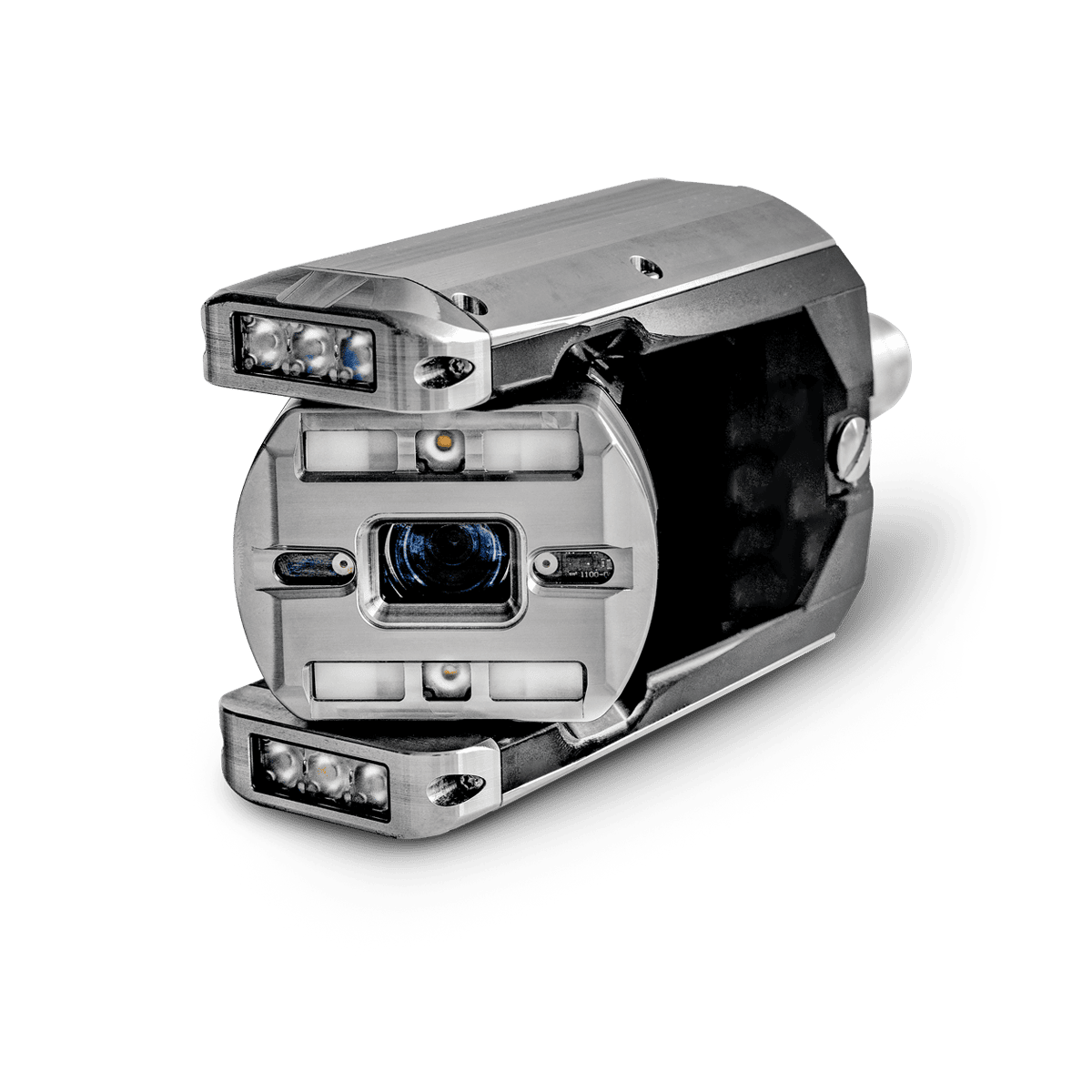

• H series: horizontal swivel (left–right)

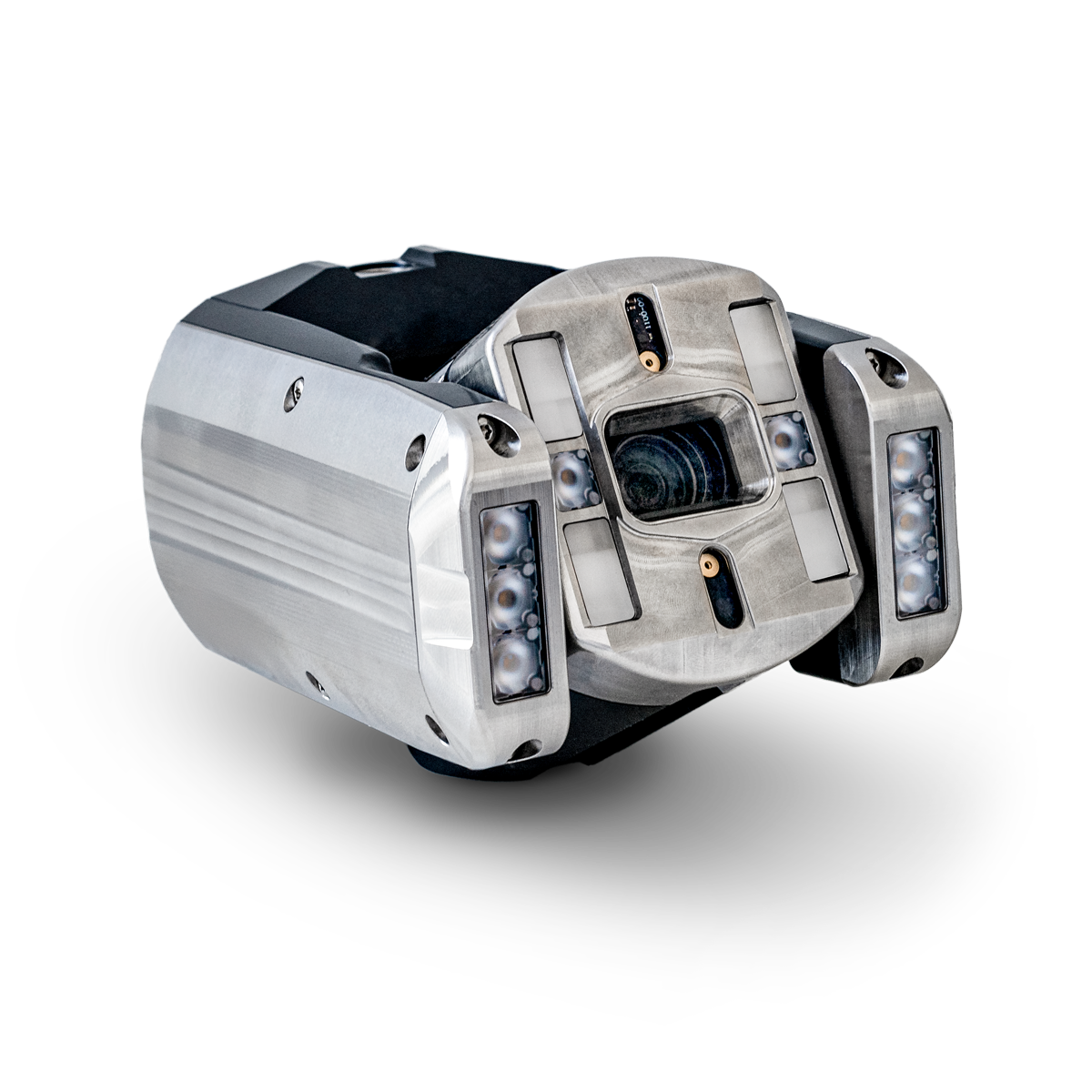

• V series: vertical swivel (bottom–top)

Choose the version that suits the usual workflows of the inspectors – without any adjustments and with maximum ease of use.

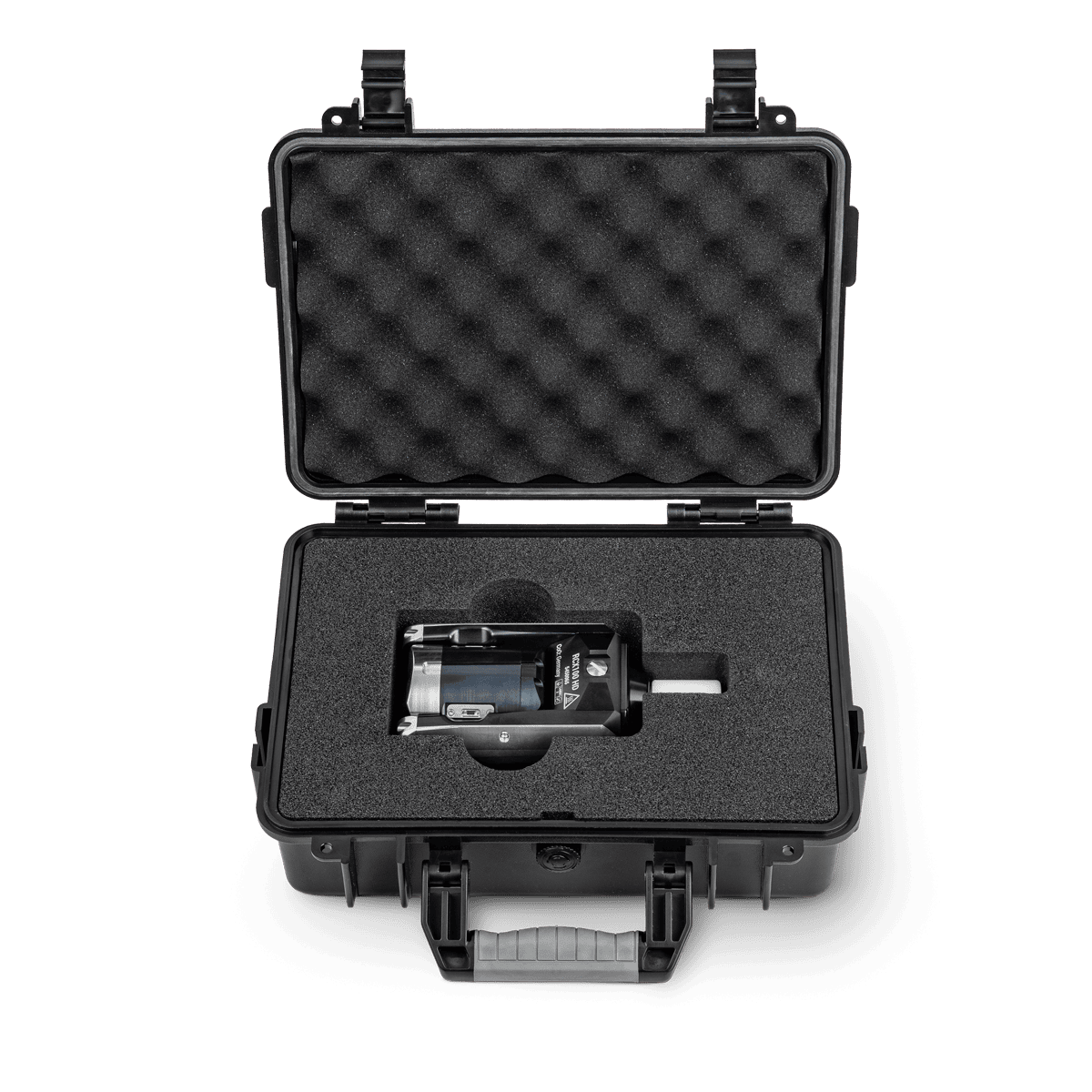

Scope of delivery:

• 1x RCX100 HD camera head
• 1x standard accessory
