pipe stoppers

pipe stoppers

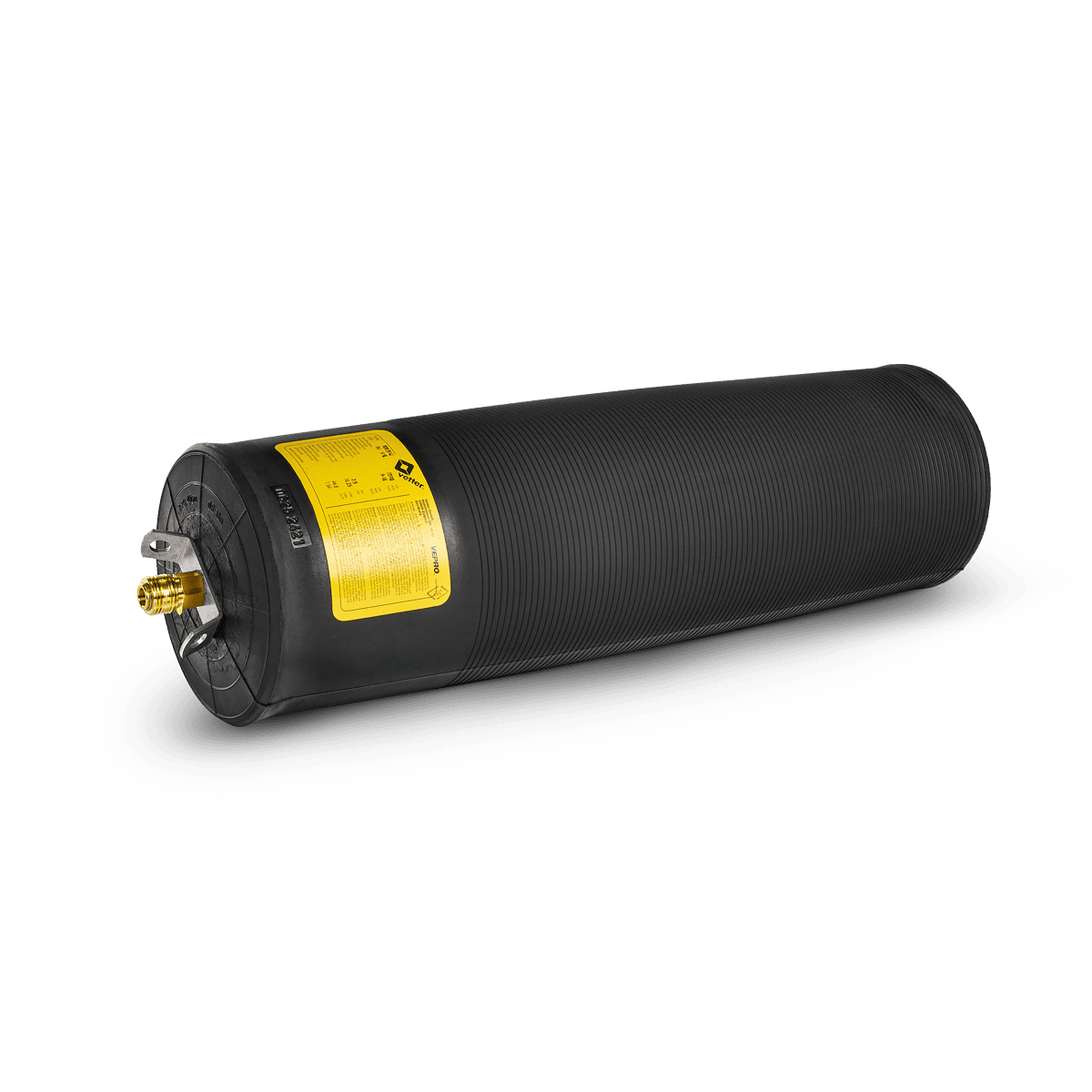

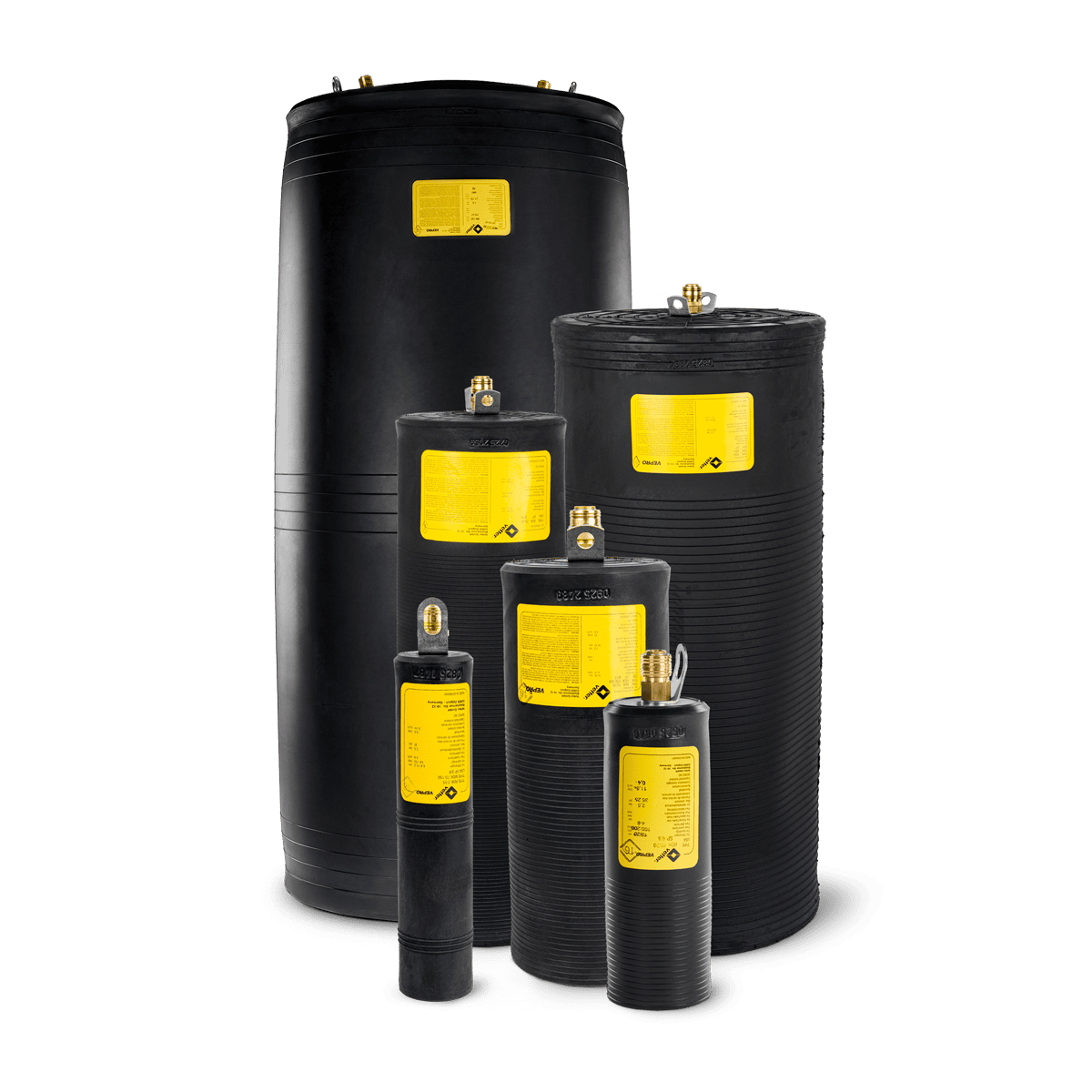

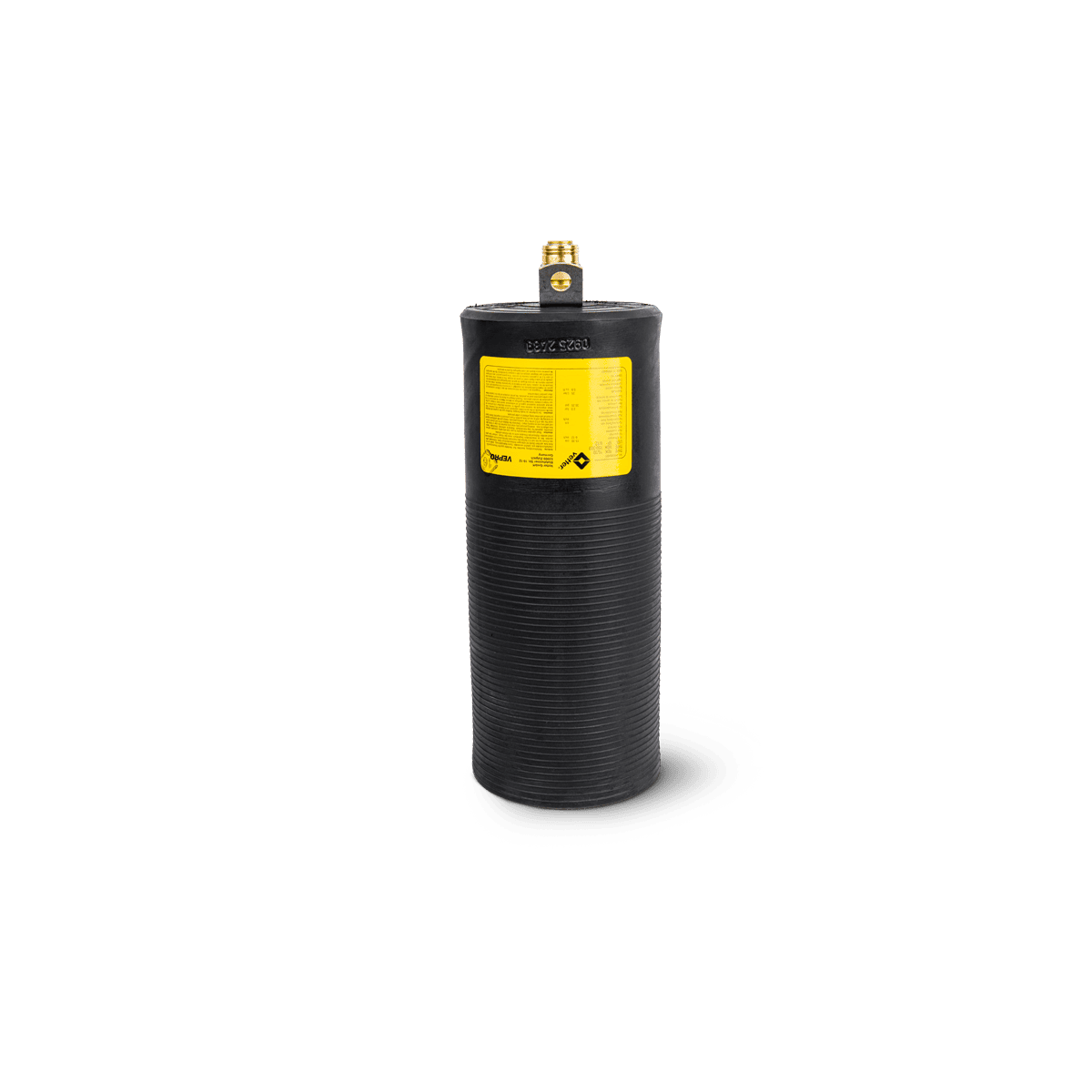

Vetter’s universal inflatable pipe stoppers are the ideal solution for quickly and securely sealing drainage channels. They are used, for example, for repairing, inspecting, cleaning and maintaining sewer pipes. But the sealing bags also efficiently and reliably prevent the backflow of sewage in the event of pipe bursts or flooding.

Due to their versatility, the sealing bags are used in a wide range of industries, such as road construction and civil engineering companies, sewer rehabilitation, water associations, fire brigades and industry. Vetter pipe sealing bags are suitable for leak testing in accordance with DIN EN 1610.

Characteristics

  • quick and secure sealing of drainage channels
  • ideal for temporary closures in pipes and sewers
  • optimal for repair, inspection, cleaning and maintenance work
  • reliable backflow protection in the event of pipe bursts or flooding
  • suitable for leak testing in accordance with DIN EN 1610
  • made from high-quality natural rubber with high elasticity
  • suitable for many industries: civil engineering, sewer rehabilitation, water associations, industry
  • easy to use thanks to lightweight and robust design
  • high quality control – each sealing bladder undergoes testing after manufacture and receives a test seal
  • made in Germany



To avoid risk, we always recommend to use a support or a restrained joint acc. to DGUV Information 201-022 (previously, BGI 802)

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
V1440000301
Arbeitsbereich: 70 - 150 mm
Zylinderlänge: 300 mm
Betriebsüberdruck: 2.5 bar (36.2 psi)
max. Gegendruck: 1.0 bar (14.5 psi)
Maße: 345 × 68 × 68 mm
Gewicht: 0.50


Art.-Nr.:
V1440011700
Arbeitsbereich: 100 - 200 mm
Zylinderlänge: 250 mm
Betriebsüberdruck: 2.5 bar (36.2 psi)
max. Gegendruck: 1.0 bar (14.5 psi)
Maße: 295 × 90 × 90 mm
Gewicht: 0.60


Art.-Nr.:
V1440000601
Arbeitsbereich: 150 - 300 mm
Zylinderlänge: 350 mm
Betriebsüberdruck: 2.5 bar (36.2 psi)
max. Gegendruck: 1.0 bar (14.5 psi)
Maße: 395 × 145 × 145 mm
Gewicht: 1.40


Art.-Nr.:
V1440020100
Arbeitsbereich: 200 - 400 mm
Zylinderlänge: 650 mm
Betriebsüberdruck: 2.5 bar (36.2 psi)
max. Gegendruck: 1.0 bar (14.5 psi)
Maße: 700 × 195 × 195 mm
Gewicht: 2.80


Art.-Nr.:
V1440016700
Arbeitsbereich: 200 - 500 mm
Zylinderlänge: 750 mm
Betriebsüberdruck: 2.5 bar (36.2 psi)
max. Gegendruck: 1.0 bar (14.5 psi)
Maße: 795 × 195 × 195 mm
Gewicht: 4.20


Art.-Nr.:
V1440000801
Arbeitsbereich: 300 - 600 mm
Zylinderlänge: 735 mm
Betriebsüberdruck: 2.5 bar (36.2 psi)
max. Gegendruck: 1.0 bar (14.5 psi)
Maße: 780 × 295 × 295 mm
Gewicht: 7.40


Art.-Nr.:
V1440028200
Arbeitsbereich: 500 - 1000 mm
Zylinderlänge: 1110 mm
Betriebsüberdruck: 2.5 bar (36.2 psi)
max. Gegendruck: 1.0 bar (14.5 psi)
Maße: 1155 × 450 × 450 mm
Gewicht: 18.5


Art.-Nr.:
V1480001901
Arbeitsbereich: 600 - 1200 mm
Zylinderlänge: 1320 mm
Betriebsüberdruck: 1.5 bar ( 21.8 psi)
max. Gegendruck: 0.5 bar (7.25 psi)
Maße: 1365 × 580 × 580 mm
Gewicht: 27.0


Art.-Nr.:
V1492000700
Arbeitsbereich: 800 - 1600 mm
Zylinderlänge: 2000 mm
Betriebsüberdruck: 1.5 bar ( 21.8 psi)
max. Gegendruck: 0.5 bar (7.25 psi)
Maße: 2050 × 780 × 780 mm
Gewicht: 69.0


Art.-Nr.:
V1492000800
Arbeitsbereich: 800 - 2200 mm
Zylinderlänge: 3200 mm
Betriebsüberdruck: 1.5 bar ( 21.8 psi)
max. Gegendruck: 0.5 bar (7.25 psi)
Maße: 3250 × 780 × 780 mm
Gewicht: 110
