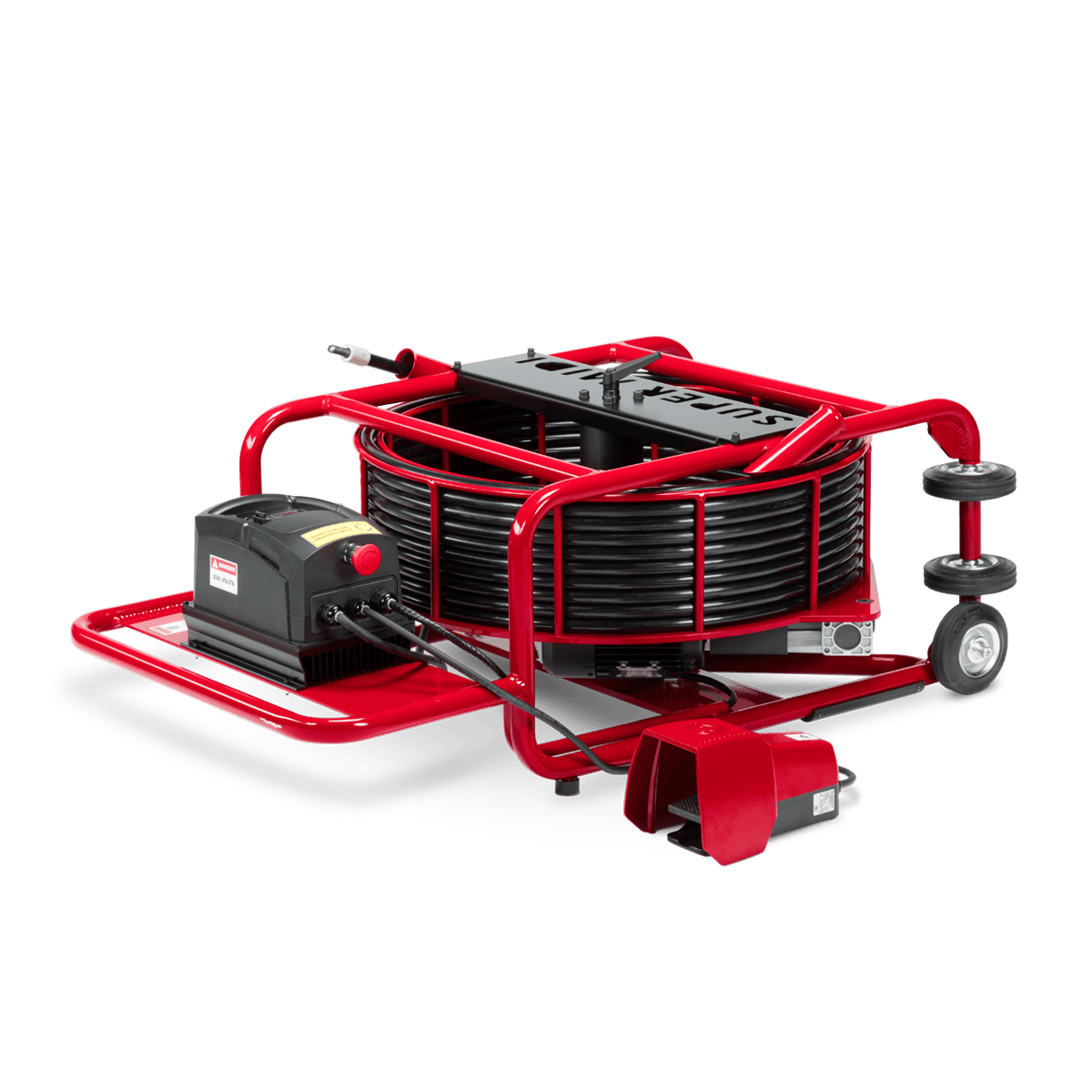

Picote Super Midi Miller
Picote Super Midi Miller
The Super Midi Miller closes the gap between the capabilities of the Mini and Maxi Miller and impresses with the additional power of a larger 12 mm shaft. The machine is suitable for cleaning, descaling, root removal as well as milling and repair work in pipes from DN70 to DN150. With a reach of 20 meters, which can be extended to up to 30 meters with a shaft extension, it offers a high degree of flexibility on the construction site. The use of a thinner shaft casing significantly increases maneuverability – ideal for use in bends and angled pipe runs. The Super Midi Miller can also be combined with the Picote Maxi Coating pump to reliably coat pipes in the DN70 to DN200 range.
Characteristics
- Cleaning / descaling: DN 70 – 150 mm
- Milling / rehabilitation preparation: DN 70 – 150 mm
- Picote Brush Coating™: DN 70 – 200 mm
- Parallel camera inspection possible
- 12 mm shaft with thinner shaft casing for greater maneuverability in pipes with bends
- Range 20 m + 10 m extension
- Infinitely adjustable speed and high torque
- High-speed pipe cleaning for unclogging and root removal
- With foot pedal for comfortable working with 2 hands
- The standard safety equipment with electronic safety clutch, protective shaft casing and emergency stop protects you and your equipment
- A sturdy frame construction protects the technology and increases the service life.
- Suitable for Picote Brush Coating™ in combination with coating pump
Technical data:
- Pipe diameter: from 70 – 150 mm
- cable length: 20 m + 10 m extension
- ∅ flexshaft: 12 mm
- flexshaft protective layer: thin
- Rotation speed: 500 – 1500 min -1
- Output: 1500 W
- Voltage: 230 V, 16A
- IP protection class: 54
- Weight with battery: 69 kg
Ordering Information
Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht
Art.-Nr.:
P3551031220
Arbeitsbereich: 70 - 150 mm
Wellentyp: 12 mm
Länge: 20 m + 10 m
Stromversorgung: 230 volts
Marke: Picote
Maße: 1122 × 712 × 466 mm
Gewicht: 69
