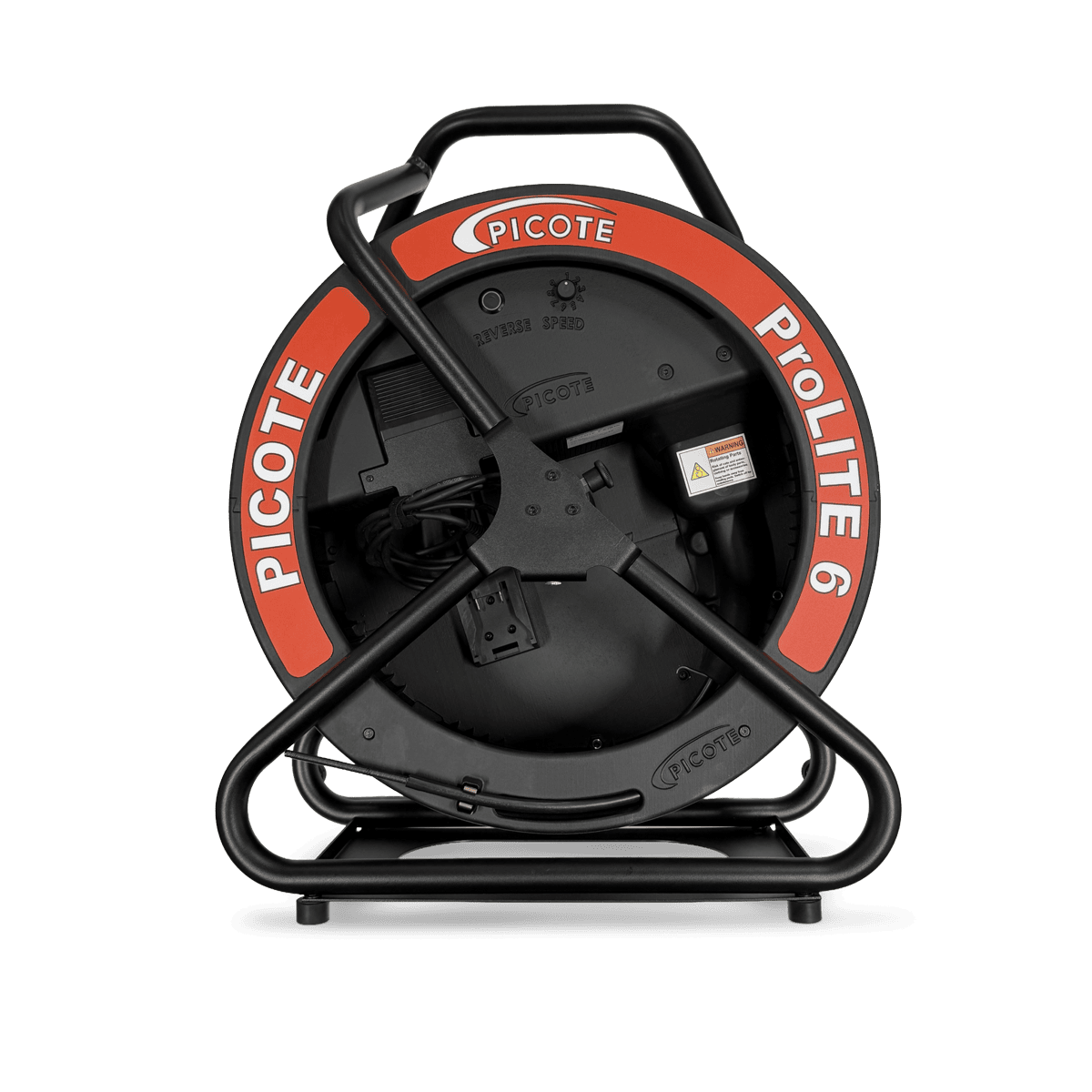

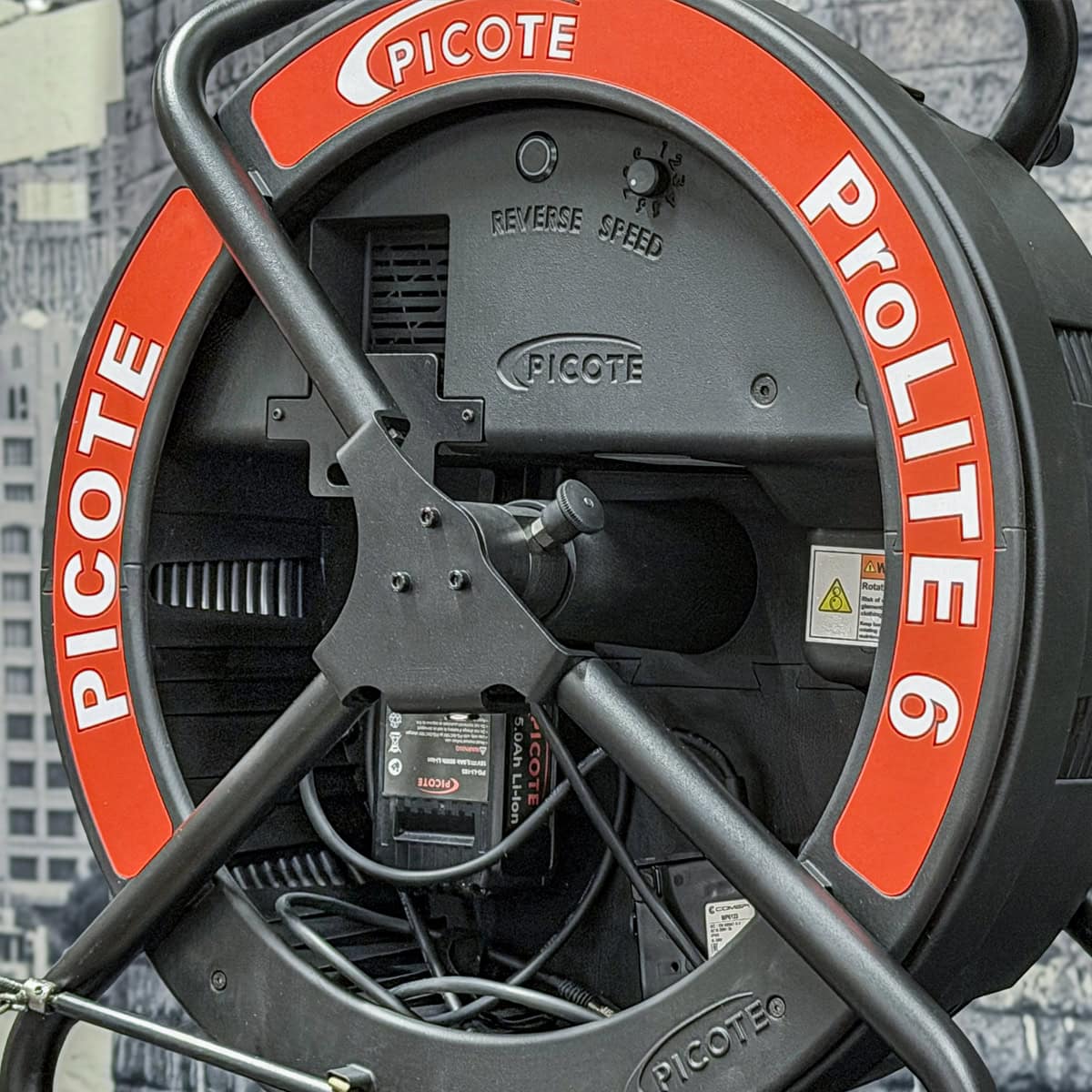

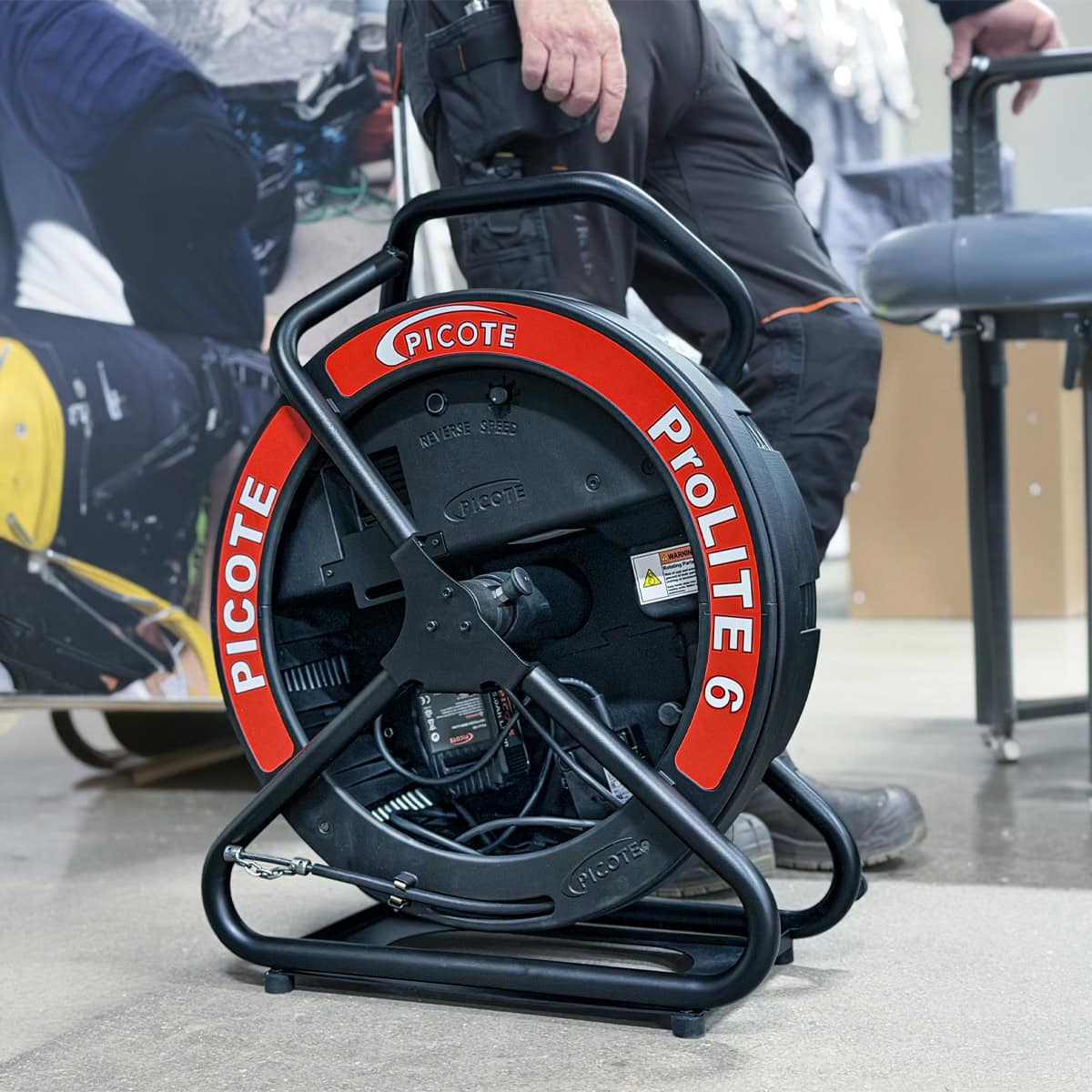

Picote ProLITE – Drain cleaning machine

Picote ProLITE – Drain cleaning machine

The battery-powered Picote ProLITE Miller machines are designed for professional cleaning, descaling, and unblocking of small to medium-sized pipes. Thanks to their particularly lightweight, compact design, they are ideal for precise work in confined spaces. The 18 V Li-ion battery offers maximum cleaning power and mobility on the construction site.

Features such as variable speed control, a wide range of tools, and maximum ease of use give the ProLITE series the power and flexibility to reliably handle demanding projects anywhere.

Characteristics

  • Compact & mobile: ergonomic handle, handy design, optional backpack strap
  • Lightweight construction: only 13.6 kg (6 mm) or 14.6 kg (8 mm) including battery
  • Cordless operation: 18 V Li-ion battery (5.0 Ah) with charger included
  • Optional: dual charger and additional batteries for longer operating time
  • Variable speed: infinitely variable from 850–2150 rpm for gentle cleaning
  • Safety features: shaft with protective coating, pedal control with operator presence check, electronic safety clutch
  • Electronic safety clutch: eliminates the risk of kickback and improves protection for the operator and equipment.
  • High tool compatibility: suitable for numerous Picote tools such as chains, drill heads, smart cutters, and brushes



Technical data:

  • Pipe diameter: DN32-75 (ProLITE 6) / DN50-100 (ProLITE 8)
  • Shaft: ∅ 6 mm (ProLITE 6) / ∅ 8 mm (ProLITE 8)
  • Usable shaft length: 19 m (ProLITE 6) / 14 m (ProLITE 8)
  • Variable speed: 850 – 2150 rpm

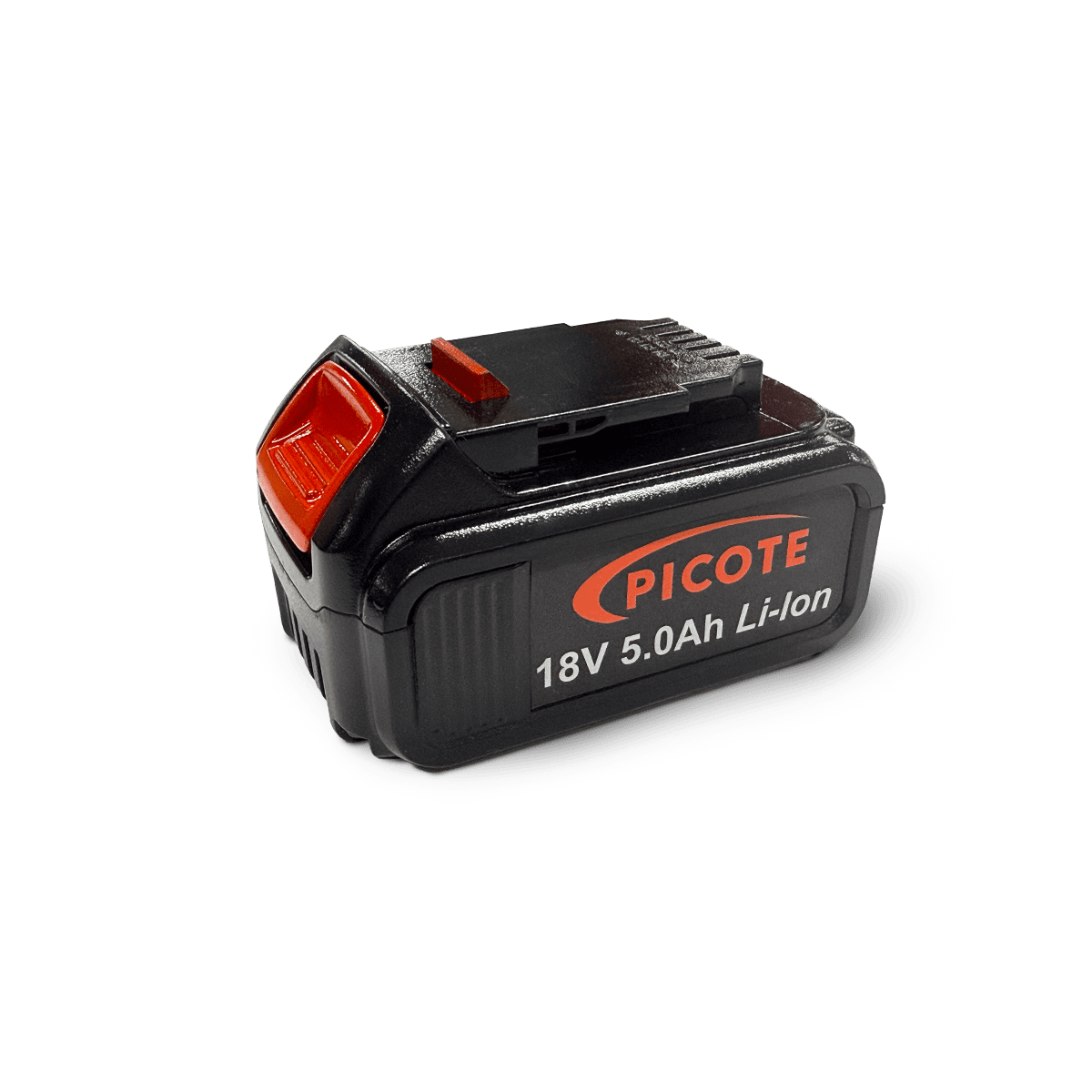

  • Power: Li-ion 18V 5.0 Ah battery
  • Operating time: 20 min (at full load)
  • Battery charging time: 1 hr 40 min (empty to full)

Scope of delivery:

  • 1x Picote ProLite Miller pipe cleaning machine
  • 1x Foot pedal control
  • 1x 5.0 Ah battery
  • 1x Single charger
  • 1x Instruction manual

ProLite starter kit contents (optional):

  • 1x original PVC chain PVC, single chain – ProLITE 6 – DN32/6 mm or ProLITE 8 – DN50/8 mm
  • 1x original PVC chain – ProLITE 6 – DN50/6 mm or ProLITE 8 – DN70/8 mm
  • 1x nylon brush – ProLITE 6 – 50 mm or ProLITE 8 – 75 mm
  • 1x nylon brush – ProLITE 6 – 75 mm or ProLITE 8 – 100 mm
  • 1x Unblocking Head – ProLITE 6 – DN32-50 / 6mm or ProLITE 8 – DN50-70 / 8mm
  • 1x Combination hex key 1.5 – 6mm
  • Picote Tool Bag XS

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
P3510000620
Arbeitsbereich: 32 - 75 mm
Wellentyp: 6 mm
Länge: 20 m
Marke: Picote
Maße: 620 × 270 × 520 mm
Gewicht: 13.6


Art.-Nr.:
P3510000815
Arbeitsbereich: 50 - 100 mm
Wellentyp: 8 mm
Länge: 15 m
Marke: Picote
Maße: 620 × 270 × 520 mm
Gewicht: 14.6


Art.-Nr.:
P1011000002
System: ProLITE 6
Arbeitsbereich: 32 - 75 mm
Wellentyp: 6 mm
Ausführung: Kit
Maße: 380 × 210 × 140 mm
Gewicht: 1.18


Art.-Nr.:
P1011000003
System: ProLITE 8
Arbeitsbereich: 50 - 100 mm
Wellentyp: 8 mm
Ausführung: Kit
Maße: 380 × 210 × 140 mm
Gewicht: 1.18


Art.-Nr.:
P3510000001
Ausführung: accessories
Marke: Picote
Maße: 110 × 76 × 65 mm
Gewicht: 0.62


Art.-Nr.:
P3510000003
Ausführung: accessories
Marke: Picote
Maße: 350 × 100 × 80 mm
Gewicht: 2.20


Art.-Nr.:
P1350000020
Inhalt: 0.5 litre
Maße: 70 × 70 × 150 mm
Gewicht: 0.5


Support Docs

Datasheet Download
