nozzle swivel joints

nozzle swivel joints

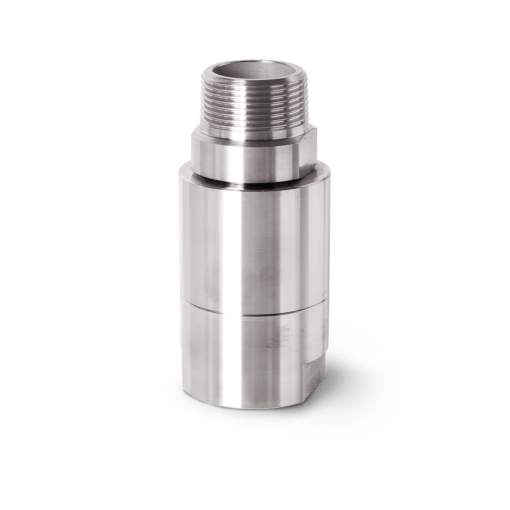

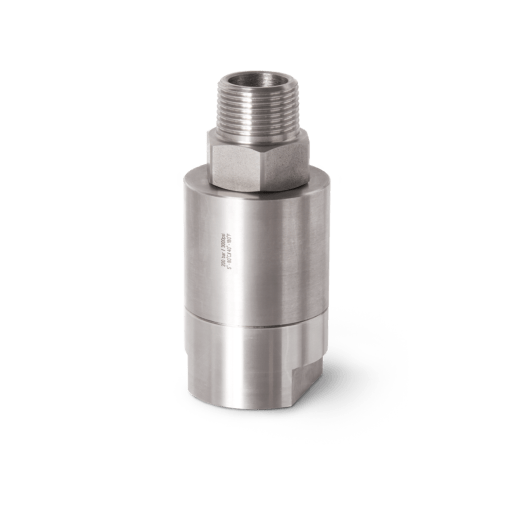

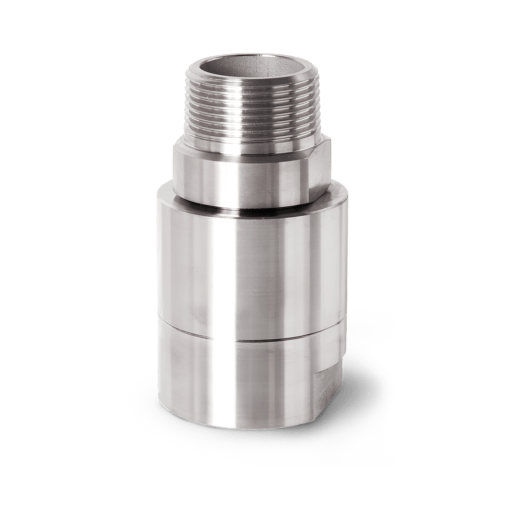

The nozzle swivel joints of stainless steel are used on large sewer cleaning nozzles, e.g. on root cutters, bottom cleaners or similar.

The high-pressure swivel joints have particularly good smooth-running properties, 3 bearings, a robust design and do not lead to pressure losses in the amount of water to be carried out.

Characteristics

  • can be combined with heavy clearing nozzles, e.g. Super and Twister Bully nozzles
  • for skid guided spinning tools, e.g. hydraulic root cutter, type HWA and HWB
  • or the Multi-Power nozzle type MPF for large profiles

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1120330
Anschlussgewinde: 1/2" - 1 1/2" female thread
Anschluss: 1/2" female thread, 3/4" female thread, 1" female thread, 1 1/4" female thread, 1 1/2" female thread
Maße: 110 × 50 × 50 mm
Gewicht: 1.00


Art.-Nr.:
1120331
Anschlussgewinde: 1/2" - 1 1/2" female thread
Anschluss: 1/2" female thread, 3/4" female thread, 1" female thread, 1 1/4" female thread, 1 1/2" female thread
Maße: 115 × 56 × 56 mm
Gewicht: 1.20


Art.-Nr.:
1120334
Anschlussgewinde: 1/2" - 1 1/2" female thread
Anschluss: 1/2" female thread, 3/4" female thread, 1" female thread, 1 1/4" female thread, 1 1/2" female thread
Maße: 120 × 60 × 60 mm
Gewicht: 1.45


Art.-Nr.:
1120336
Anschlussgewinde: 1/2" - 1 1/2" female thread
Anschluss: 1/2" female thread, 3/4" female thread, 1" female thread, 1 1/4" female thread, 1 1/2" female thread
Maße: 130 × 60 × 60 mm
Gewicht: 1.40


Art.-Nr.:
1120337
Anschlussgewinde: 1/2" - 1 1/2" female thread
Anschluss: 1/2" female thread, 3/4" female thread, 1" female thread, 1 1/4" female thread, 1 1/2" female thread
Maße: 140 × 80 × 80 mm
Gewicht: 1.50
