nozzle hanger bundle

nozzle hanger bundle

With the practical “All on One” nozzle hanger with pipe cleaning nozzles, you are well equipped for any cleaning task. With this compact and handy tool, you carry all common nozzles in 1/4″, 1/8″, or 3/8″ – right on your belt. You will never have to fetch the right nozzle during a job again. The hanger provides a convenient solution by keeping all essential nozzle types within reach.

Characteristics

  • practical: The hanger is available with nozzles for 1/8″, 1/4″, or 3/8″, ensuring you have the right nozzle for any situation.
  • various nozzle types: Equipped with chisel nozzles, standard cleaning nozzles, grenade nozzles, and rotating nozzles, this tool offers a wide range of options for different cleaning requirements.
  • mobile and handy: Due to its compact size and lightweight design, the hanger can be easily attached to your belt or pants.
  • time saving: The immediate availability of all necessary nozzles shortens work time and increases efficiency in pipe cleaning.



The 1/8″ nozzle hanger consists of:

  • nozzle hanger ring with carabiner
  • 1/8″ pick nozzle, drilled – for total blockages (from 30 mm)
  • 1/8″ standard nozzle, drilled – for cyclical cleaning (from 30 mm)
  • 1/8″ grenade bomb with steel inserts – for medium deposits (from 40 mm)
  • 1/8″ rotary nozzle drilled – for mud clods, light incrustations, fine roots, and grease deposits (from 30 mm)

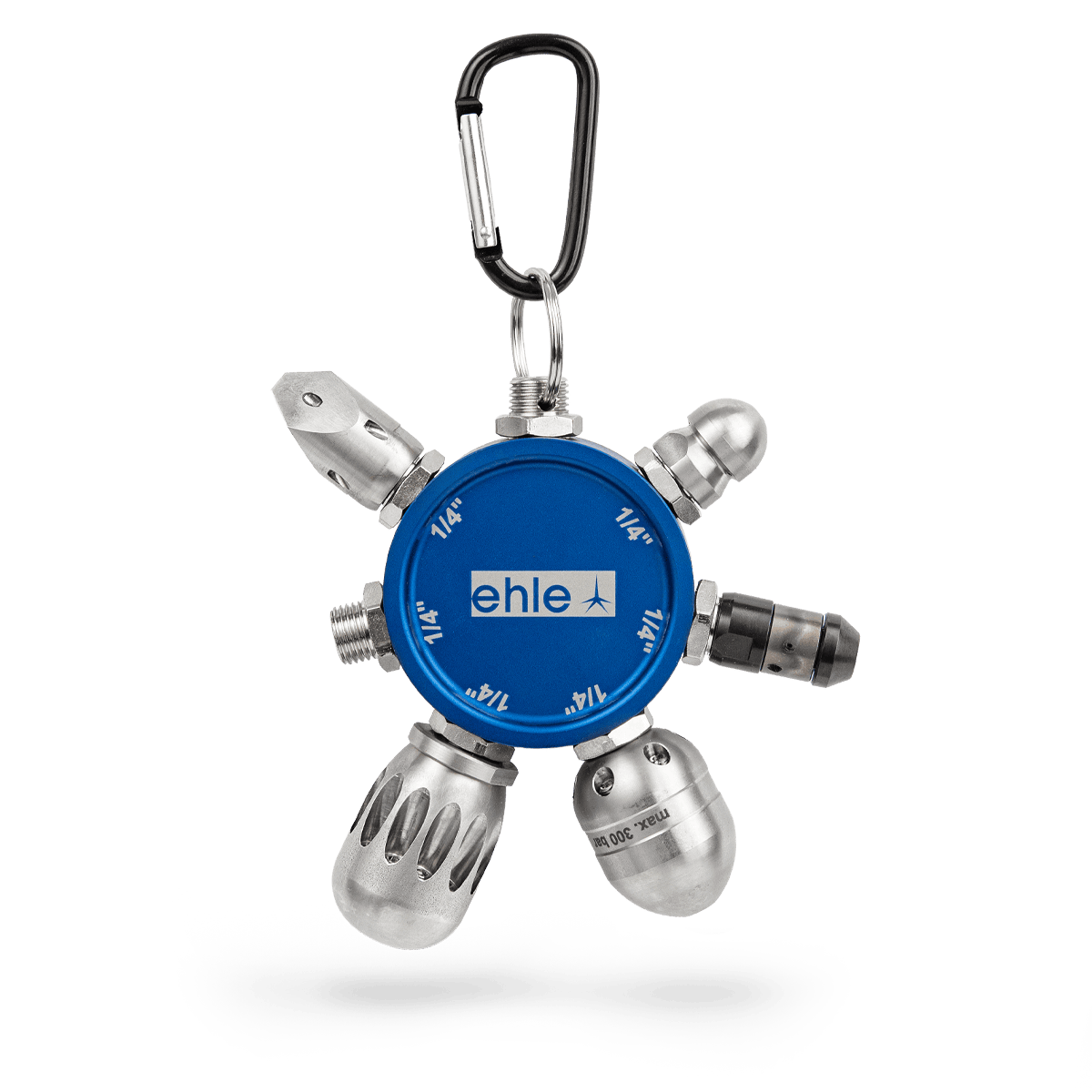

The 1/4″ nozzle hanger consists of:

  • nozzle hanger ring with carabiner
  • 1/4″ pick nozzle, drilled – for total blockages (from 30 mm)
  • 1/4″ standard nozzle, drilled – for cyclical cleaning (from 30 mm)
  • 1/4″ grenade bomb with steel inserts – for medium deposits (from 60 mm)
  • 1/4″ 360º nozzle incl. steel inserts – 360-degree cleaning performance thanks to 12 round jet inserts (from 40 mm)
  • 1/4″ rotary nozzle, drilled – for mud clods, light incrustations, fine roots, and grease deposits (from 30 mm)



The 1/8″ nozzle hanger consists of:

  • nozzle hanger ring with carabiner
  • 3/8″ pick nozzle with steel inserts – for total blockages (from 40 mm)
  • 3/8″ standard nozzle with steel inserts – for cyclical cleaning (from 50 mm)
  • 3/8″ 360º nozzle with steel inserts – 360-degree cleaning performance thanks to 12 round jet inserts (from 40 mm)
  • 3/8″ grenade nozzle with steel inserts – for medium deposits (from 80 mm)
  • 3/8″ pre-jet nozzle with steel inserts – for manual cleaning of shafts, containers, and surfaces
  • 3/8″ rotating nozzle with steel inserts – for mud clods, light incrustations, fine roots, and grease deposits (from 30 mm)

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
80-0001-9918
Ausführung: complete set
Anschluss: 1/8" female thread
Maße: 120 × 120 × 20 mm
Gewicht: 0.4


Art.-Nr.:
80-0001-9914
Ausführung: complete set
Anschluss: 1/4" female thread
Maße: 140 × 140 × 25 mm
Gewicht: 0.6


Art.-Nr.:
80-0001-9938
Ausführung: complete set
Anschluss: 3/8" female thread
Maße: 150 × 150 × 30 mm
Gewicht: 0.7


Support Docs

Datasheet Download

0
Request for quotation
