nozzle case with 1″ nozzles

nozzle case with 1″ nozzles

The nozzle case with 1″ sewer cleaning nozzles is the ideal solution for demanding sewer cleaning applications. It contains all the important nozzles for removing deposits, for thorough standard cleaning, for loosening stubborn blockages and for streak-free 360° cleaning before TV inspections. The right accessories for maintenance and care are of course included – everything is neatly stowed away and ready for use at any time.

Characteristics

  • for use from DN150
  • for standard cleaning and for unblocking blockages and preparing for TV inspections
  • including 1″ pipe cleaning nozzles and accessories for maintenance
  • robust plastic case with hard foam inlay
  • All nozzles are fitted with full ceramic inserts individually tailored to the power of the high-pressure unit

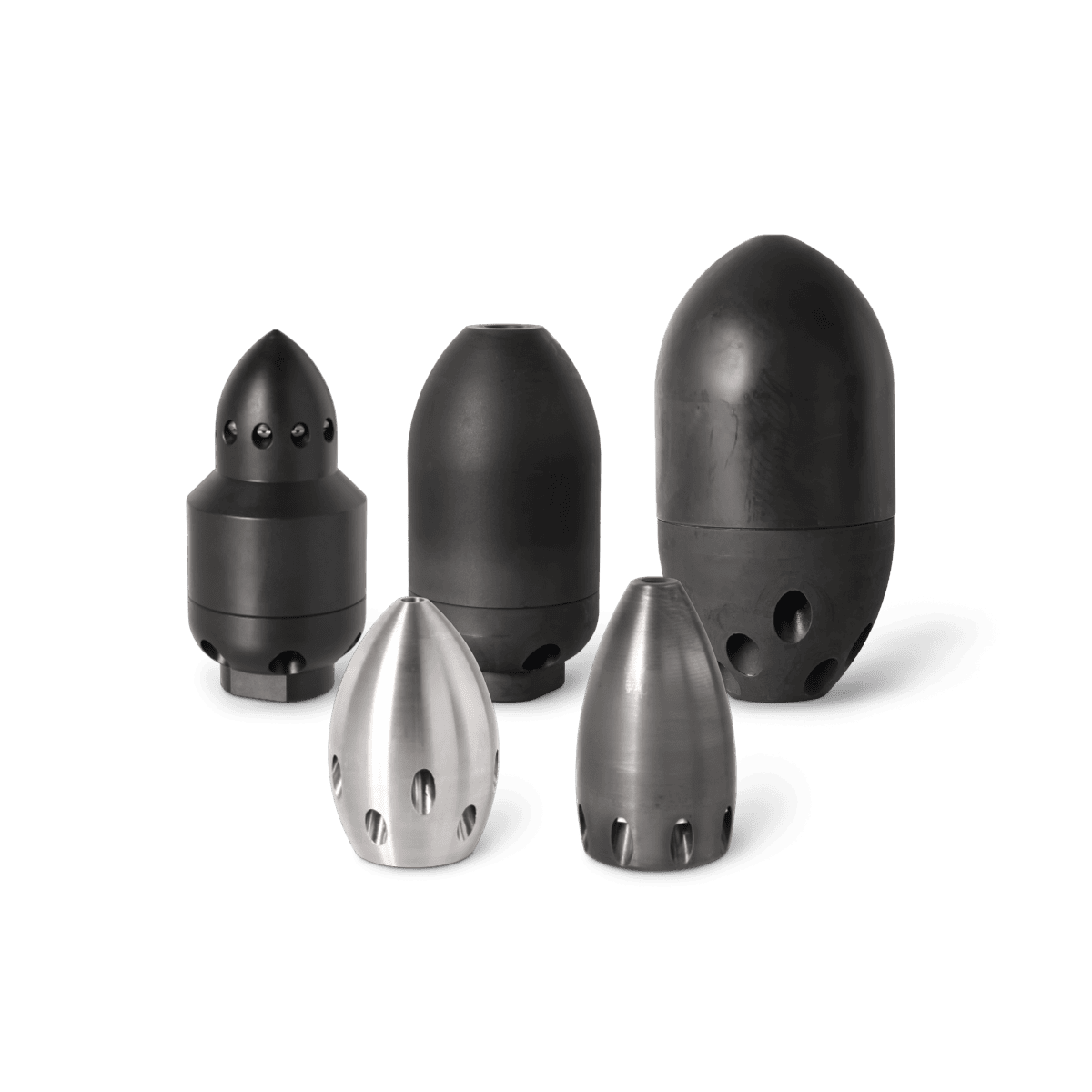

Nozzle case set consists of:

  • 1″ Duo cleaning nozzle VA curved – for cyclical cleaning from DN150
  • 1″ Twister pick nozzle – for total blockages with a rotating front jet
  • 1″ G100 grenade nozzle – for medium deposits and long holds
  • 1″ T100 Trio Bomb nozzle with 3 jet cones – for heavily soiled sewers
  • 1″ Tandem cleaning nozzle 2-4 – for incrustations, grease deposits and for streak-free cleaning before TV inspections
  • Nozzle gauges (0.45 – 3.0 mm)
  • Nozzle cleaning set
  • Assembly spanner for nozzle inserts M6 / M10 / flat jet inserts
  • Flat jet and ceramic inserts for nozzles M6 / M10



Nozzle inserts:

  • In order to optimally match the nozzle to the flushing unit, we require the pump capacity (litres per minute), the working pressure (bar) as well as the length, diameter and material of the high-pressure hose.

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
11002144
Ausführung: complete set
Anschluss: 1" female thread
Einsatz ab: 150 mm and above
Wasserleistung: from 240 lpm
Maße: 494 × 402 × 132 mm
Gewicht: 16.6
