mini bypass pipe stoppers
mini bypass pipe stoppers

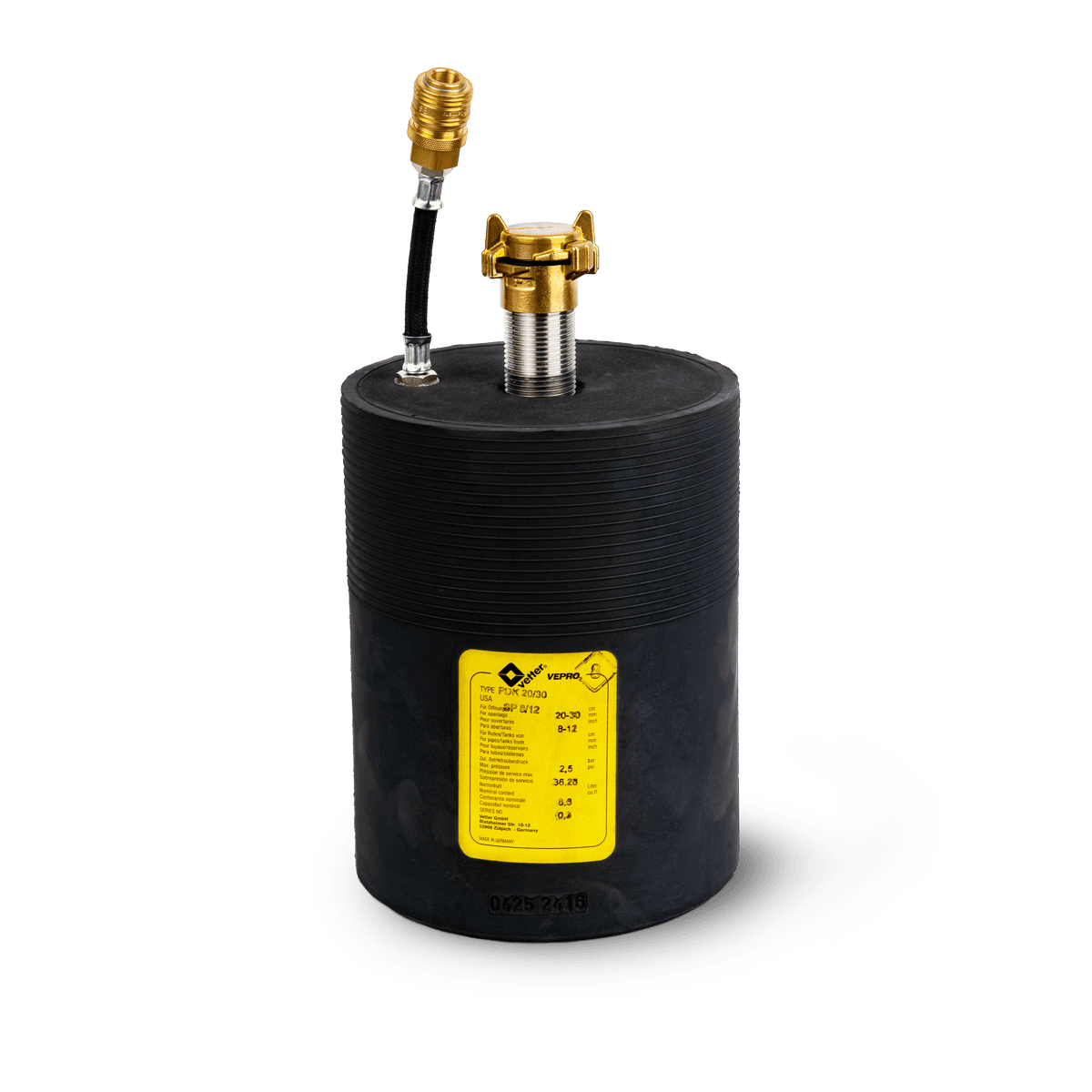

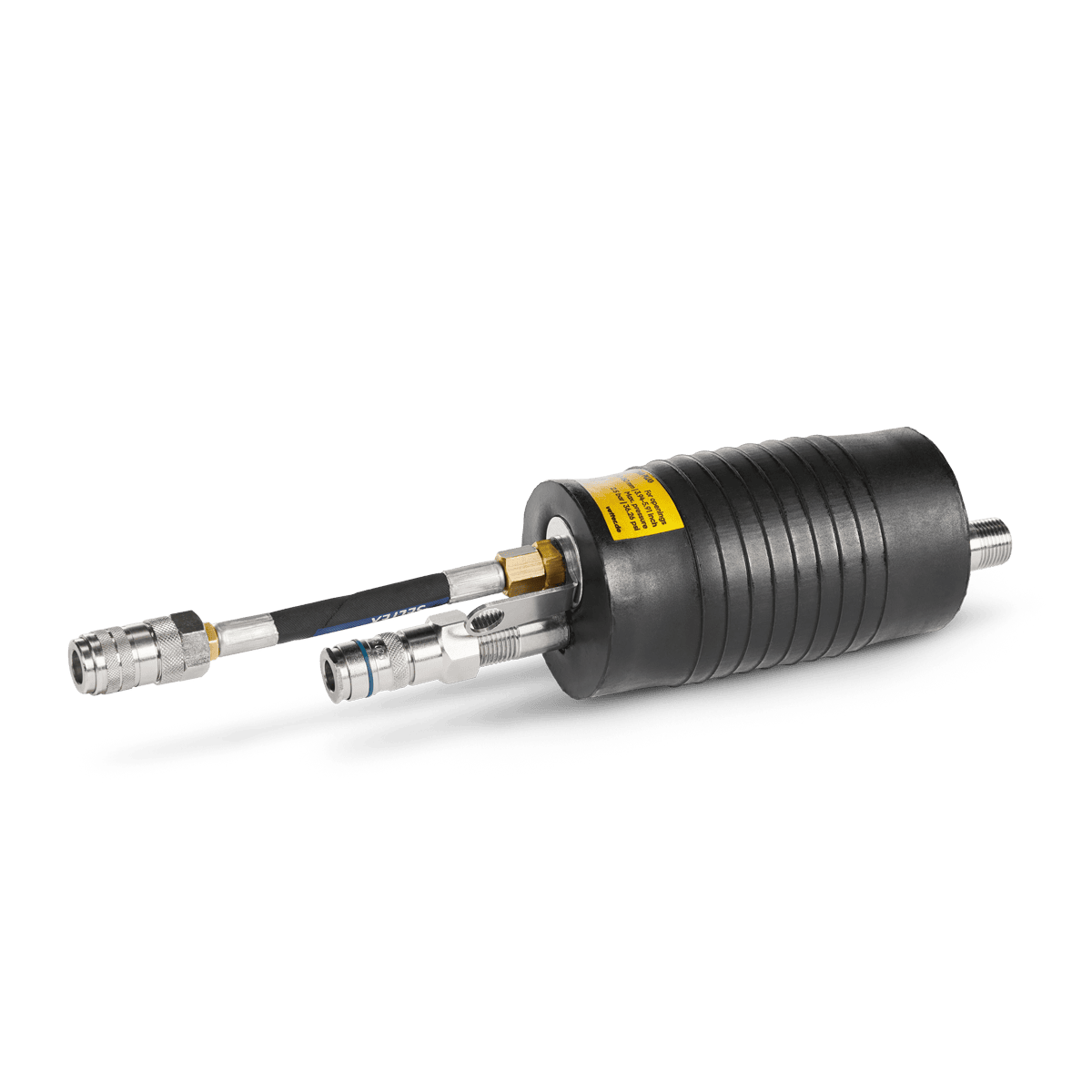

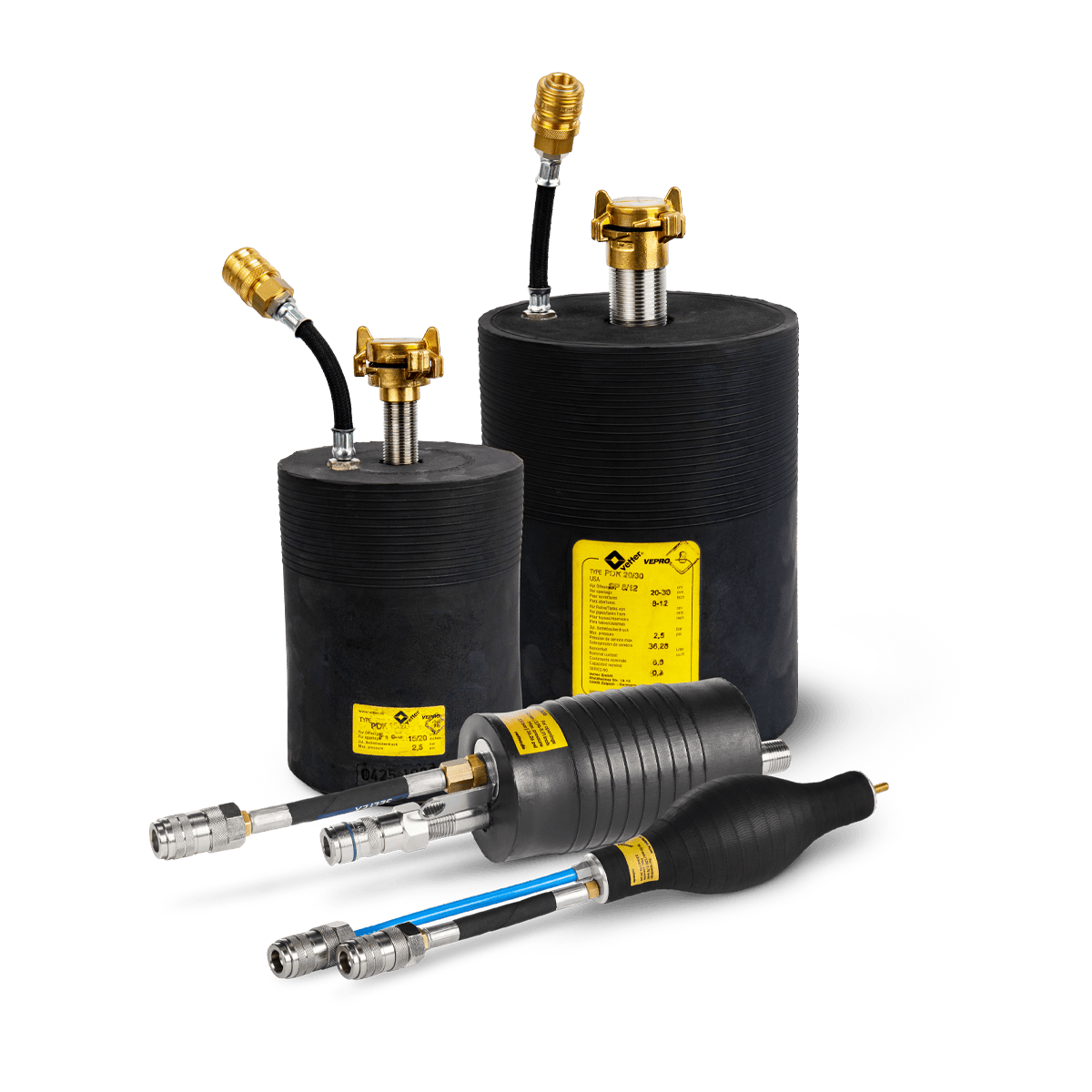

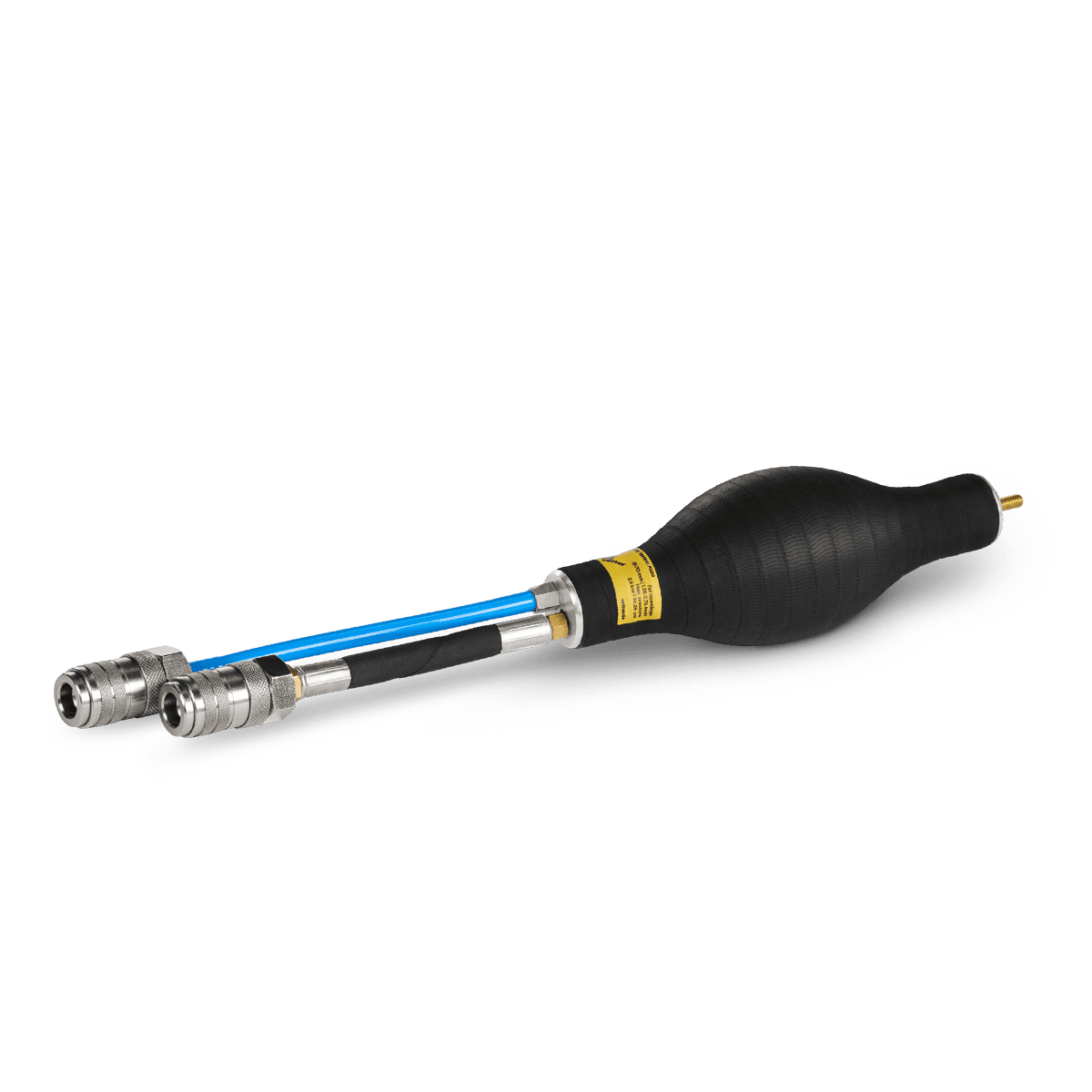

The mini inflatable pipe plugs with bypass are the ideal solution for leak testing, inspections, maintenance and cleaning work on pipes. Thanks to their integrated bypass, they enable secure sealing as well as testing and drainage of the medium – in pipes up to DN 300.
Their compact design makes the pipe closures particularly suitable for tight installation situations, short openings and pipe runs with bends.
Characteristics
- integrated bypass – for testing, sealing or draining pipes up to DN 300
- versatile application – suitable for leak tests, inspections, maintenance and cleaning work
- easy handling even with short openings or before bends
- short design – ideal for house connection pipes and tight installation situations
- better handling thanks to the extension of the filling valve
- high flexibility and bendability for use in pipes with short openings or bends
- high elasticity for reliable sealing of different pipe diameters
- counterpressure up to 1 bar enables versatile testing and sealing applications (counterpressure up to 10 m water column possible)
- easy handling thanks to compact and robust design
- leak tests in accordance with DIN EN 1610 with air or water
- high quality control – each shut-off bladder undergoes testing after production and receives a test seal
- Made in Germany

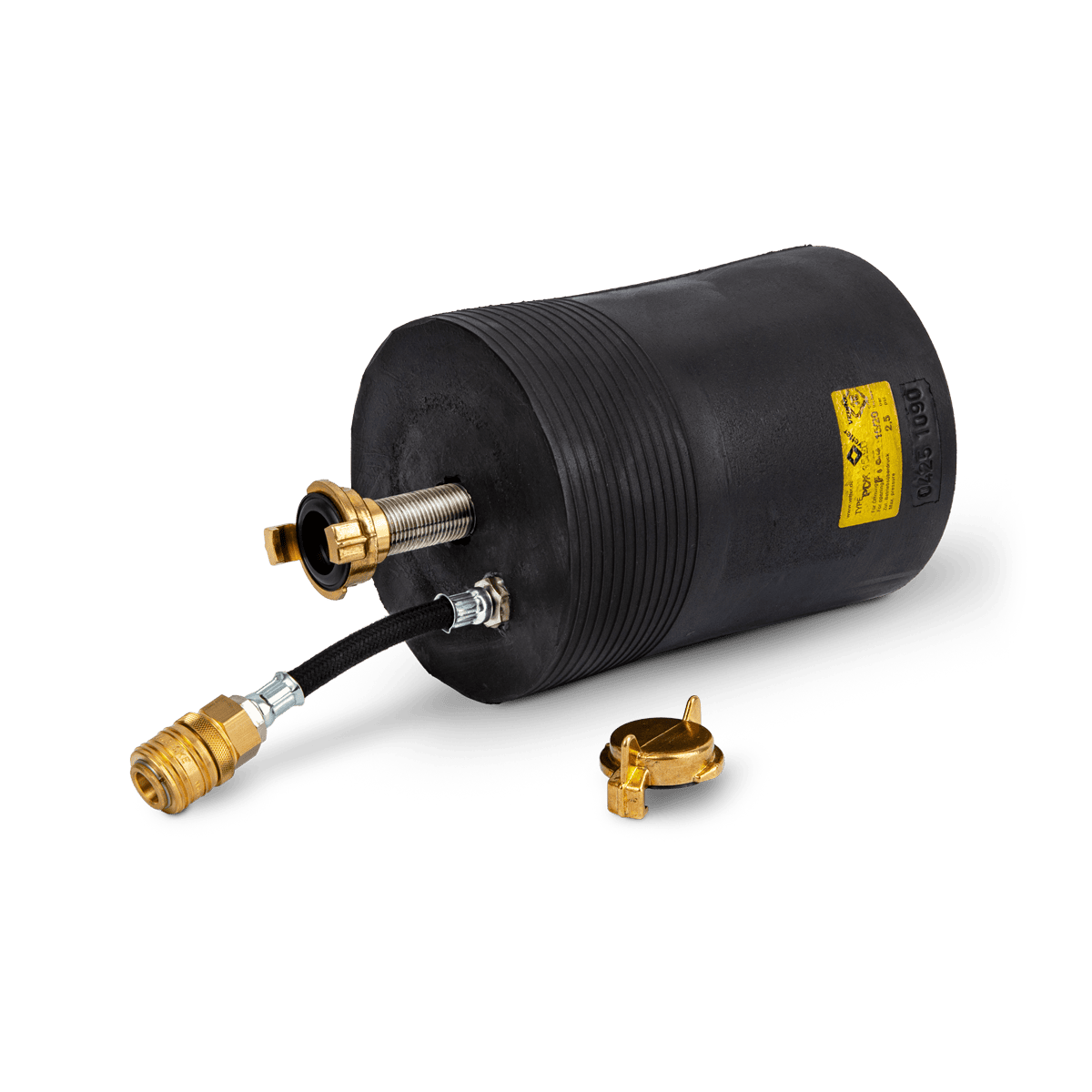

On request, we can also supply the short test pipe caps with a Storz D coupling instead of the GEKA coupling. Simply leave a short message in the information field of your enquiry. For safety reasons, we generally recommend the use of a shoring device or a push-out protection device in accordance with DGUV Information 201-022 (formerly BGI 802).
Ordering Information
Gewicht: 0.40
Gewicht: 0.45
Gewicht: 0.60
Gewicht: 1.50
