Manhole cover hook with slide hammer function

Manhole cover hook with slide hammer function

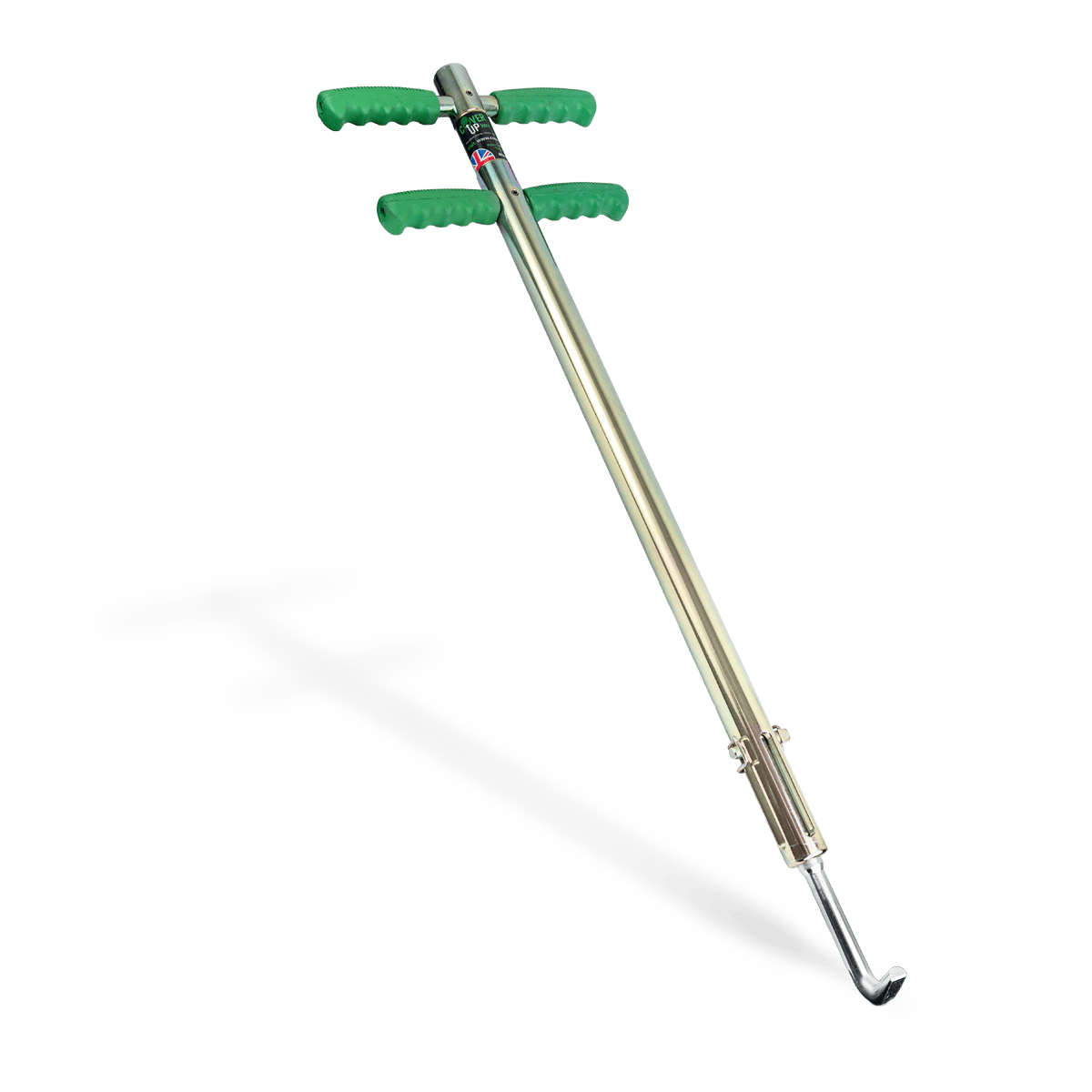

The CoverUp Key cover lifter is the clever solution for opening stuck slide caps, manhole covers and other covers. Thanks to the integrated slide hammer function, a powerful, sudden upward movement is generated that reliably releases even rusted or jammed covers – quickly, gently and without great effort.

The CoverUp Key’s interchangeable hooks and attachments can be used to remove covers from the following areas: Water, waste water, gas, electricity, telecommunications, etc.

Request a quote
CharacteristicsOrdering InformationSupport documents

Characteristics

  • Effort-saving: Why hammer downwards when you can hammer upwards? The sudden upward force of the slide hammer loosens lids with ease.
  • Time-saving: No more time-consuming attempts – access to gullies, hydrants or valves is created in no time at all.
  • Easy on the back: Work can be carried out in an upright position – this is easy on the back and reduces the risk of injury.
  • Flexible use: The interchangeable hooks and attachments (available separately) can be used to open almost all types of covers in the areas of water, waste water, gas, electricity, telecommunications and many more. The hooks can be attached in four directions – this ensures maximum flexibility and more ergonomic working, even in confined spaces.
  • Cost-efficient: One tool – many possibilities. The CoverUp Key replaces numerous special tools and is low-maintenance and durable.



Technical data

  • Handle width: 280 mm
  • Handles: 4 non-slip, soft rubber handles
  • Material: plated steel
  • Dimensions (HxWxD): 800 x 280 x 35 mm
  • Weight: approx. 6.6 kg



Scope of delivery of the set

  • 1× CoverUp Key (cap lifter with slide hammer)
  • 1× Robust transport bag
  • 2× Folding pins to secure the attachments

Note: Hooks and attachments are not included in the scope of delivery and can be put together individually – suitable for every application.

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1130215-001SET
Ausführung: Kit without hooks
Maße: 890 × 320 × 50 mm
Gewicht: 7.50


Art.-Nr.:
1130215-006J08
Ausführung: accessories
Hakentyp: J-Hook pointed Ø10 mm
Maße: 174 × 20 × 20 mm
Gewicht: 0.3


Art.-Nr.:
1130215-017J12
Ausführung: accessories
Hakentyp: J-Hook Ø12 mm
Maße: 174 × 29 × 20 mm
Gewicht: 0.3


Art.-Nr.:
1130215-013J16
Ausführung: accessories
Hakentyp: J-Hook Ø16 mm
Maße: 174 × 40 × 20 mm
Gewicht: 0.3


Art.-Nr.:
1130215-019GLY
Ausführung: accessories
Hakentyp: for gulleys Ø20 mm
Maße: 250 × 75 × 40 mm
Gewicht: 1.0


Art.-Nr.:
1130215-009Ø20
Ausführung: accessories
Hakentyp: oval 21x15 mm
Maße: 160 × 20 × 20 mm
Gewicht: 0.3


Art.-Nr.:
1130215-008Ø30
Ausführung: accessories
Hakentyp: oval 31x15 mm
Maße: 160 × 20 × 31 mm
Gewicht: 0.3


Art.-Nr.:
1130215-003F22
Ausführung: accessories
Hakentyp: T-shaped 22x6x10 mm
Maße: 160 × 20 × 10 mm
Gewicht: 0.3


Art.-Nr.:
1130215-002F23
Ausführung: accessories
Hakentyp: T-shaped 32x6x16mm
Maße: 160 × 32 × 16 mm
Gewicht: 0.3


Art.-Nr.:
1130215-005T10
Ausführung: accessories
Hakentyp: M10 metric thread
Maße: 160 × 20 × 20 mm
Gewicht: 0.3


Art.-Nr.:
1130215-004T12
Ausführung: accessories
Hakentyp: M12 metric thread
Maße: 160 × 20 × 20 mm
Gewicht: 0.3


Art.-Nr.:
1130215-011HYD
Ausführung: accessories
Hakentyp: Key attachment 50x50 mm
Maße: 200 × 50 × 50 mm
Gewicht: 0.5


Art.-Nr.:
1130215-015CLP
Ausführung: accessories
Maße: 40 × 20 × 30 mm
Gewicht: 0.1


Art.-Nr.:
1130215-0001BAG
Ausführung: accessories
Maße: 890 × 320 × 50 mm
Gewicht: 0.8


Support Docs

Datasheet Download
