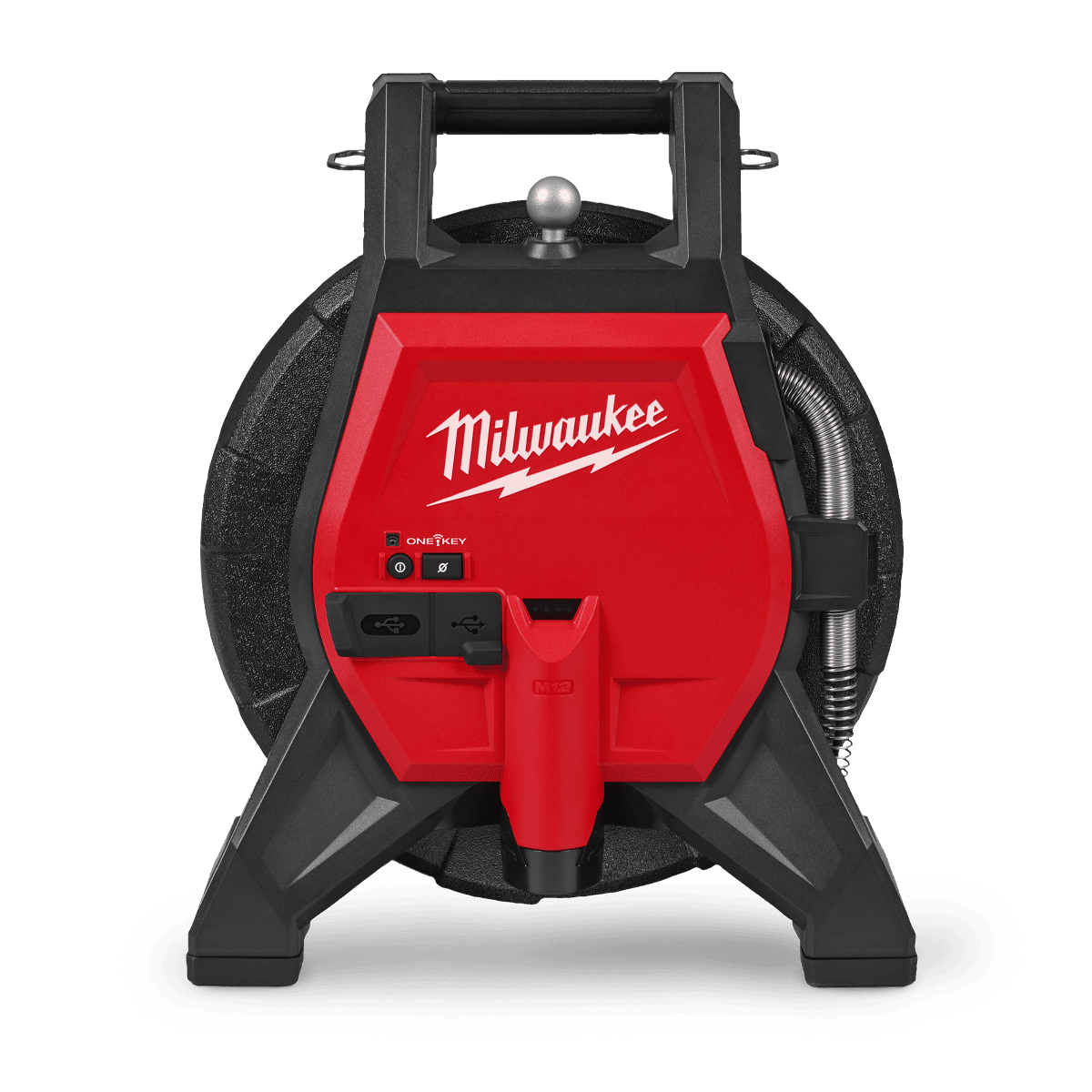

M12 SIC020 Push camera system
M12 SIC020 Push camera system
The M12 SIC020 cordless sewer inspection system was designed for narrow sanitary pipes, traps and bends. It offers optimum illumination in pipes from 32 – 75 mm. The system can connect wirelessly via WiFi to a tablet, smartphone or additional monitor and is controlled via the free Pipeline Inspection app.
The robust 16 mm stainless steel camera head delivers high-resolution HD video, while the flexible 6.5 mm push cable (20 m long) masters multiple 90° bends. With an integrated metre counter, controllable locating probe (512 / 640 Hz) and exchangeable 12V batteries, the inspection system offers maximum flexibility – ideal for emergency service operations in sanitary and kitchen pipes.
Characteristics
- The modular MILWAUKEE® camera system allows users to select the camera drum that best suits their specific requirements on site
- The new self-levelling 16 mm full HD camera guarantees first-class images even in low light conditions
- 20 m long, 6.5 mm ultra-flexible push cable, that runs through multiple 32 mm 90 degree bends
- Integrated smart hub with a USB port for data storage
- Wi-Fi functionality allows the sewer inspection camera to transfer data via USB-A, USB-C and wirelessly
- With its small footprint, the camera can be easily stored in any van and can be used in the tightest of spaces
- Built-in probe for easy localisation: 512 and 640 Hz for use with all common locating devices
- Can be used with M18, M12 Monitor and the Pipeline Inspection App
- Fully enclosed coils for better protection against dirt
- Top handle for easier transport
- Rubber stand for placing the coil on the back
- 12 LEDs for better illumination of drain pipes
- Best LED geometry for optimum illumination of 32 mm – 75 mm drains
Technical specifications
- Camera head: 16 mm, self-levelling
- Cable length: 20 m
- Cable diameter: 6.5 mm
- Line capacity: 32 – 75 mm
- HD resolution: 1920 x 1080 px
- Positioning transmitter: 512 Hz, 640 Hz
- Metre counter: yes
- Protection class: IP67
Scope of delivery
- M12 SIC020 push camera system
- no batteries and charger included
- supplied in a box
App für Smartphone / Tablet über Google Play Store bzw. Apple App Store kostenlos zum Download
Ordering Information
Gewicht: 9.50
Gewicht: 2.4
