KRD vibration nozzles

Removes hard incrustations by vibrational energy! The excentric rotor design creates vibrations which this spinning nozzle transfers on the tube to be cleaned. This way, even the hardest incrustations are removed.

Not suitable for stoneware tubes, since the tube glaze may be become damaged.

Request a quote

Characteristics Ordering Information Support documents

Characteristics

removal of hard deposits, lime, hard incrustations, and clods of construction material
suitable only for PVC, steel or cast iron tubes between DN 60 and DN 300

Ordering Information

Art.-Nr.

Produktbezeichnung

Eigenschaften

LxBxH & Gewicht

Art.-Nr.:

1120090

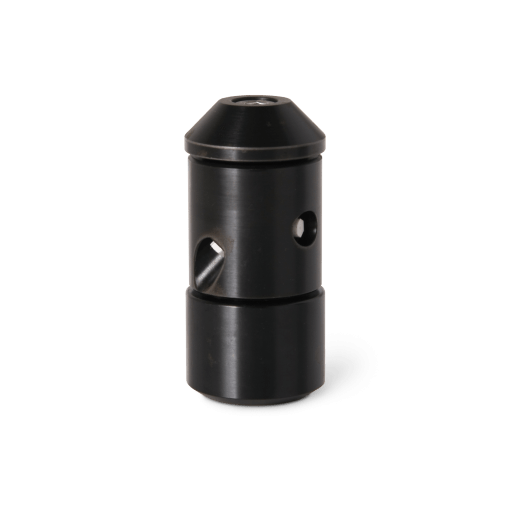

1/2" KRD vibrating nozzle d40

Anschluss: 1/2" female thread

Einsatz ab: 60 - 150 mm

Wasserleistung: max. 95 lpm

Schubdüsen: 3x M6

Schub-Strahlwinkel: 25°

Rotationsdüsen: 3x M6

Rotation-Strahlwinkel: rotation 90° / 43°

Maße: 78 × 40 × 40 mm
Gewicht: 0.60

Art.-Nr.:

1120091

3/4" KRD vibrating nozzle d40

Einsatz ab: 60 - 150 mm

Anschluss: 3/4" female thread

Wasserleistung: max. 95 lpm

Schubdüsen: (-)

Schub-Strahlwinkel: (-)

Rotationsdüsen: 3x M6

Rotation-Strahlwinkel: rotation 90° / 43°

Maße: 78 × 40 × 40 mm
Gewicht: 0.60

Art.-Nr.:

1120092

3/4" KRD vibrating nozzle d60

Anschluss: 3/4" female thread

Einsatz ab: 100 - 300 mm

Wasserleistung: max. 180 llm

Schubdüsen: 4x M6

Schub-Strahlwinkel: 25°

Rotationsdüsen: 3x M6

Rotation-Strahlwinkel: rotation 90° / 43°

Maße: 96 × 60 × 60 mm
Gewicht: 0.60

Support Docs

Datasheet Download
