Hydraulic root cutter HWA
Hydraulic root cutter HWA

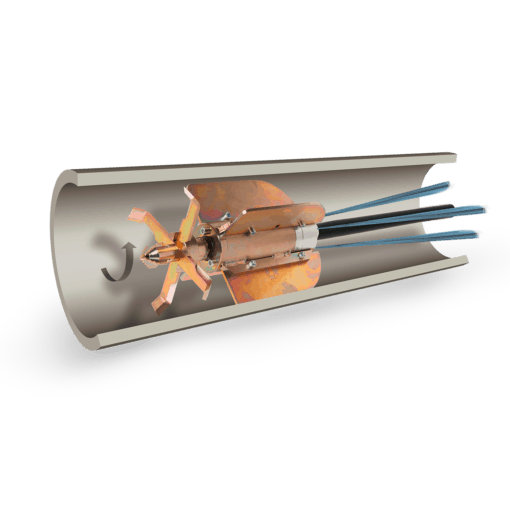

The hydraulic root cutter Hydro-Power HWA type with hydraulic motor generates a high tool force, even with low pump flow rate.
The tools retainer can handle root cutter blades, chains, and tools for mechanical tube cleaning. The special tools are driven by a hydraulic motor. Features are high efficiency, constant torque, rugged and compact construction. The rotation power may reach 1.1 kW. Guide skids are installed to centre the tools. Dimensions are adapted to the tube size.
Characteristics
- removal of nested and small roots in tubes between DN 100 and DN 200 (with accessories up to DN 250)
- short version for building tie-ins
- use even with low pump flow rate
- prepared for chain heads of small roots cutters
- combination with tools for mechanical cleaning possible
Available stock:
- assembly set for DN 100 – DN 200 in rugged transport case
- hydraulic motor in guide basket for DN 100

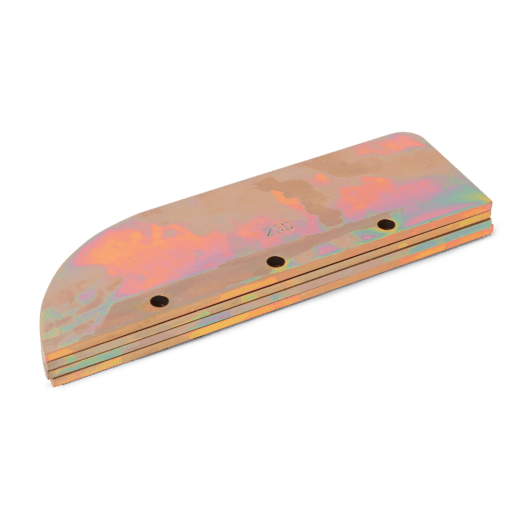

- 1 set guide skids for DN 150 and DN 200 each

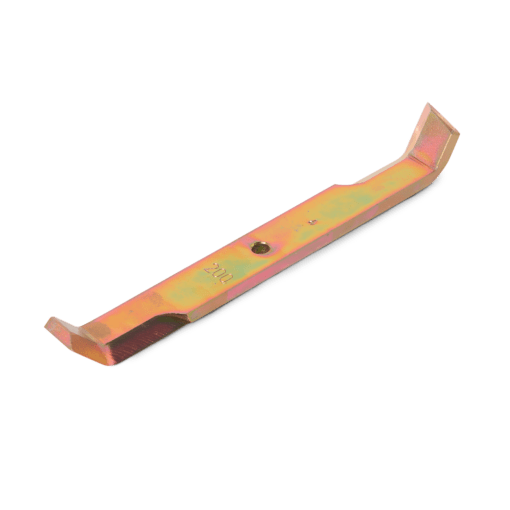

- root cutter blades (DN 100, DN 150, DN 200), cross-blade drill head, service hand crank, maintenance spray, and assembly tools
- Hose connection reduction from 3/4″ to 1/2″ (only for root cutter HWA 1-2)
Optional tools and accessories:

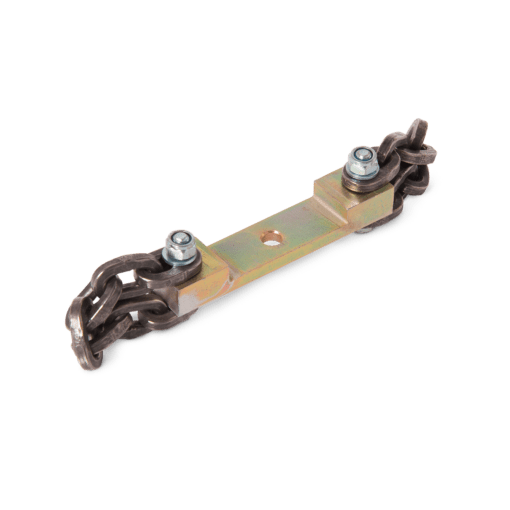

- you may use an optional set of skids and blades in addition to the chain retainers for HWA nozzles for Hydro-Power 1-2 nozzles designed for tubes up to DN 250
- the adaptor for spiral tools can work with mechanical tools for tube cleaning
Ordering instructions:
- as for tubes and sewers between DN 100 and DN 250, please order the root cutter Hydro-Power HWA type
- especially suited for building tie-ins and access to smaller emergency gates, we recommend the Hydro-Power short version
Ordering Information
Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht
Art.-Nr.:
1120251
Anschluss: 1/2" female thread
Einsatz ab: 100 - 200 mm
Wasserleistung: from 55 lpm
Schubdüsen: 4x M6
Schub-Strahlwinkel: 15°
Maße: 150 × 95 × 95 mm
Gewicht: 9.00
Gewicht: 9.00
Art.-Nr.:
1120250
Anschluss: 1/2" female thread, 3/4" female thread
Einsatz ab: 100 - 250 mm
Wasserleistung: from 70 lpm
Schubdüsen: 4x M6
Schub-Strahlwinkel: 30°
Maße: 250 × 95 × 95 mm
Gewicht: 10.50
Gewicht: 10.50
Art.-Nr.:
1120270
Einsatz ab: 100 mm
Maße: 80 × 20 × 20 mm
Gewicht: 0.03
Gewicht: 0.03
Art.-Nr.:
1120271
Einsatz ab: 125 mm
Maße: 100 × 20 × 30 mm
Gewicht: 0.04
Gewicht: 0.04
Art.-Nr.:
1120272
Einsatz ab: 150 mm
Maße: 120 × 20 × 25 mm
Gewicht: 0.05
Gewicht: 0.05
Art.-Nr.:
1120274
Einsatz ab: 200 mm
Maße: 175 × 20 × 25 mm
Gewicht: 0.07
Gewicht: 0.07
Art.-Nr.:
1120275
Einsatz ab: 250 mm
Maße: 210 × 20 × 25 mm
Gewicht: 0.09
Gewicht: 0.09
Art.-Nr.:
1120263
Einsatz ab: 100 - 150 mm
Maße: 150 × 20 × 40 mm
Gewicht: 0.15
Gewicht: 0.15
Art.-Nr.:
1120265
Einsatz ab: 200 - 250 mm
Maße: 180 × 20 × 40 mm
Gewicht: 0.15
Gewicht: 0.15
Art.-Nr.:
1120209
Maße: 1000 × 10 × 10 mm
Gewicht: 0.40
Gewicht: 0.40
Art.-Nr.:
1120255
Einsatz ab: 125 mm
Maße: 200 × 5 × 28 mm
Gewicht: 0.48
Gewicht: 0.48
Art.-Nr.:
1120262
Einsatz ab: 250 mm
Maße: 200 × 5 × 80 mm
Gewicht: 0.60
Gewicht: 0.60
Art.-Nr.:
1120282
Maße: 80 × 30 × 30 mm
Gewicht: 0.10
Gewicht: 0.10
Art.-Nr.:
1120280
Spiraltyp: 22 mm
Maße: 62 × 30 × 30 mm
Gewicht: 0.15
Gewicht: 0.15
Art.-Nr.:
1120281
Spiraltyp: 32 mm
Maße: 70 × 30 × 30 mm
Gewicht: 0.18
Gewicht: 0.18
