Fall Arrest Recovery Devices & Winches

Fall Arrest Recovery Devices & Winches

IKAR HRA Fall Arrest Recovery Blocks in Aluminium Housing, with stainless steel Cable. Lifeline Fall arrest device with rescue lifting and lowering facility. Additionally equipped with a recovery mechanism operated by a device mounted handle. Thus, after an arrested fall, or if the user becomes incapacitated at the bottom of a shaft.

The recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety. Therefore, the HRA can be anchored directly to a suitable anchorage point via the attachment handle or alternatively can be mounted on a rescue tripod. The HRA device is not suitable for use over a leading edge.

Request a quote

Characteristics Ordering Information Support documents

Characteristics

EN360
Aluminium housing, with a stainless steel cable lifeline
With release pin and two-way winding handle, to engage rescue/recovery mode
Fixed handle anchor attachment point
Attachment/connection handle or can be fitted to a davit or tripod via a bracket
Aluminium double action hook on end of lifeline to EN362

Ordering Information

Art.-Nr.

Produktbezeichnung

Eigenschaften

LxBxH & Gewicht

Art.-Nr.:

1140040-SN

IKAR Fall Arrest Block - 12 m

Länge: 12 m steel cable

Maße: 450 × 195 × 180 mm
Gewicht: 7.00

Art.-Nr.:

1140054-SN

IKAR Fall Arrest Block - 18 m

Länge: 18 m steel cable

Maße: 570 × 240 × 200 mm
Gewicht: 11.5

Art.-Nr.:

1140044-SN

IKAR Fall Arrest Block - 24 m

Länge: 24 m steel cable

Maße: 630 × 275 × 220 mm
Gewicht: 16.0

Art.-Nr.:

1140048-SN

IKAR Fall Arrest Block - 30 m

Länge: 30 m steel cable

Maße: 640 × 315 × 230 mm
Gewicht: 21.0

Art.-Nr.:

1140041-SN

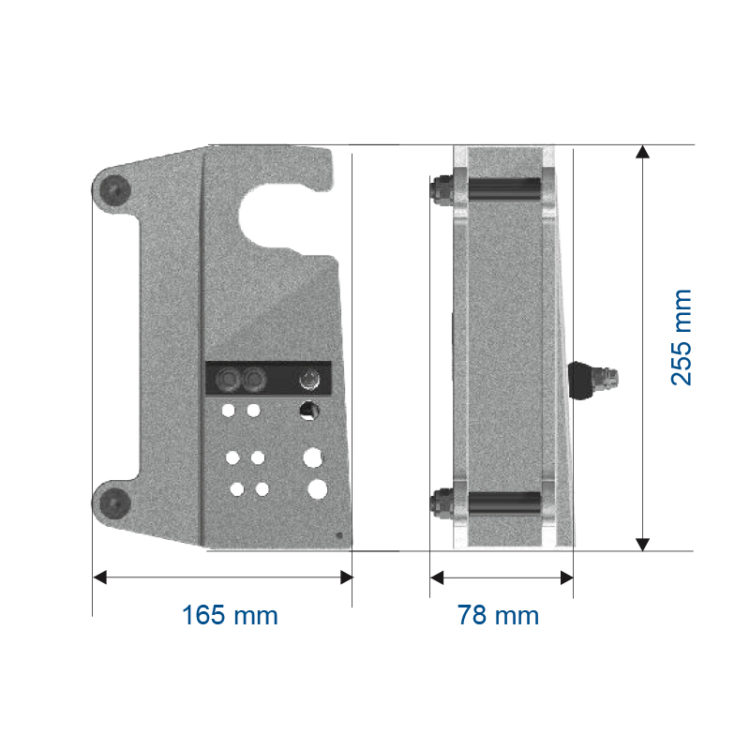

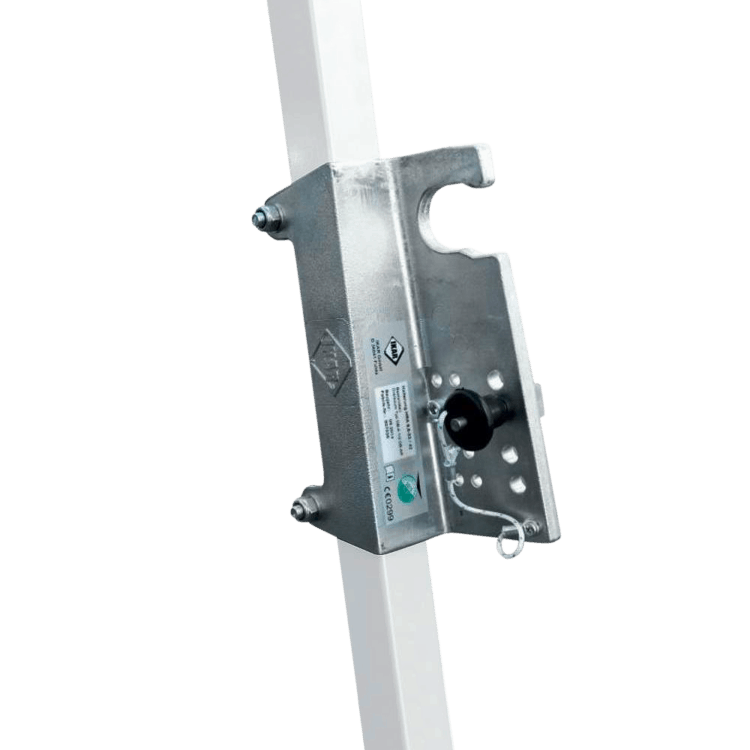

holder for Fall Arrest Block

Ausführung: accessories

Maße: 255 × 165 × 78 mm
Gewicht: 1.80

Support Docs

Datasheet Download
