Expanding-Cutter

Expanding-Cutter

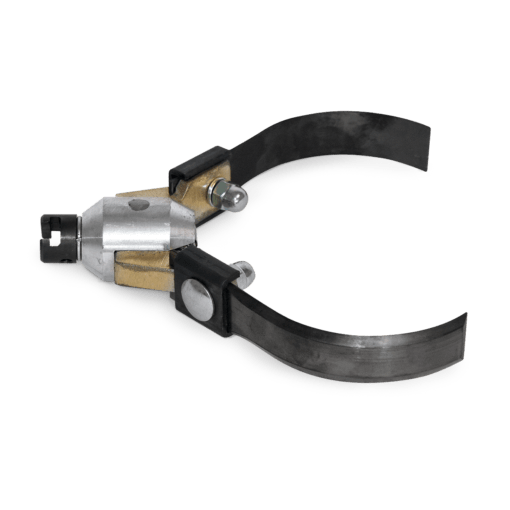

The Expanding-Cutter is a sophisticated special tool for heavy scraping / cutting / peeling operations. The spring mechanism adjusts the tool edges exactly to the drain’s inner diameter to be cleared. This means, the complete removal of hard deposits, incrustations, and root fibres is not a problem.

Request a quote

Characteristics Ordering Information Support documents

Characteristics

Spring-mounted cutting edges adapt to the pipe wall
changeable cutting blades

Ordering Information

Art.-Nr.

Produktbezeichnung

Eigenschaften

LxBxH & Gewicht

Art.-Nr.:

14222250

Expanding Cutter 100/22

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 120 × 100 × 40 mm
Gewicht: 0.60

Art.-Nr.:

14222251

Expanding Cutter 125/22

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 120 × 125 × 40 mm
Gewicht: 0.61

Art.-Nr.:

14222252

Expanding Cutter 150/22

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 120 × 150 × 40 mm
Gewicht: 0.62

Art.-Nr.:

14222253

Expanding Cutter 200/22

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 120 × 200 × 40 mm
Gewicht: 0.63

Art.-Nr.:

14232240

Expanding Cutter 100/32

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 120 × 100 × 40 mm
Gewicht: 0.65

Art.-Nr.:

14232241

Expanding Cutter 125/32

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 120 × 125 × 40 mm
Gewicht: 0.66

Art.-Nr.:

14232242

Expanding Cutter 150/32

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 120 × 150 × 40 mm
Gewicht: 0.66

Art.-Nr.:

14232243

Expanding Cutter 200/32

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 120 × 200 × 40 mm
Gewicht: 0.67

Art.-Nr.:

04222250

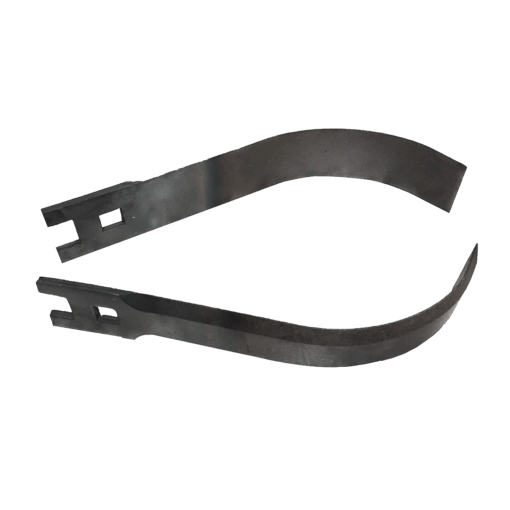

Replacement Cutter Set 100

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 60 × 40 × 25 mm
Gewicht: 0.01

Art.-Nr.:

04222251

Replacement Cutter Set 125

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 70 × 40 × 25 mm
Gewicht: 0.02

Art.-Nr.:

04222252

Replacement Cutter Set 150

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 80 × 40 × 25 mm
Gewicht: 0.04

Art.-Nr.:

04222253

Replacement Cutter Set 200

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 120 × 40 × 25 mm
Gewicht: 0.05

Art.-Nr.:

04222259

Replacement spring

Spiraltyp: 22 mm, 32 mm

Anwendung: medium deposits, roots

Maße: 70 × 12 × 12 mm
Gewicht: 0.01
