CO2 pressure kit
CO2 pressure kit
Everything you need to pressurize your camera system. Pressurization is safe, fast and easy. The desired pressure can be easily set on the pressure gauge via the pressure reducer.

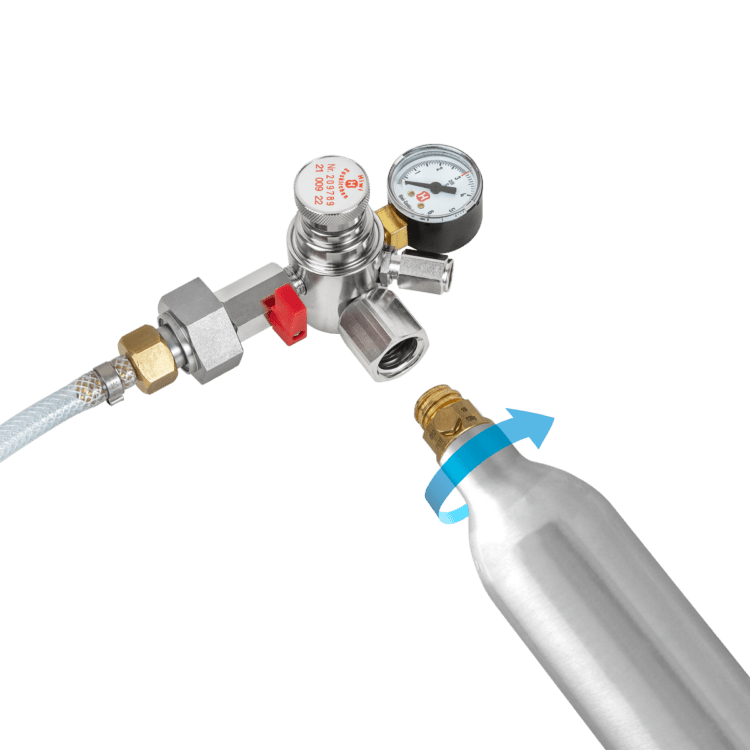

Our pressure filling system works with standard water bubbler CO2 bottles the replacement bottles can be purchased anywhere in retail stores.
Attention: Not suitable for systems with ATEX certification! Please use our nitrogen filling unit.
Characteristics
- for filling inspection systems of various manufacturers
- approx. 60 bar operating pressure
- 425g aluminum bottle refillable with ACME valve connection

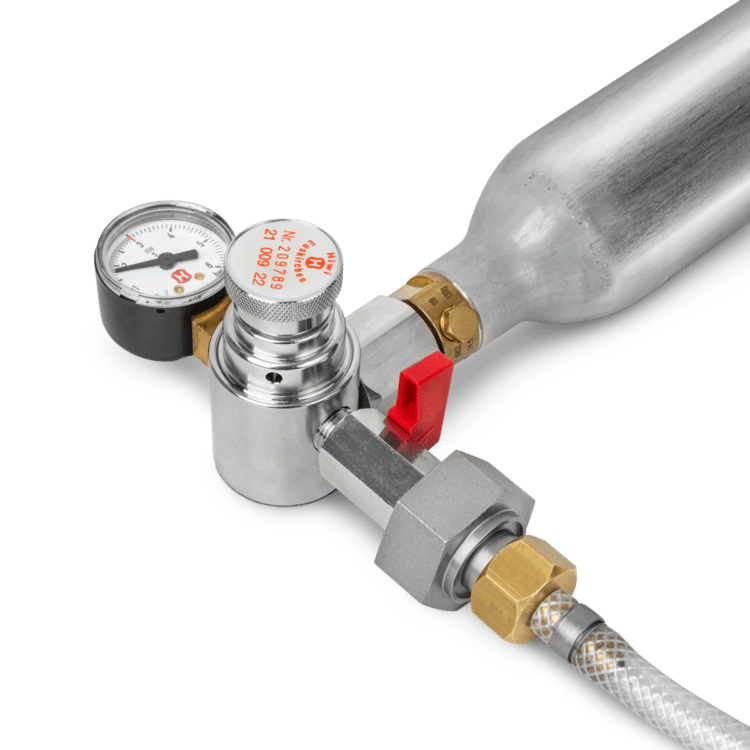

Complete set consists of:
- 1x 425 g CO2 bottle (approx. 60 bar)
- 1x pressure reducer with manometer
- 0,5 m filling hose with valve connection
- Transport case – (WxHxD) 450 x 360 x 140 mm
Ordering Information
Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht
Art.-Nr.:
S19911128
Anwendung: Manhole inspektion system, crawler system, Push rod coiler
Ausführung: complete set
Maße: 230 × 120 × 420 mm
Gewicht: 2.20
