cable reducer / extension adapters

By using cable reducer / extension adapters it is possible to couple spirals of a certain size with tools of another type.

Two variants available:

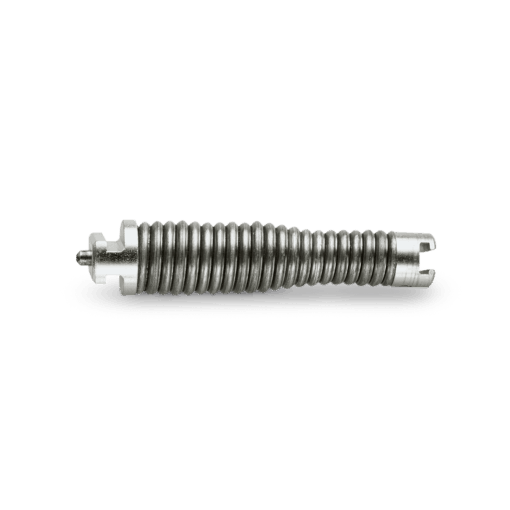

a flexible adapter spiral with narrow winding

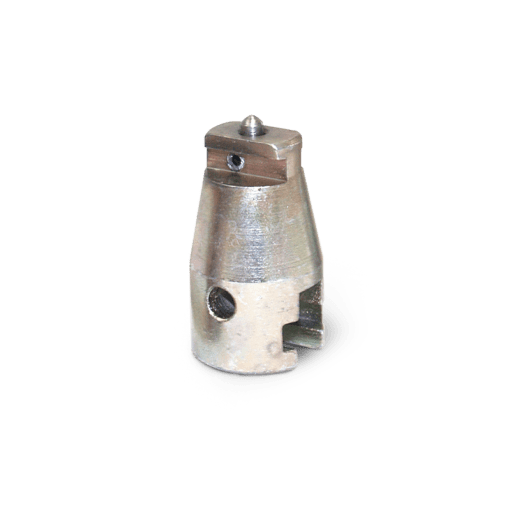

a short adapter piece

Request a quote

Characteristics Ordering Information Support documents

Characteristics

very robust design for optimum power transmission
female/male connection

Ordering Information

Art.-Nr.

Produktbezeichnung

Eigenschaften

LxBxH & Gewicht

Art.-Nr.:

14216023

Cable extension flexadapter - Ø 16 to 22 mm

Spiraltyp: 16 mm, 22 mm

Anschluss: male / female

Maße: 140 × 22 × 22 mm
Gewicht: 0.25

Art.-Nr.:

14222125

Cable reduction flexadapter - Ø 22 to 16 mm

Spiraltyp: 16 mm, 22 mm

Anschluss: male / female

Maße: 140 × 22 × 22 mm
Gewicht: 0.25

Art.-Nr.:

14216024

Cable extension adapter - Ø 16 to 22 mm

Spiraltyp: 16 mm, 22 mm

Anschluss: male / female

Maße: 40 × 22 × 22 mm
Gewicht: 0.15

Art.-Nr.:

14222123

Cable reduction adapter - Ø 22 to 16 mm

Spiraltyp: 22 mm, 32 mm

Anschluss: male / female

Maße: 45 × 32 × 32 mm
Gewicht: 0.20

Art.-Nr.:

14222126

Cable extension adapter - Ø 22 to 32 mm

Spiraltyp: 22 mm, 32 mm

Anschluss: male / female

Maße: 45 × 32 × 32 mm
Gewicht: 0.20

Art.-Nr.:

14232125

Cable reduction adapter - Ø 32 to 22 mm

Spiraltyp: 22 mm, 32 mm

Anschluss: male / female

Maße: 45 × 32 × 32 mm
Gewicht: 0.20
