Bypass Bags
Bypass Bags

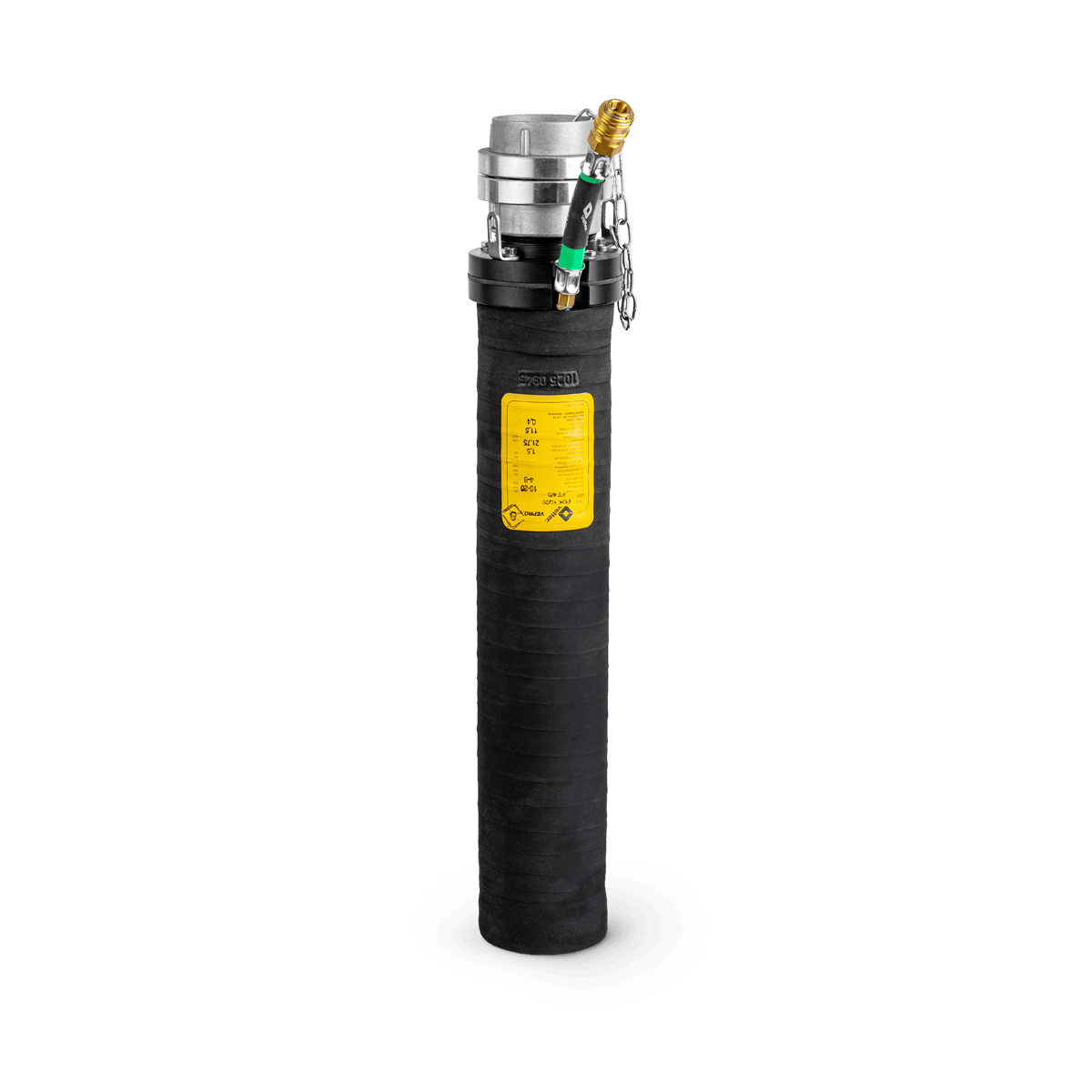

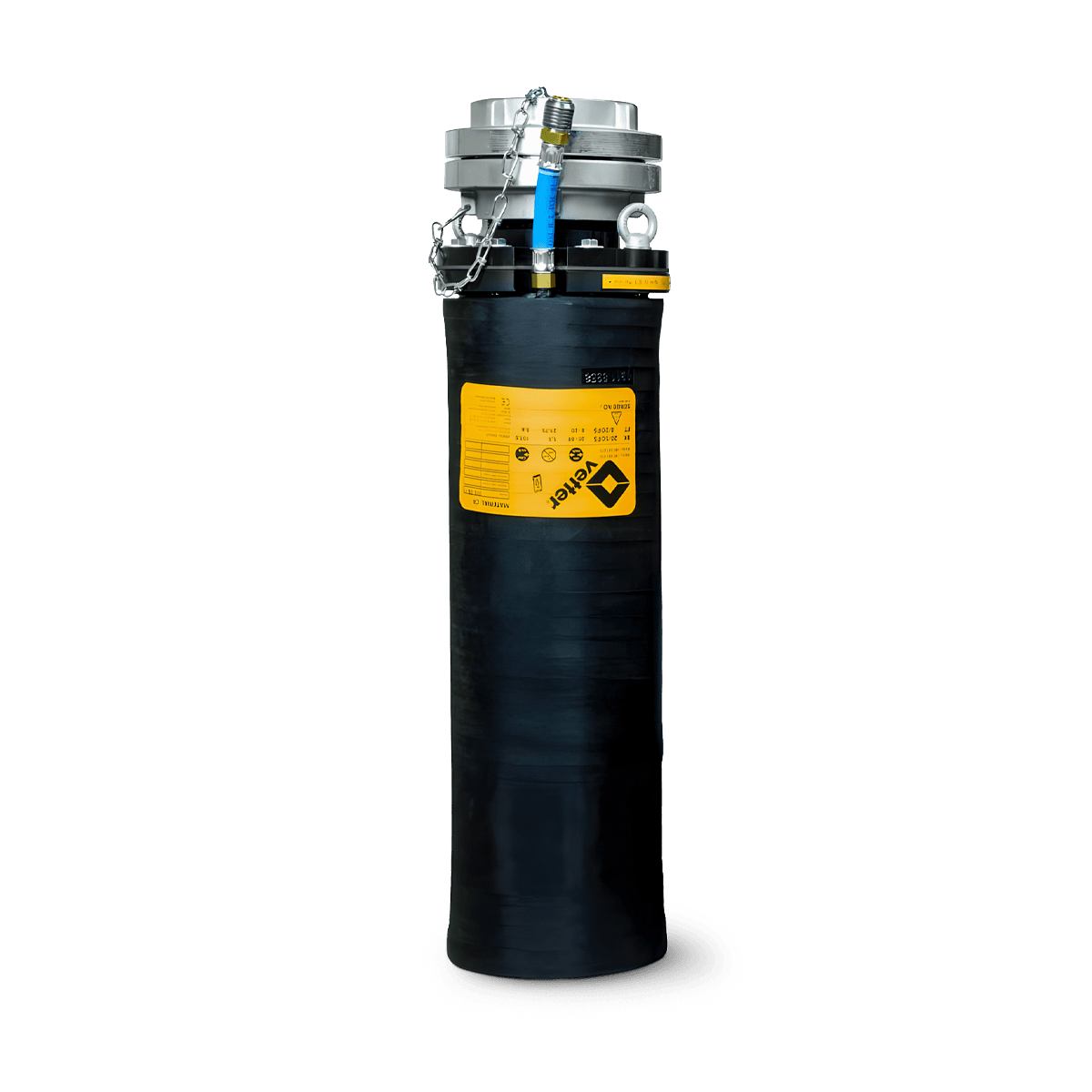

Vetter bypass sealing bags have been specially developed to drain large quantities of water in a controlled manner and to divert wastewater during repair or maintenance work. Thanks to their particularly large passage opening, they enable efficient bypass operation.

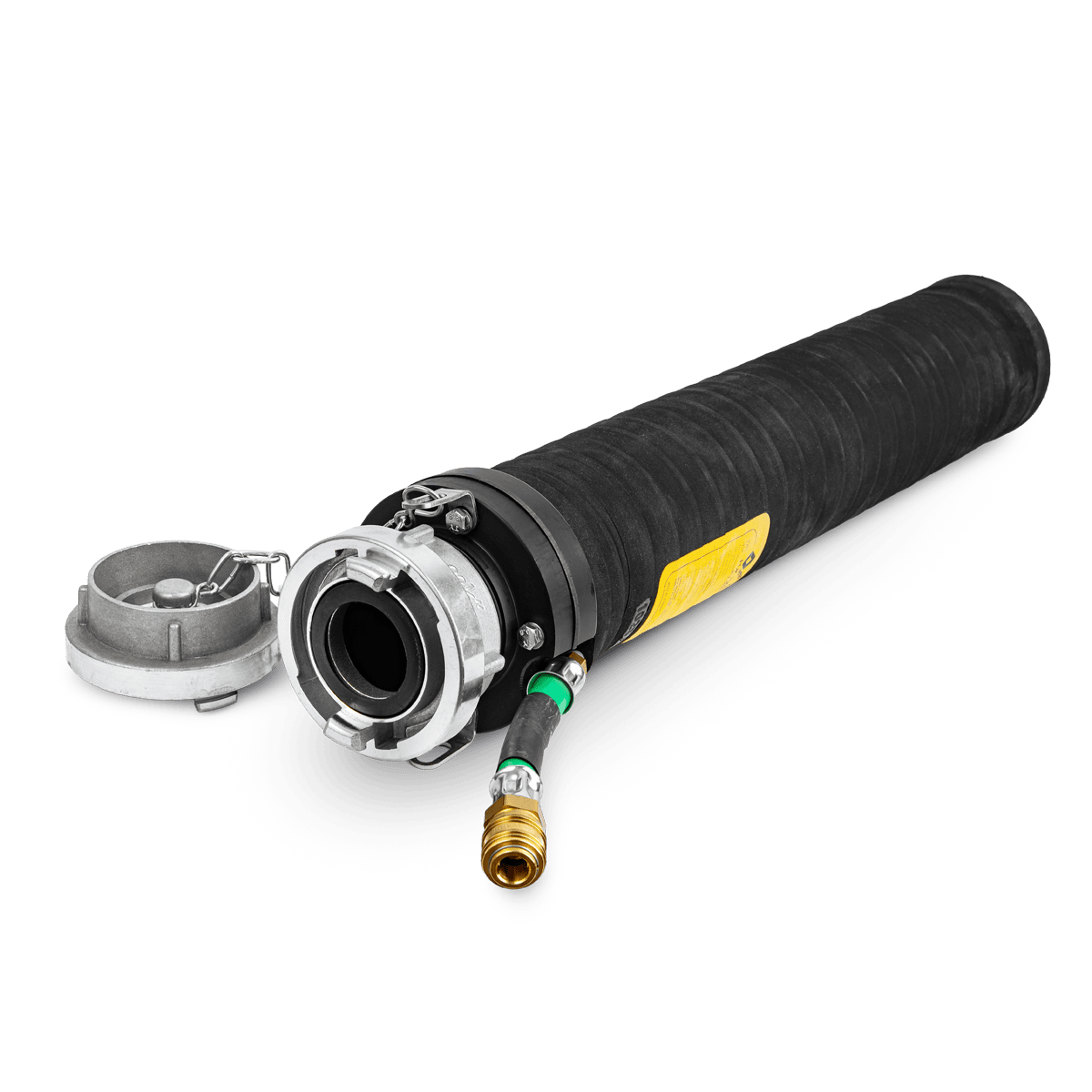

The replaceable sealing cushion sits on a lightweight PE core, which makes the shut-off bladder significantly lighter and easier to handle than variants with a steel core. We supply the bypass sealing cushions with Storz couplings as standard.
Characteristics

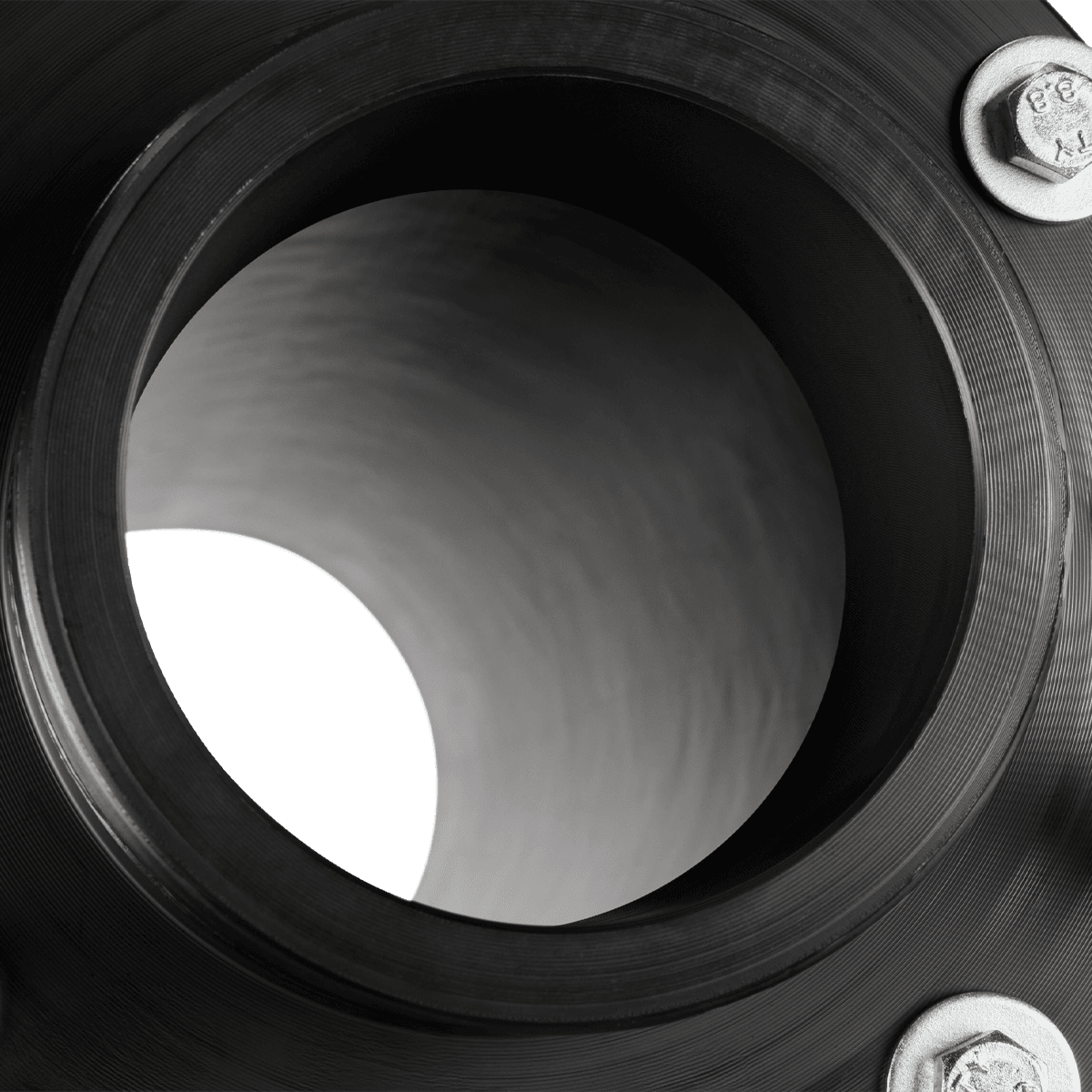

- large passage opening for high flow rates
- ideal for draining and diverting wastewater during repairs
- replaceable sealing cushion on a lightweight PE core
- significantly lighter than variants with a steel core

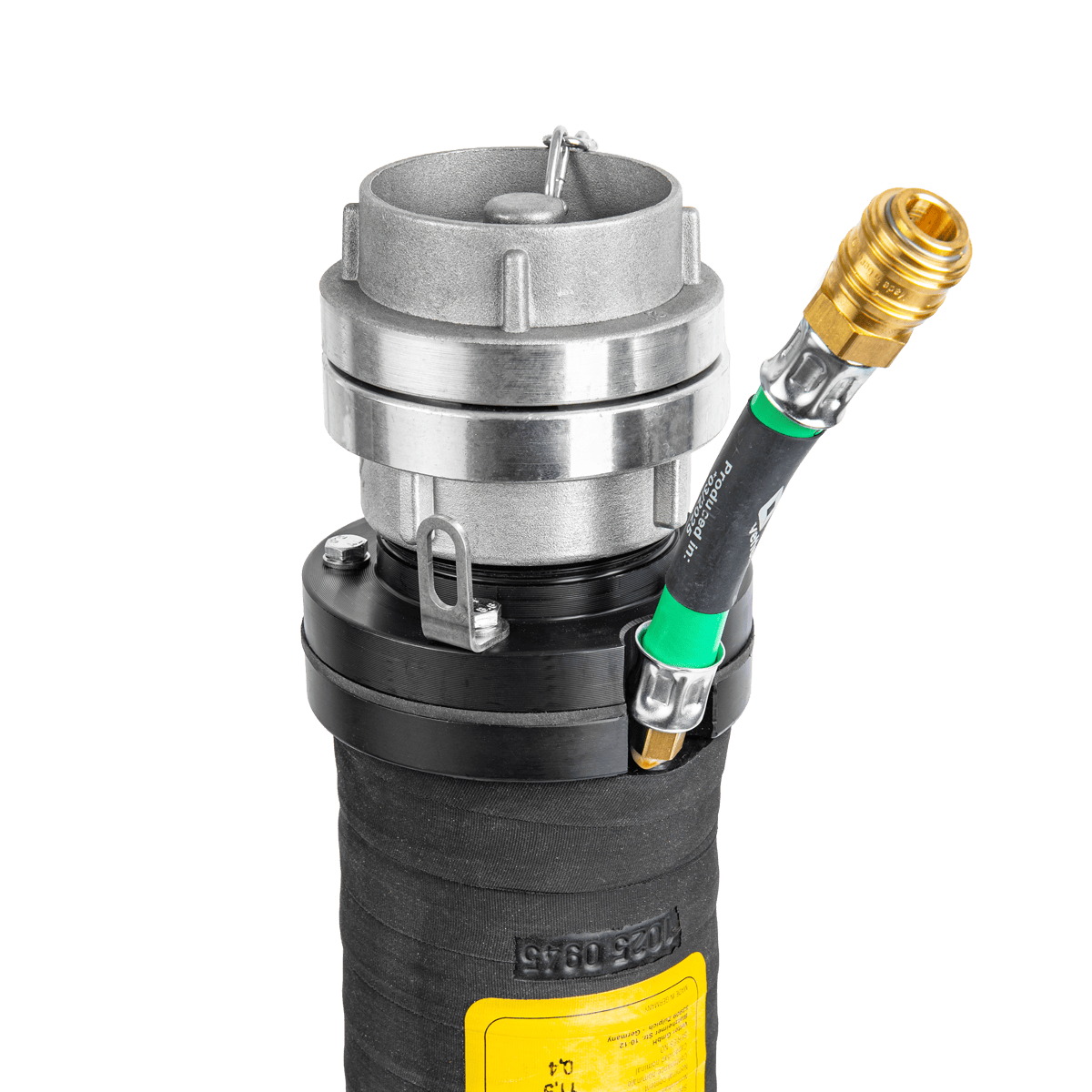

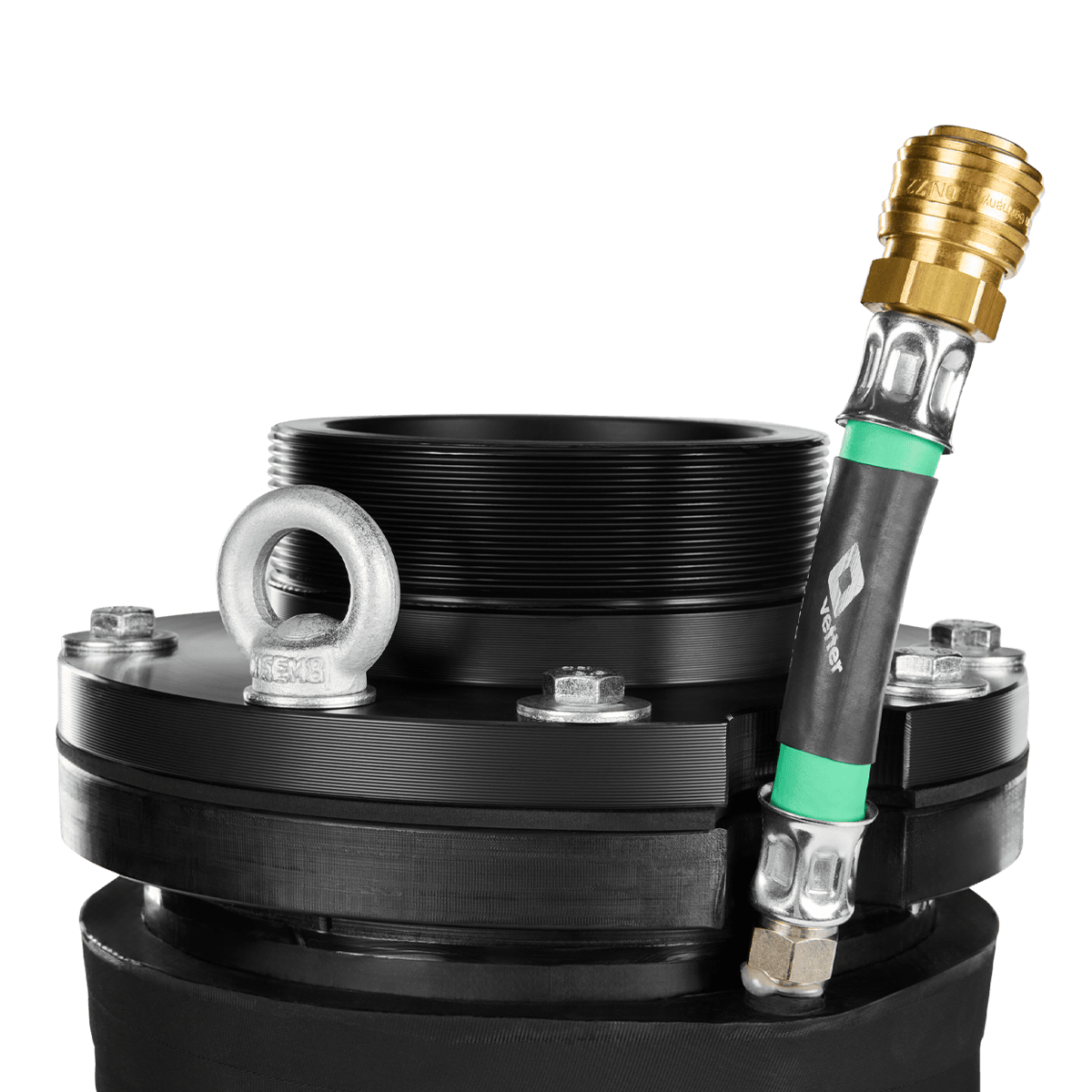

- equipped with Storz couplings as standard
- easy handling and quick deployment
- robust, durable construction for demanding applications
- high quality control – each shut-off bladder undergoes testing after manufacture and receives a test seal
- made in Germany
For safety reasons, we generally recommend the use of a shoring device or a push-out protection device in accordance with DGUV Information 201-022 (formerly BGI 802).
Ordering Information
Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht
Art.-Nr.:
V1481004401
Arbeitsbereich: 100 - 200 mm
Durchgang: 2,5" Storz-C
Zylinderlänge: 485 mm
Betriebsüberdruck: 1.5 bar ( 21.8 psi)
max. Gegendruck: 0.5 bar (7.25 psi)
Maße: 635 × 97 × 97 mm
Gewicht: 2.20
Gewicht: 2.20
Art.-Nr.:
V1481005001
Arbeitsbereich: 200 - 500 mm
Durchgang: 4" Storz-A
Zylinderlänge: 550 mm
Betriebsüberdruck: 1.5 bar ( 21.8 psi)
max. Gegendruck: 0.5 bar (7.25 psi)
Maße: 700 × 195 × 195 mm
Gewicht: 7.00
Gewicht: 7.00
Art.-Nr.:
V1481008000
Arbeitsbereich: 500 - 1200 mm
Durchgang: 4" Storz-A
Zylinderlänge: 940 mm
Betriebsüberdruck: 1.5 bar ( 21.8 psi)
max. Gegendruck: 0.5 bar (7.25 psi)
Maße: 1070 × 450 × 450 mm
Gewicht: 36.8
Gewicht: 36.8
