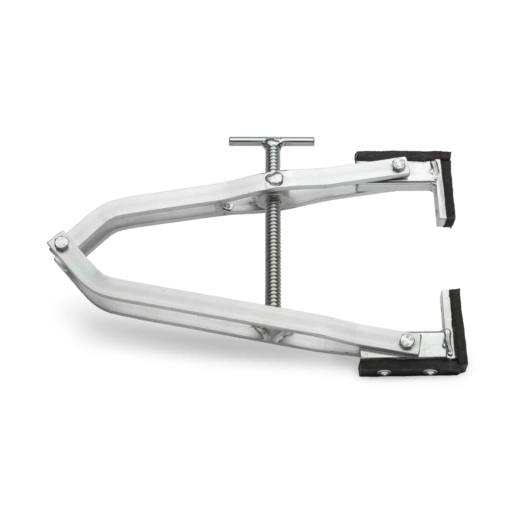

Support for pipe stopper

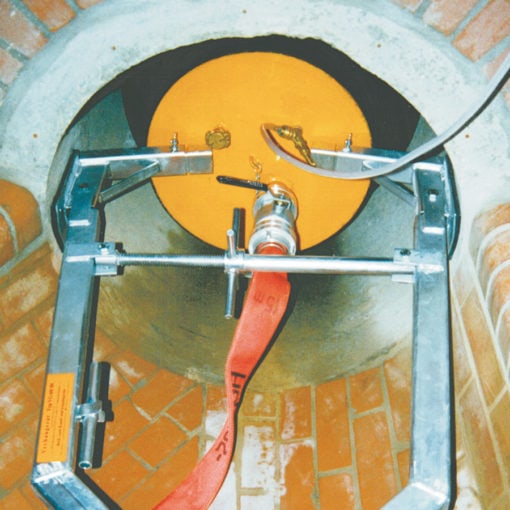

Our supports are a simple but safe solution to ensure that pipe plugs and pipe inspection units cannot be pushed out. Contrary to the conventional timberwork, whose installation is expensive and time consuming, they can be used quickly and as often as required. Thanks to the special rubber coatings, even slippery or smooth pipe walls do not prevent a reliable support.

Request a quote

Characteristics Ordering Information Support documents

Characteristics

Simple and reliable fixation of pipe plugs and pipe inspection units
Stepless adjustment of the units according to the sewer application range
The special rubber coatings have a very high adhesion and withstand extreme backpressure without damage of the pipe wall

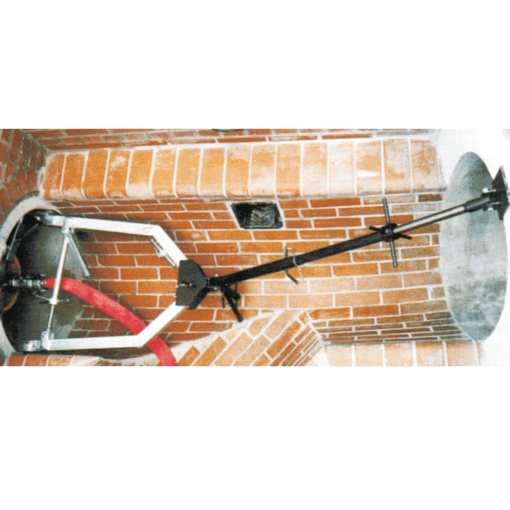

Additional telescopic struts (extensible to 1,270 mm) are available for larger dimensions, they ensure a higher load capacity of sewer tubes with diameters of 300 mm and above

Ordering Information

Art.-Nr.

Produktbezeichnung

Eigenschaften

LxBxH & Gewicht

Art.-Nr.:

2001380

Support type 10/15

Arbeitsbereich: 100 - 150 mm

Maße: 350 × 50 × 75 mm
Gewicht: 2.50

Art.-Nr.:

2001381

Support type 20/25

Arbeitsbereich: 200 - 250 mm

Maße: 400 × 50 × 90 mm
Gewicht: 3.00

Art.-Nr.:

2001382

Support type 30/40

Arbeitsbereich: 300 - 400 mm

Maße: 780 × 90 × 280 mm
Gewicht: 13.0

Art.-Nr.:

2001383

Support type 40/60

Arbeitsbereich: 400 - 600 mm

Maße: 900 × 100 × 370 mm
Gewicht: 14.0

Art.-Nr.:

2001384

Support type 60/100

Arbeitsbereich: 600 - 1000 mm

Maße: 1050 × 120 × 570 mm
Gewicht: 25.0

Art.-Nr.:

2001385

Support type 80/120

Arbeitsbereich: 800 - 1200 mm

Maße: 1250 × 120 × 570 mm
Gewicht: 28.0

Art.-Nr.:

2001386

Additional strut 10/15

Arbeitsbereich: 300 - 600 mm

Maße: 830 × 230 × 230 mm
Gewicht: 13.0

Art.-Nr.:

2001387

Additional strut 60/100

Arbeitsbereich: 600 - 1000 mm

Maße: 830 × 230 × 230 mm
Gewicht: 14.0
