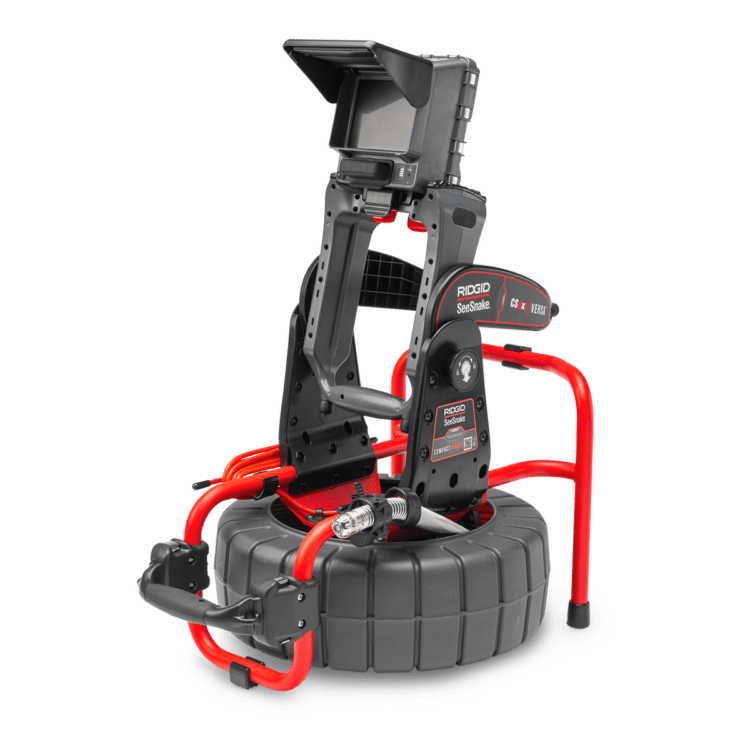

SeeSnake Compact2 Camera System

SeeSnake Compact2 Camera System

The SeeSnake compact2 is the next generation of the proven compact system. If offers high performance in a lightweight, compact, and rugged design. The new docking system of the CS6xPak monitor allows a rotation into the position required.



  • The self-adjusting camera head delivers sharp, clear, and, most of all, upright images.
  • Integrated distance counter and 512 Hz Flexmitter tracking transmitter allows a precise camera head tracking.
  • Improved push cable design – for excellent manoeuvrability

Characteristics

performance data

  • Line Capacity 1.5″ to 6″ (40 mm to 150 mm)
  • Push Cable Length 100′ (30 m)
  • Push Cable Diameter 0.26″ (6 mm)
  • Push Cable Core 0.14″ (3.5 mm) Fiberglass
  • Push Cable Bend Minimum Radius 2.5″ (63.5 mm)
  • Camera Type 1″ (25 mm) Self-Leveling
  • Resolution 656 x 492 (NTSC), 768 X 576 (PAL)
  • Light Source 6 LEDs
  • Sonde 512 Hz
  • Ingress Protection without Monitor IPx5

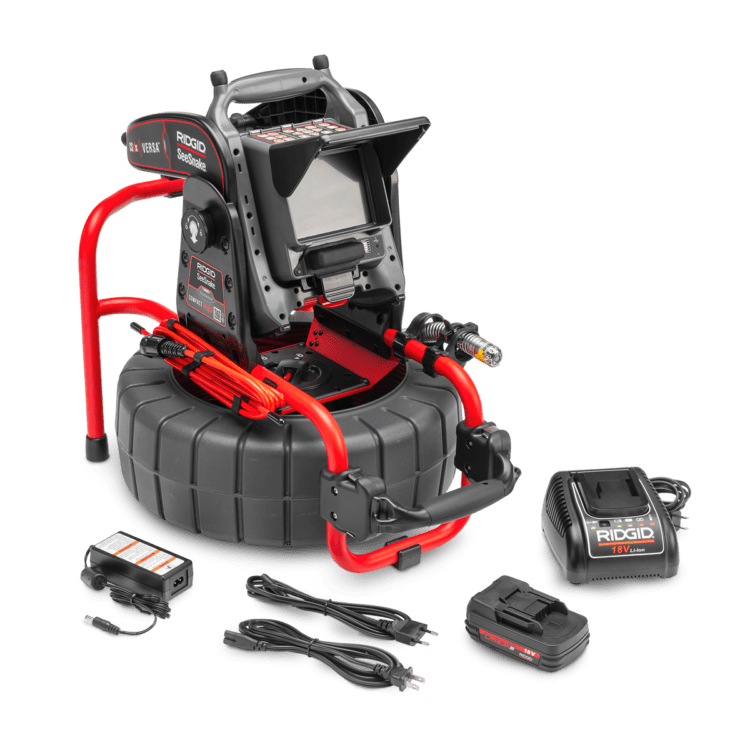

Scope of delivery

  • Complete set with CS6xPak

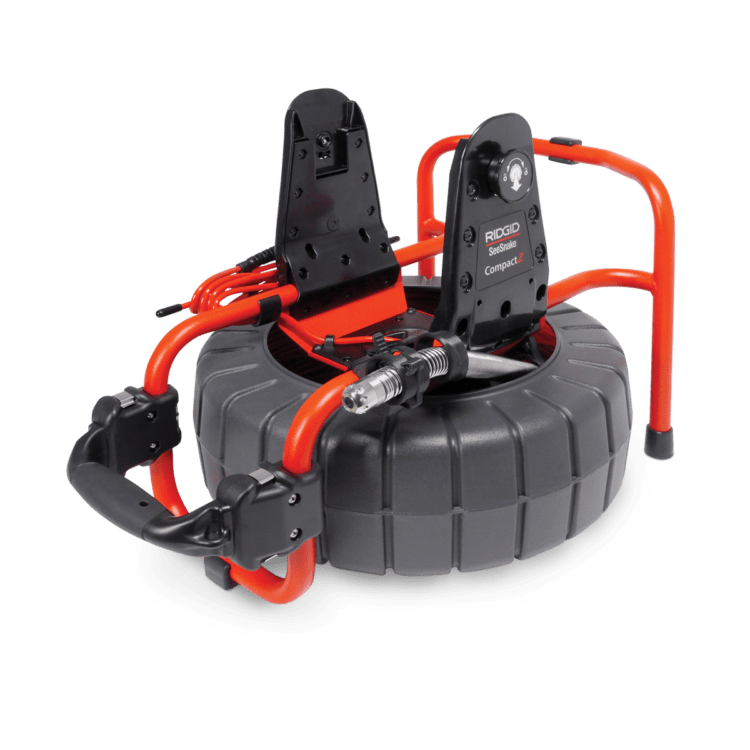

  • SeeSnake Compact2 reel
  • CS6xPak monitor with recording function
  • 4.0 Battery
  • charger

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
R48118
Ausführung: complete set
Arbeitsbereich: 40 - 150 mm
Länge: 30 m
Ortung: 512 Hz
Maße: 625 × 360 × 432 mm
Gewicht: 11.5


Art.-Nr.:
R48098
Arbeitsbereich: 40 - 150 mm
Länge: 30 m
Ortung: 512 Hz
Maße: 625 × 360 × 432 mm
Gewicht: 7.5


Art.-Nr.:
R57153
Ausführung: with battery and charger
Maße: 356 × 193 × 269 mm
Gewicht: 3.80
