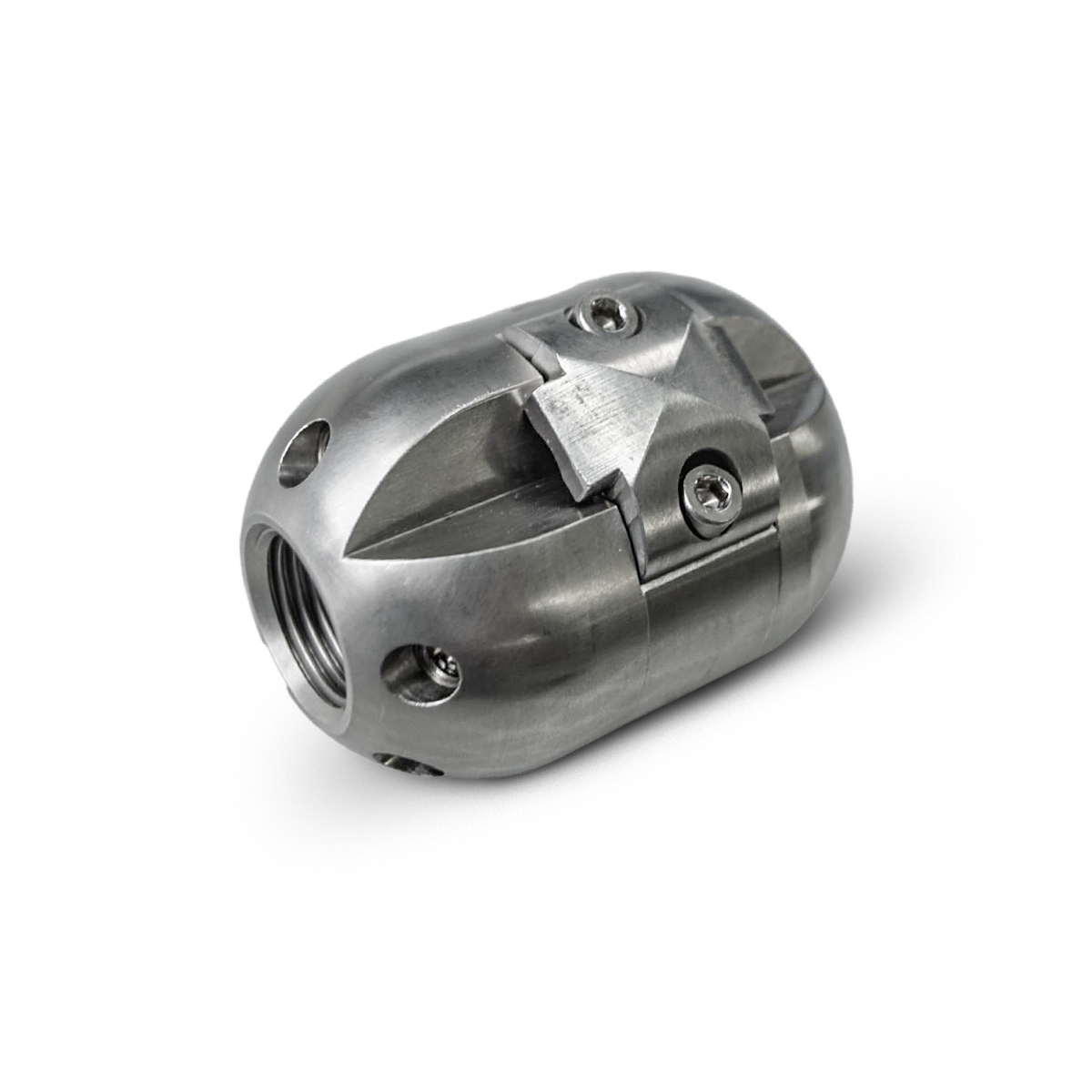

push-camera nozzle

Hochdruckdüse für eine Schiebekamera montiert am Kameraschubkabel

push-camera nozzle

Our push camera nozzle for push cables make it possible to check and simultaneously clean the basic and connection pipes in just one work step. They offer the possibility of achieving the maximum propulsion force and reach on push camera systems, even with many successive bends.

The continuous groove with clamping device is used to fasten sliding rods from various manufacturers. The camera nozzles are perfect in combination with our mobile Rohrboy high-pressure device and the mobile hose reel.

Characteristics

  • connection for 3/8″ high pressure hose
  • max. 40 litres per minute
  • clamping range for push cables from 9 – 11 mm

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
19916030
Anschluss: 3/8" female thread
Einsatz ab: 80 - 200 mm
Wasserleistung: from 25 lpm
Schubdüsen: 4x M6
Schub-Strahlwinkel: 25°
Maße: 55 × 40 × 40 mm
Gewicht: 0.37


Support Docs

Datasheet Download
