K9-204 FlexShaft drain cleaning machine

K9-204 FlexShaft drain cleaning machine

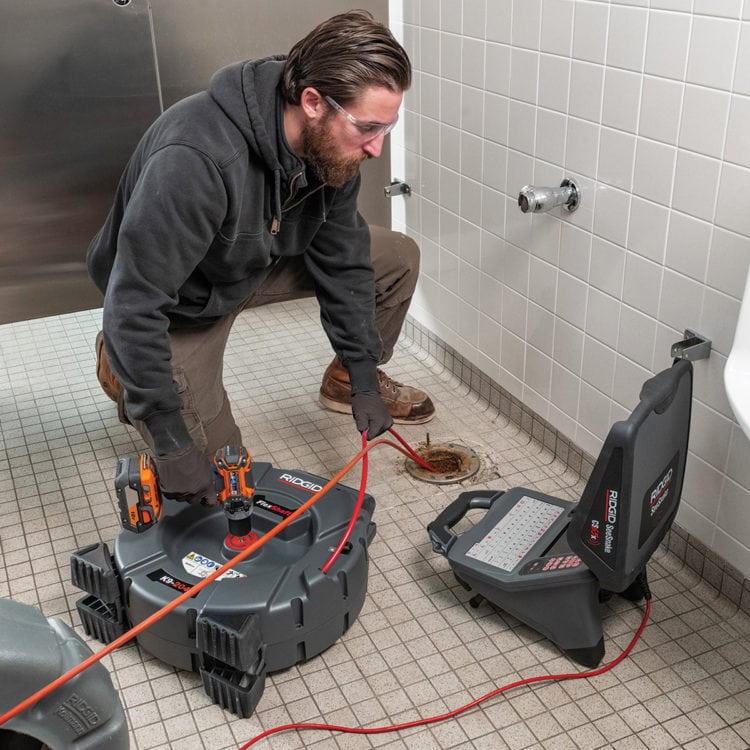

The new FlexShaft drums are compact and highly efficient machines that offer complete high-speed pipe cleaning from 50 – 100 mm (2″ to 4″). FlexShaft can also be operated when an inspection camera is located in the pipe so that the inside of the pipe can continue to be inspected during cleaning.

Characteristics

  • Applications: House drains & laterals
  • Type of blockage: Build ups, grease, & roots
  • The chain centrifuges expand for complete pipe cleaning
  • With FlexShaft drums, you can leave your inspection camera in the pipeline during application
  • Quick set-up and packing, quick cleaning and wireless, convenient operation provide additional time savings
  • A comprehensive range of chain centrifuges and accessories is available

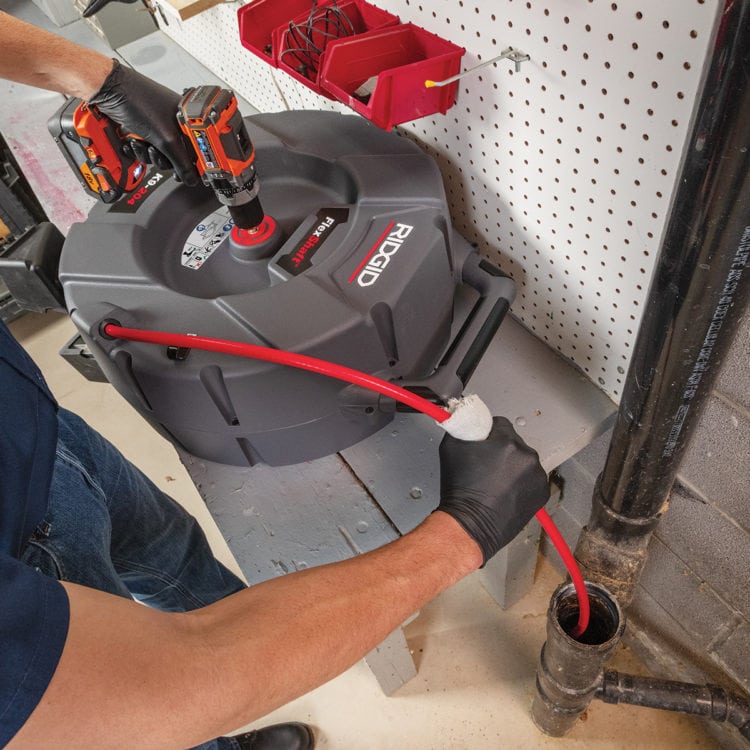

  • The unit is driven by a cordless screwdriver with slip clutch (not included in delivery)



Technical data:

  • Pipe diameter: from 50 – 100 mm (2″ – 4″)
  • Cable length: 21.3 m (70″)
  • Cable diameter (without sheathing): 8 mm
  • Cable diameter (with sheathing): 12.7 mm
  • Speed: min rpm RPM – max. 2500 rpm
  • Drill connection: 5/16″ Hex (8mm)
  • weight: 20.1 kg
  • Operating temperature: -6°C to 60°C

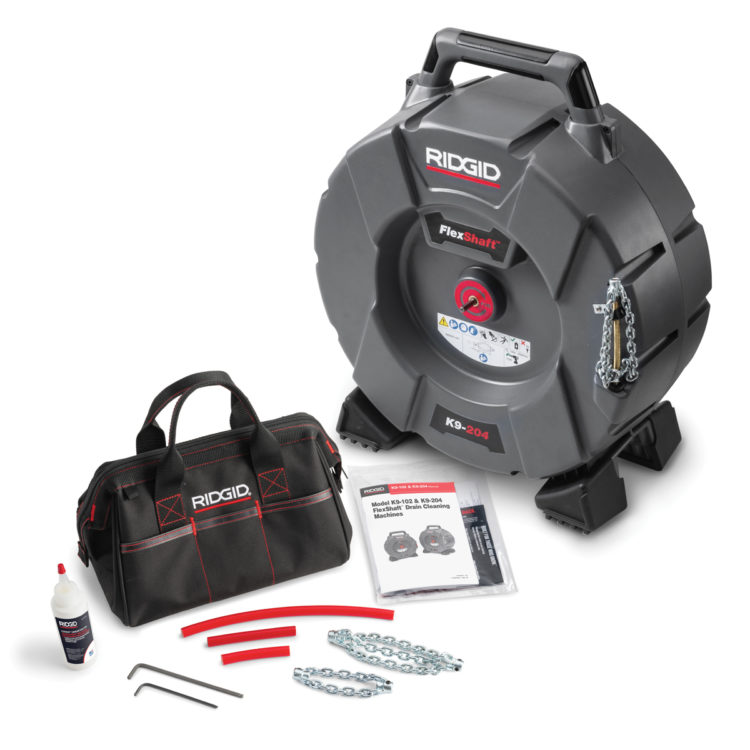

K9-204 Complete set consisting of:

  • FlexShaft drum including 21.3 m cable
  • Chain spinner with 2 smooth chain
  • Chain centrifuge with 3 smooth chains
  • FlexShaft Oil (120 ml)
  • PVC Attachments
  • Tool and tool bag

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
R64278
Arbeitsbereich: 50 - 100 mm
Länge: 21 m
Maße: 536 × 274 × 615 mm
Gewicht: 20.1


Art.-Nr.:
R64308
Arbeitsbereich: 50 mm
Aufbau: double chains
Maße: 140 × 40 × 40 mm
Gewicht: 0.20


Art.-Nr.:
R64313
Arbeitsbereich: 75 mm
Aufbau: triple chains
Maße: 140 × 40 × 40 mm
Gewicht: 0.25


Art.-Nr.:
R64318
Arbeitsbereich: 100 mm
Aufbau: triple chains
Maße: 140 × 40 × 40 mm
Gewicht: 0.30


Art.-Nr.:
R64323
Arbeitsbereich: 50 mm
Aufbau: double chains
Maße: 140 × 40 × 40 mm
Gewicht: 0.20


Art.-Nr.:
R64328
Arbeitsbereich: 75 mm
Aufbau: triple chains
Maße: 140 × 40 × 40 mm
Gewicht: 0.25


Art.-Nr.:
R64333
Arbeitsbereich: 100 mm
Aufbau: triple chains
Maße: 140 × 40 × 40 mm
Gewicht: 0.30


Art.-Nr.:
R64338
Inhalt: 8oz (238 ml)
Maße: 50 × 50 × 150 mm
Gewicht: 0.36
