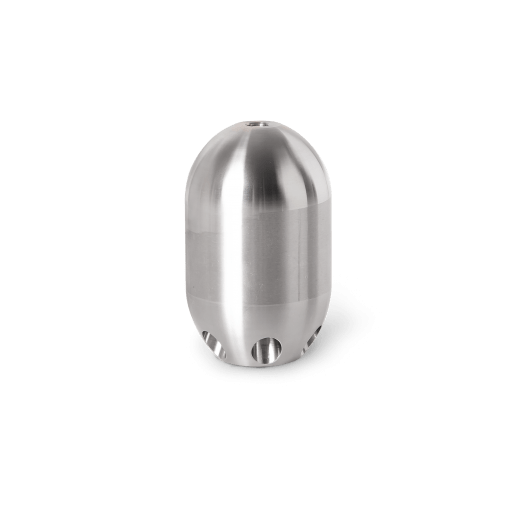

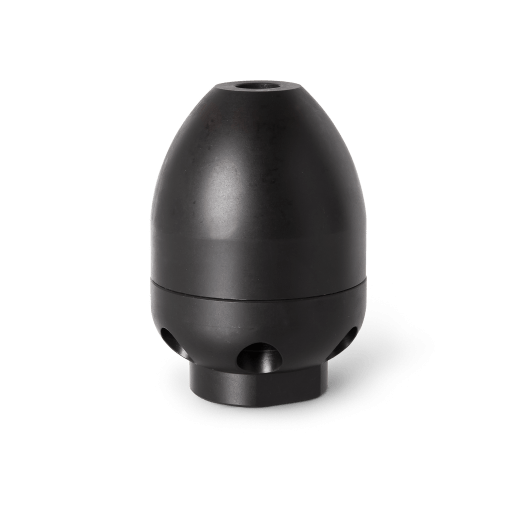

Grenade nozzles

Grenade nozzles

A versatile cleaning nozzle for long distances!

Grenade nozzles have excellent traction and cleaning performance and are extremely versatile. One benefit of this nozzle is its high traction force, in particular with long tubes or pressurized distances. Six thrust nozzles with flat jet angles ensure high traction and flushing performance with excellent cleaning, even for low water supply. The optional attachment jet nozzle insert removes small obstacles and light clogging.

The grenade nozzles are equipped with ceramics inserts, as are all our tube and sewer cleaning nozzles. We supply additional blind plugs to the front jet.

Characteristics

Fields of application:

  • – HP cleaning of medium and slightly contaminated sewers of DN 100 to DN 300 mm maximum
  • – suitable for tubes and sewer lines with medium and large distances
  • – for regular maintenance
  • – suitable even for minor pump flow rate

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1100220
Anschluss: 1/2" female thread
Einsatz ab: 100 - 200 mm
Wasserleistung: from 50 lpm
Schubdüsen: 6x M6
Schub-Strahlwinkel: 23°
Vorstrahldüsen: 1x M6
Vorstrahlwinkel:
Maße: 80 × 50 × 50 mm
Gewicht: 0.79


Art.-Nr.:
1100221
Anschluss: 3/4" female thread
Einsatz ab: 150 - 250 mm
Wasserleistung: from 120 lpm
Schubdüsen: 6x M10
Schub-Strahlwinkel: 23°
Vorstrahldüsen: 1x M6
Vorstrahlwinkel:
Maße: 120 × 75 × 75 mm
Gewicht: 1.90


Art.-Nr.:
1100223
Anschluss: 1" female thread
Einsatz ab: 150 - 250 mm
Wasserleistung: from 120 lpm
Schubdüsen: 6x M10
Schub-Strahlwinkel: 23°
Vorstrahldüsen: 1x M6
Vorstrahlwinkel:
Maße: 120 × 75 × 75 mm
Gewicht: 1.90


Art.-Nr.:
1100222
Anschluss: 1" female thread
Einsatz ab: 200 - 400 mm
Wasserleistung: from 200 lpm
Schubdüsen: 6x M10
Schub-Strahlwinkel: 23°
Vorstrahldüsen: 1x M6
Vorstrahlwinkel:
Maße: 140 × 75 × 75 mm
Gewicht: 3.10
