vLoc3 Cam – Locater

vLoc3 Cam – Locater

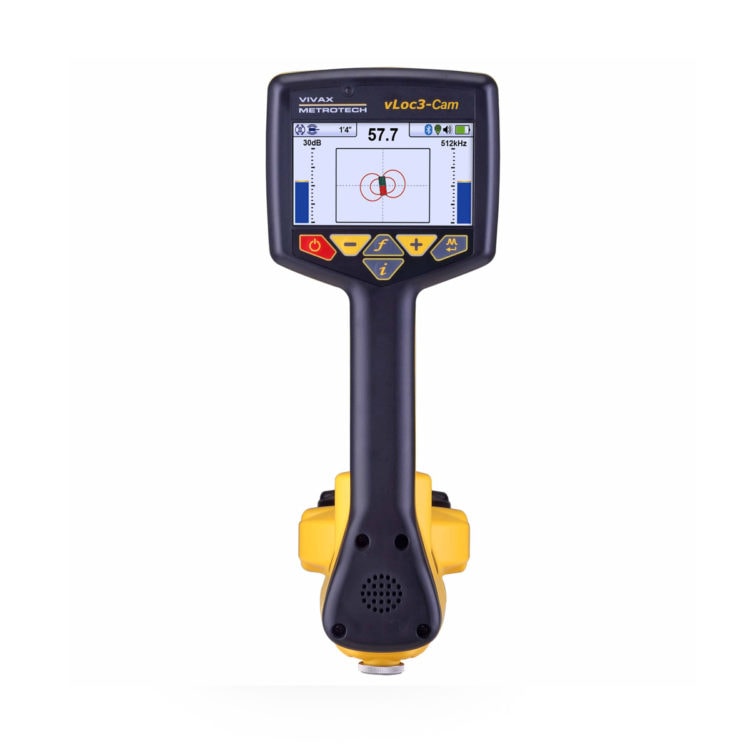

The vLoc3-Cam is the easiest to use probe locator on the market. It is used for locating and depth measurement of probes, push camera and crawler systems equipped with locating probes. In addition, the unit has two passive locating modes for power and radio, for locating live wires, cable TV, telephone and some metal pipe detect.

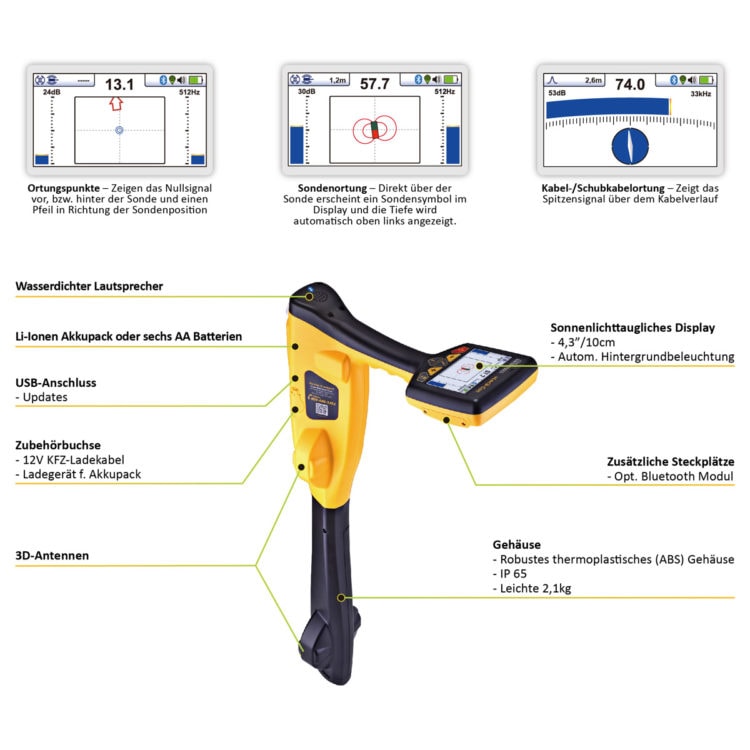

The omnidirectional antenna arrangement allows the probe to be reached from any position. The directional arrows guide the user first to the front or rear locate point and then directly to the probe location.

Characteristics

  • sunlight readable 4.3 inch display
  • 50/60Hz mode warns of live wires
  • lightweight, ergonomic ABS housing (2.1 kg)
  • Bluetooth module optionally retrofittable
  • two 3D receiving antennas
  • Micro-USB for firmware updates
  • waterproof speaker



Performance data

  • display: transmissive display 480 x 272 pixel, 16-bit color, high resolution LCD, 4.3” (10cm)
  • Probe locating: 512Hz, 640Hz, 8.19kHz, 9.82kHz, 33kHz (32.8KHz), and 83kHz
  • Cable locating: 33kHz or 83kHz
  • Passive current signal locating at 50Hz
  • Radio frequency locating: from 10kHz to 22.7kHz bandwidth
  • Receiving antennas: Two 3D antennas
  • Power supply: 6 x AA alkaline batteries (12 h) / optional lithium-ion battery with mains charger (27 h)
  • Locating accuracy: Above 3m – 5% of depth / Up to 3m – 3% of depth
  • Protection class: IP65 and NEMA 4



Scope of delivery

  • vLoc3 Cam – Scope of delivery
  • Mini USB cable for firmware updates
  • 6x AA alkaline batteries
  • Holder for alkaline batteries
  • Instruction manual



Optional accessories

  • Bluetooth module
  • 12V car charger
  • rechargeable Li-Ion battery
  • various probes
  • external GPS mount with Garmin GLO GPS

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
2004410
Ausführung: complete set
Maße: 420 × 280 × 700 mm
Gewicht: 4.75


Art.-Nr.:
2004613
Ausführung: accessories
Maße: 1000 × 400 × 150 mm
Gewicht: 0.5


Art.-Nr.:
2004432
Ausführung: accessories
Maße: 60 × 20 × 10 mm
Gewicht: 0.1


Art.-Nr.:
2004611
Ausführung: accessories
Maße: 60 × 40 × 40 mm
Gewicht: 0.2


Art.-Nr.:
2004612
Spannung: 230 volts
Ausführung: accessories
Maße: 120 × 50 × 40 mm
Gewicht: 0.4


Art.-Nr.:
2004614
Spannung: 12 V DC (car)
Ausführung: accessories
Maße: 120 × 50 × 40 mm
Gewicht: 0.4


Support Docs

Datasheet Download
