QuickView 360 – manhole scan system

QuickView 360 – manhole scan system

With the QuickView 360 manhole inspection system, a single operator can scan up to 80 manholes per day. The results are then stored and analyzed in WinCan Web and can be sent to the customer.

The QuickVew 360 captures 4K panoramic video, uses AI to automate the encoding and automatically generates the report. It also provides a full 3D model, the survey can be annotated and can be exported to CAD/GIS.

Characteristics

HOW THE MANHOLE SCAN WORKS

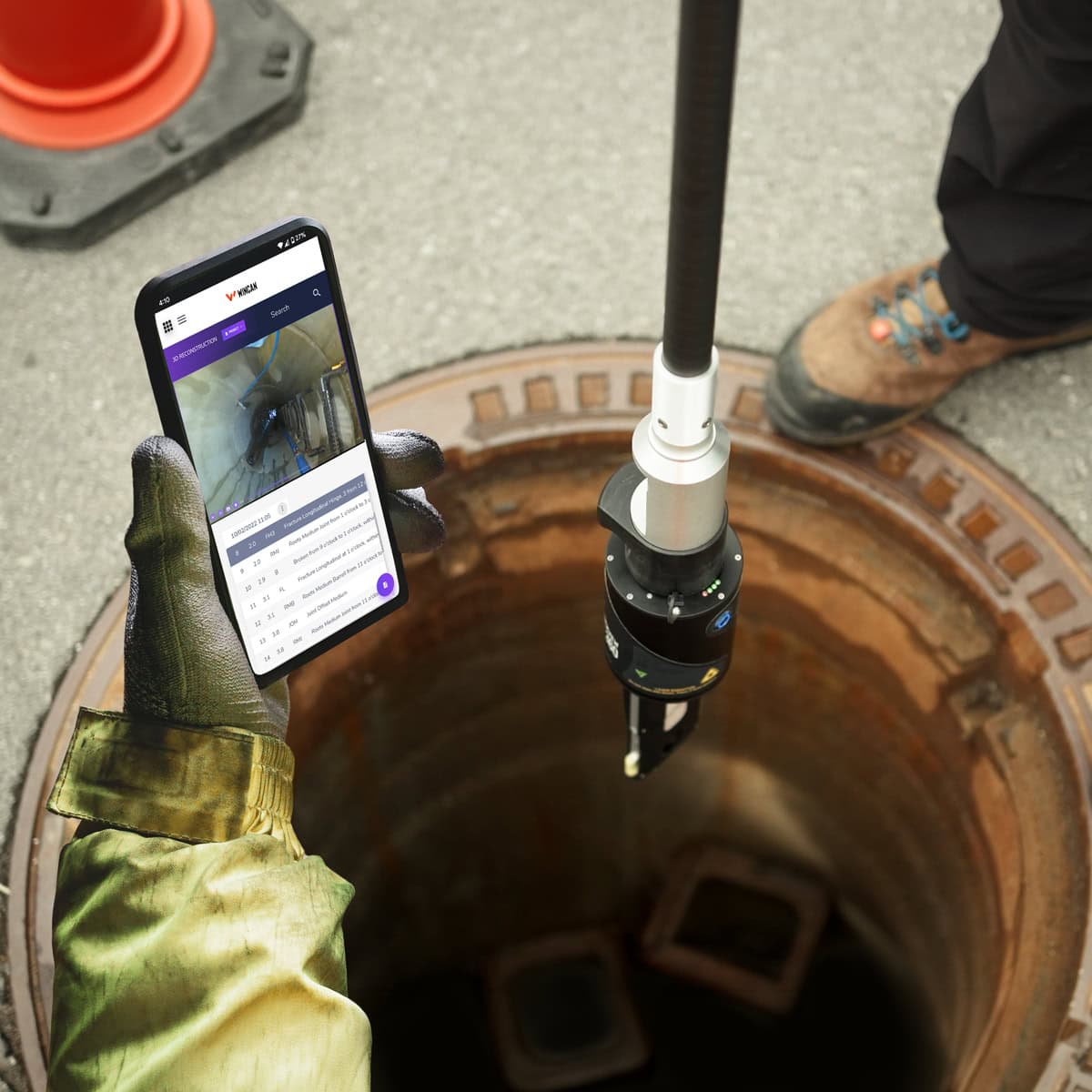

The QuickView 360 is guided into the shaft by hand using the telescopic rod. The system takes over the automatic data processing and delivers a complete 360° video while simultaneously surveying the manhole shaft with the integrated laser range finder.The Quickview 360 is designed for use by a single operator. With the app-based touchscreen control, live video transmission with virtual pan and tilt can be displayed with just the touch of a button. Connect your iOS, Android or Windows device to quickly adjust light intensity and text overlay or send results to the cloud.

FAST DATA PREPARATION

Turn a 5-minute manhole inspection into actionable data before you get to the next manhole. Connect the Quickview 360 to the cloud via the Sewerlink app and upload inspection results to WinCan Web via a mobile data connection. Then review the recordings on WinCan Web with free movement in the virtual 360° video. Analyze, edit and share inspections and download reports.



Technical data:

  • AI coding of observations (function available from summer 2024, additional costs may apply)
  • REPORTS are created automatically
  • Upload to the cloud
  • Free movement in virtual 360° video
  • EXPORT file to CAD/GIS
  • QuickView 360 with LED lighting
  • Dual camera system for 360-degree image material in HD or 4K
  • 9 m carbon fiber telescopic pole with quick-release lock
  • 1 year “WinCan Web Flex” for the creation of projects
  • “Unfolding” (2D) and additional “point cloud (3D)



Scope of delivery – QuickView 360:

  • Camera head
  • Camera case
  • Camera case
  • Micro USB cable
  • 9 m telescopic pole
  • 1-year subscription for WinCan Web Flex



Important notes:

  • Tablet not included in the scope of delivery
  • compatible with iPad 10th gen – min. iOS 15.6.1 (recommended), iPhone 12 – min. iOS 17.1.2, Samsung Galaxy Tab S8 min. Android 13
  • WinCan Web can continue to be used after the 1-year subscription with a paid subscription



Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
IP067-0980-00
Ausführung: complete set
Anwendung: manhole
Länge: up to 9 m
Maße: 1800 × 80 × 80 mm
Gewicht: 5.00
