Proteus Lite – Crawler system

Proteus Lite – Crawler system

Mini-Cam’s Proteus Lite brings together, the tried and trusted performance and reliability of the Proteus family, in a value for money, entry level system. Proteus Lite is the ideal starter kit for a one-man operation, integration into a small inspection van, or a low-cost option for larger companies to use for off-road, remote locations.

Proteus Lite provides all the resources required to undertake efficient, easy to perform inspections, and withProPIPE+ and WinCan Embedded software as standard, you can deliver accurate, detailed reports, instantly on-site.

* Expandable with all Proteus components!



Proteus control unit (CCU208)

  • with sunlight compatible 10″ display
  • 32 GB internal memory (expandable up to 128 GB)
  • waterproof keyboard for data entry
  • System enables damage catalogue based inspections (D) DWA M149 – ISYBAU2006, 2001 and 1996

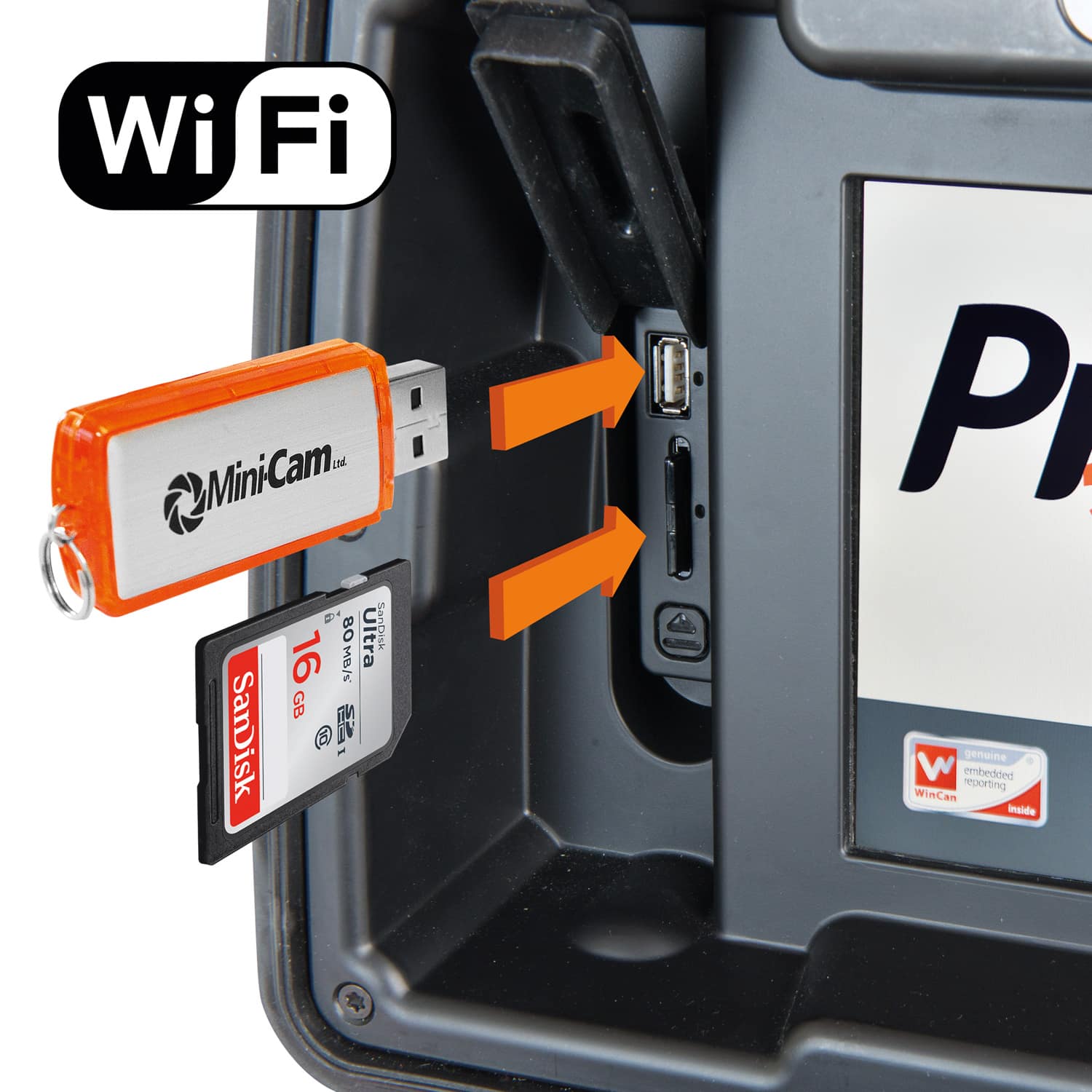

  • Data transfer via W-LAN and USB sticks and SD cards
  • BNC connector (video-out) and R232 interface
  • with optional power battery a mobile working up to 5 hours is possible

Cable drum (RMP250):

  • Manual cable drum with 250 m Kevlar reinforced camera cable
  • stable powder-coated frame
  • Control units recording
  • with electronic meter counter, adjustable grinding brake and parking lock


Carriage (CPL150)

  • manual lift for applications from DN 150 – 400 mm
  • Heavy duty plug connection
  • including 90 mm rubber wheel set

Ordering Information

LxBxH & Gewicht

Ausführung: complete set
Arbeitsbereich: 150 - 400 mm
Länge: 250 m
Maße: 550 × 385 × 700 mm
Gewicht: 45.0

Anwendung: crawler system
System: Proteus, Proteus-Lite
Maße: 280 × 100 × 120 mm
Gewicht: 4.00

Support Docs

Datasheet Download

Manual - Proteus Lite crawler system Download
