manhole hooks – galvanized steel

Our manhole hooks are suitable for quick and easy opening of manhole covers and manhole covers, e.g. during construction or cleaning work. With the large handle in closed form it is possible to pull comfortably with both hands.

The lifters are made of hand-forged steel, hardened and galvanized for permanent protection against corrosion. This makes our shaft hooks extremely robust and durable.

Note: The shaft hook length should be adjusted to the body height.

Request a quote

Characteristics Ordering Information Support documents

Characteristics

16 mm round steel with hand-forged tip hardened in oil bath
large handlebar for ambidextrous pulling
permanent corrosion resistance due to zinc plating
available in 2 versions with L-hook and U-hook

Further special hooks on request.

Ordering Information

Art.-Nr.

Produktbezeichnung

Eigenschaften

LxBxH & Gewicht

Art.-Nr.:

1130210

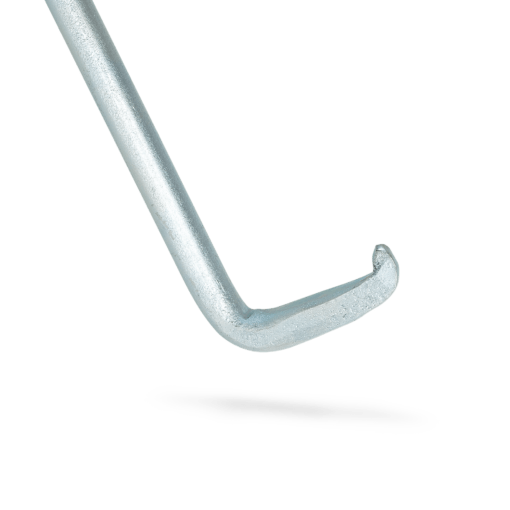

manhole hook 40 / L-shaped

Länge: 40 cm long

Ausführung: L-shaped

Materialstärke: 16 mm

Maße: 400 × 200 × 16 mm
Gewicht: 1.10

Art.-Nr.:

1130211

manhole hook 60 / L-shaped

Länge: 60 cm long

Ausführung: L-shaped

Materialstärke: 16 mm

Maße: 600 × 200 × 16 mm
Gewicht: 1.45

Art.-Nr.:

1130212

manhole hook 70 / L-shaped

Länge: 70 cm long

Ausführung: L-shaped

Materialstärke: 16 mm

Maße: 700 × 200 × 16 mm
Gewicht: 1.50

Art.-Nr.:

1130220

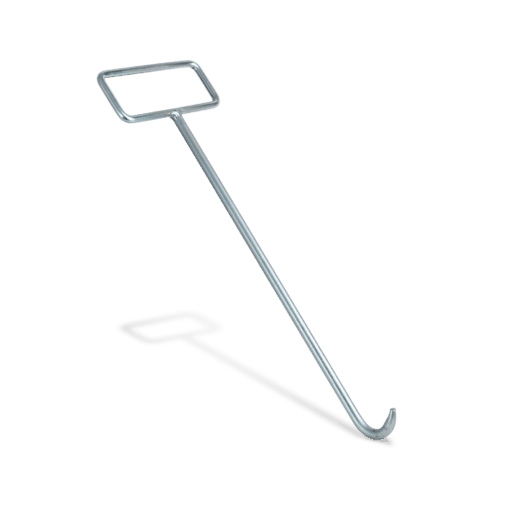

manhole hook 70 / U-shaped

Länge: 70 cm long

Ausführung: U-shaped

Materialstärke: 16 mm

Maße: 700 × 200 × 16 mm
Gewicht: 1.50

Art.-Nr.:

1130213

manhole hook 80 / L-shaped

Länge: 80 cm long

Ausführung: L-shaped

Materialstärke: 16 mm

Maße: 800 × 200 × 16 mm
Gewicht: 1.70

Art.-Nr.:

1130221

manhole hook 80 / U-shaped

Länge: 80 cm long

Ausführung: U-shaped

Materialstärke: 16 mm

Maße: 800 × 200 × 16 mm
Gewicht: 1.70
