Lifting bag with 12 bar

Lifting bag with 12 bar

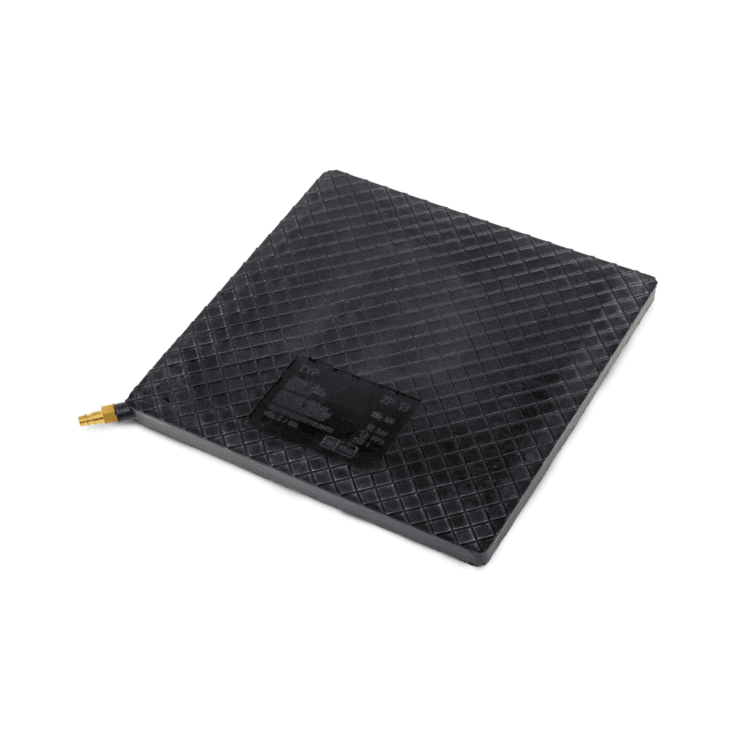

The Lifting bag with 12 bar are made of high quality rubber, reinforced with Kevlar insert, thus they are versatile and serve for lifting heavy loads. The 12 bar version consists of six types with lifting capacity from 53 tons.

The lifting bags are used as a necessary aid in natural disasters, car or railroad accidents, as well as in the alignment of heavy components, lifting of all types of vehicles and tire changing. They are also used in many other industries: firefighting, defense, installation and renovation of water, gas and oil pipelines, in quarries for splitting stone blocks, at airports, etc.

Characteristics

  • for lifting heavy loads and vehicles
  • with 12 bar operating overpressure
  • for aligning heavy components during assembly
  • for special applications, such as splitting stone blocks and much more
  • weather and temperature resistant (in the temperature range from -30°C to 80°C)
  • easy handling and quick use
  • filling via standard air couplings

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
2003410
Hubkraft: 8 tons
Hubhöhe: 170 mm
Einschubhöhe: 27 mm
Betriebsüberdruck: 12,0 bar (174 psi)
Maße: 270 × 270 × 26 mm
Gewicht: 2.00


Art.-Nr.:
2003412
Hubkraft: 13 tons
Hubhöhe: 210 mm
Einschubhöhe: 27 mm
Betriebsüberdruck: 12,0 bar (174 psi)
Maße: 340 × 340 × 26 mm
Gewicht: 3.20


Art.-Nr.:
2003413
Hubkraft: 19 tons
Hubhöhe: 260 mm
Einschubhöhe: 27 mm
Betriebsüberdruck: 12,0 bar (174 psi)
Maße: 420 × 420 × 26 mm
Gewicht: 4.90


Art.-Nr.:
2003414
Hubkraft: 28 tons
Hubhöhe: 300 mm
Einschubhöhe: 27 mm
Betriebsüberdruck: 12,0 bar (174 psi)
Maße: 510 × 510 × 26 mm
Gewicht: 7.60


Art.-Nr.:
2003415
Hubkraft: 40 tons
Hubhöhe: 360 mm
Einschubhöhe: 27 mm
Betriebsüberdruck: 12,0 bar (174 psi)
Maße: 600 × 600 × 26 mm
Gewicht: 10.5


Art.-Nr.:
2003416
Hubkraft: 53 tons
Hubhöhe: 400 mm
Einschubhöhe: 27 mm
Betriebsüberdruck: 12,0 bar (174 psi)
Maße: 690 × 690 × 26 mm
Gewicht: 13.8
