DUO tube nozzles

The DUO tube nozzles have succeeded our standard tube nozzles. The new design with 2 nozzle jet circuits improves cleaning performance.

cleaning of tubes and lines of ND 70 and above
improved traction and cleaning performance due to two different jet circuits
suitable in particular for building tie-ins, long tubes, and long pressurized distances – all DUO nozzles are available with front jet and a blind plug
for removal of medium contaminations and uncomplicated clogging (use with front jet)

Art.-Nr.

Produktbezeichnung

Eigenschaften

LxBxH & Gewicht

Art.-Nr.:

1100080

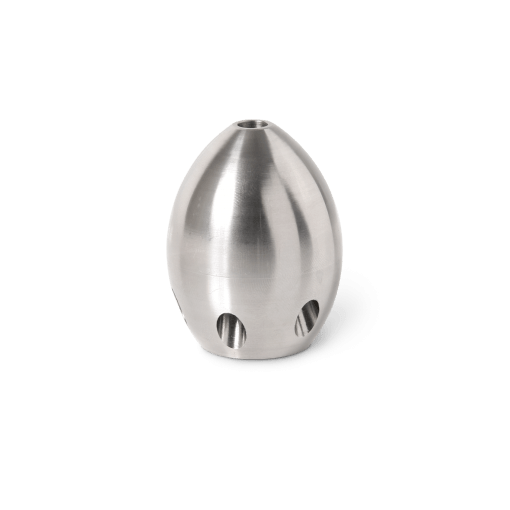

1/2" DUO tube nozzle

Anschluss: 1/2" female thread

Einsatz ab: 70 - 250 mm

Wasserleistung: from 60 lpm

Schubdüsen: 2x 3 M6

Schub-Strahlwinkel: 23° / 18°

Vorstrahldüsen: 1x M6

Vorstrahlwinkel: 0°

Maße: 57 × 45 × 45 mm
Gewicht: 0.35

Art.-Nr.:

1100082

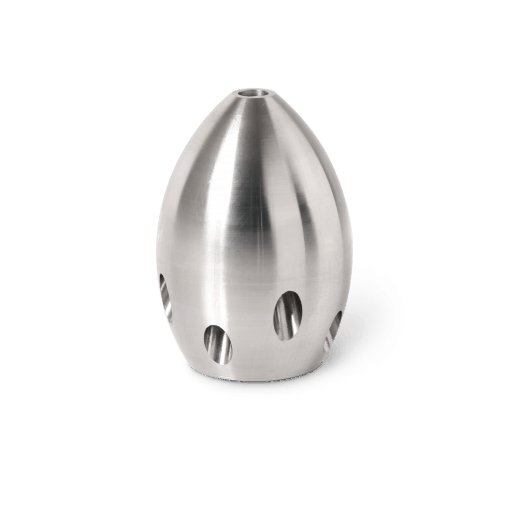

3/4" DUO tube nozzle

Anschluss: 3/4" female thread

Einsatz ab: 100 - 250 mm

Wasserleistung: from 120 lpm

Schubdüsen: 2x 4 M6

Schub-Strahlwinkel: 25° / 20°

Vorstrahldüsen: 1x M6

Vorstrahlwinkel: 0°

Maße: 70 × 50 × 50 mm
Gewicht: 0.50

Art.-Nr.:

1100084

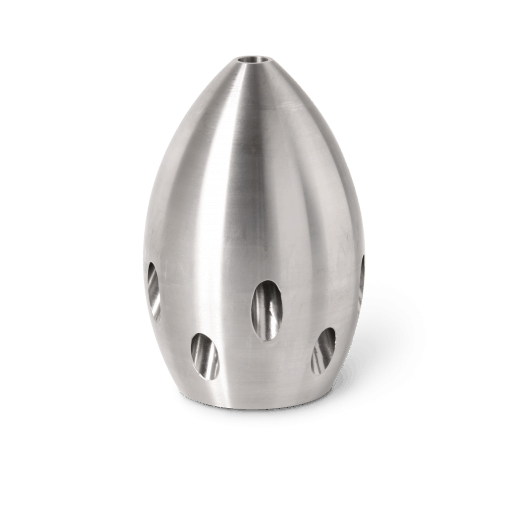

1" DUO tube nozzle

Anschluss: 1" female thread

Einsatz ab: 150 - 300 mm

Wasserleistung: from 200 lpm

Schubdüsen: 2x 5 M6

Schub-Strahlwinkel: 25° / 20°

Vorstrahldüsen: 1x M6

Vorstrahlwinkel: 0°

Maße: 85 × 56 × 56 mm
Gewicht: 0.72

Datasheet Download
