telecopic manhole lance

telecopic manhole lance

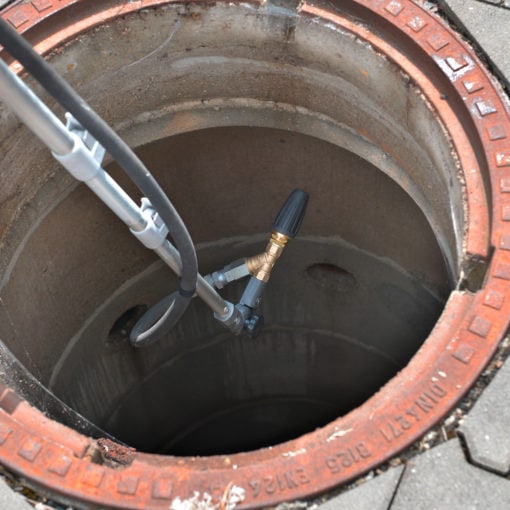

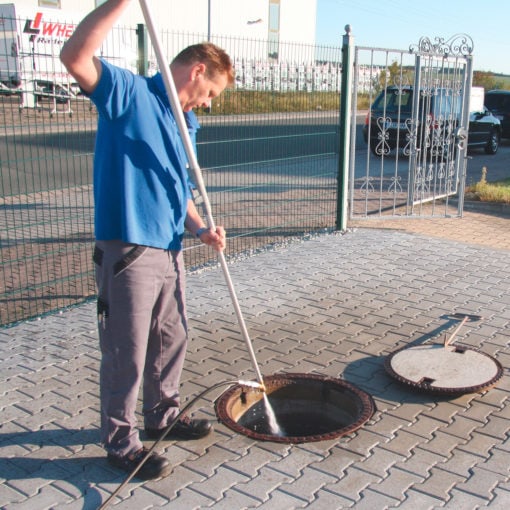

The robust telescopic cleaning lance is used for cleaning manholes and other surfaces. The lance can be continuously extended from 1,750 mm – 6,000 mm (short version 1.300 – 3.500 mm)  and thus offers the possibility of comfortably cleaning deep shaft structures from the shaft opening.

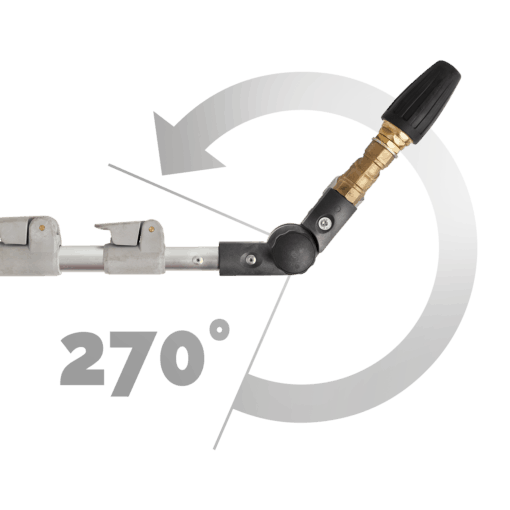

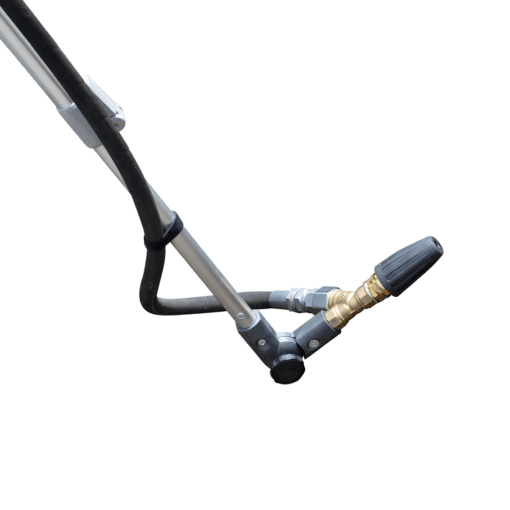

The new articulated joint allows you to tilt the nozzle head 270°. For example, you can clean under the manhole ring, in inlets or in containers under baffles or similar.

Characteristics

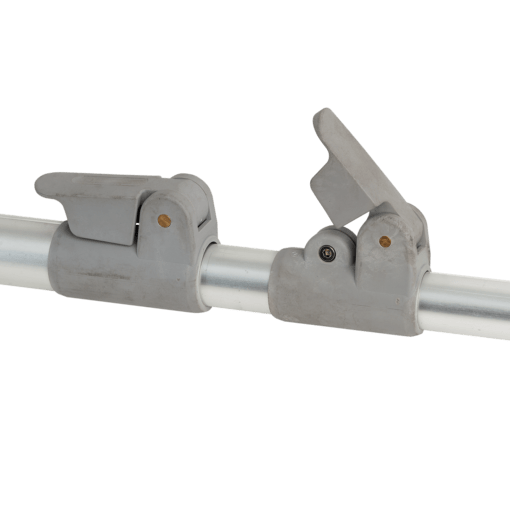

  • telescopic pole with quick-release fasteners
  • 270° articulated joint with detent
  • 1/2″ hose connection with swivel joint
  • our shaft lance can be equipped with different nozzles
  • normal version – length 1,750 mm (extendable to 6,000 mm)
  • short version – length 1,300 mm (extendable to 3,500 mm)



Telescopic manhole lance Scope of delivery

  • Telescopic pole short or normal version
  • 270° Folding element with detent
  • 1/2″ hose connection with swivel joint
  • including round steel nozzle (other nozzle attachments optionally selectable)

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1130102
Anschluss: 1/2" female thread
Maße: 1300 × 100 × 60 mm
Gewicht: 1.50


Art.-Nr.:
1130105
Anschluss: 1/2" female thread
Maße: 1750 × 100 × 60 mm
Gewicht: 2.30


Art.-Nr.:
1130106
Strahlart: flat-jet 45°, rotating round jet
Anschluss: 1/2" male
Maße: 30 × 30 × 30 mm
Gewicht: 0.40


Art.-Nr.:
1130108
Strahlart: round-jet
Anschluss: 1/2" male
Maße: 20 × 20 × 5 mm
Gewicht: 0.04


Art.-Nr.:
1130109
Strahlart: flat-jet 45°
Anschluss: 1/2" male
Maße: 20 × 20 × 5 mm
Gewicht: 0.04


Art.-Nr.:
1130110
Strahlart: rotating round jet
Anschluss: 1/2" male
Maße: 20 × 20 × 5 mm
Gewicht: 0.04
