Super-Bully bottom cleaner

Sohlenreiniger Räumdüse Rubrikbild

Super-Bully bottom cleaner

Defines standards – for extremely heavy contamination!

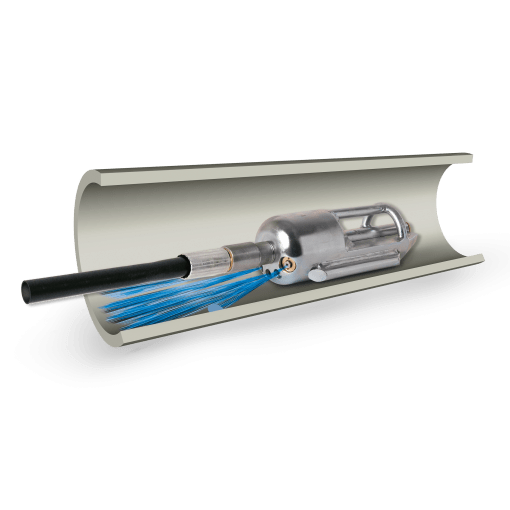

The latest nozzle technology and findings from the field were were applied when developing our heavy-clearing nozzles. The entire water jet energy produced concentrates on the sewer bottom to be cleaned. This results in a maximum efficiency combined with excellent traction and cleaning.

The low point of gravity, the skid guide and an edgeless design prevent a turn-over and ensure the unlimited sliding properties of the clearing nozzle, both in forward and backward movement.

We supply heavy Super-Bully bottom cleaners including ceramics nozzle inserts.

Characteristics

Fields of application:

  • for removal of heavy deposits, e.g. debris or sludge, in sewers of DN 250 and above
  • larger sewer and tube lengths possible
  • suitable for vans with a water reclaiming system

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1100310
Anschluss: 3/4" female thread
Einsatz ab: from 300 mm
Wasserleistung: from 180 lpm
Schubdüsen: 5x M10
Schub-Strahlwinkel: 3x 15° / 2x 26°
Vorstrahldüsen: 1x M10
Vorstrahlwinkel: (-)
Maße: 340 × 105 × 105 mm
Gewicht: 12.00


Art.-Nr.:
1100311
Anschluss: 1" female thread
Einsatz ab: from 300 mm
Wasserleistung: from 220 lpm
Schubdüsen: 5x M10
Schub-Strahlwinkel: 3x 15° / 2x 26°
Vorstrahldüsen: 1x M10
Vorstrahlwinkel: (-)
Maße: 340 × 105 × 105 mm
Gewicht: 12.00


Art.-Nr.:
1100312
Anschluss: 1" female thread
Einsatz ab: from 350 mm
Wasserleistung: from 240 lpm
Schubdüsen: 7x M10
Schub-Strahlwinkel: 5x 15° / 2x 26°
Vorstrahldüsen: 1x M10
Vorstrahlwinkel: (-)
Maße: 350 × 125 × 125 mm
Gewicht: 20.10


Art.-Nr.:
1100313
Anschluss: 1 1/4" female thread
Einsatz ab: from 350 mm
Wasserleistung: from 320 lpm
Schubdüsen: 7x M10
Schub-Strahlwinkel: 5x 15° / 2x 26°
Vorstrahldüsen: 1x M10
Vorstrahlwinkel: (-)
Maße: 350 × 125 × 125 mm
Gewicht: 20.10


Art.-Nr.:
1100314
Anschluss: 1 1/4" female thread
Einsatz ab: from 400 mm
Wasserleistung: from 340 lpm
Schubdüsen: 7x M10
Schub-Strahlwinkel: 1x 5°/ 4x 15° / 2x 26°
Vorstrahldüsen: 1x M10
Vorstrahlwinkel: (-)
Maße: 400 × 150 × 150 mm
Gewicht: 31.0


0
Request for quotation
