Multi-Power spinning nozzle MPA

Multi-Power spinning nozzle MPA

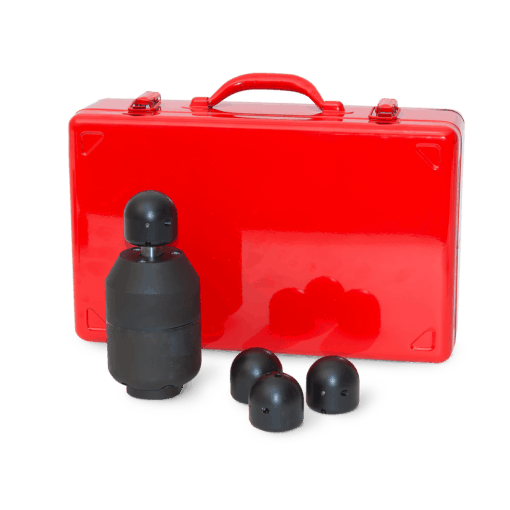

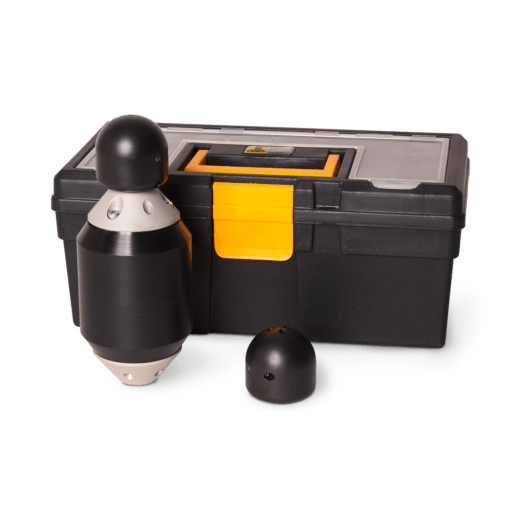

The Multi-Power nozzle replaces 4 different spinning nozzles.

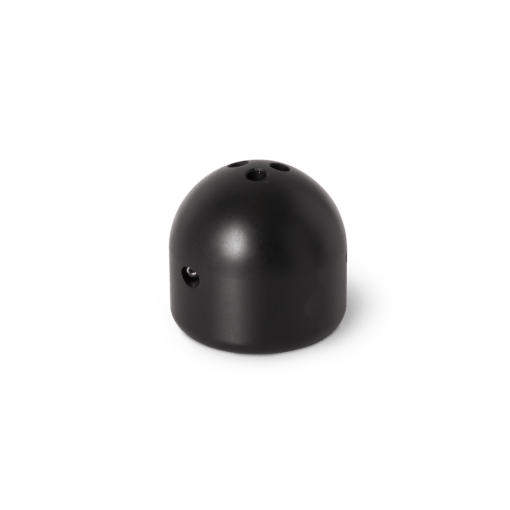

Our Multi-Power nozzles are the universal tools for tube and sewer cleaning. Four different spinning heads allow you to remove all deposits found in the field. The spinning KRD combined head and the BRD drilling head enable you to resolve all challenges. The rotary joint takes the pressurized water (without positive guide) directly to the nozzle head. This way, even grey water may be used. Thanks to its design, the Multi-Power nozzle produces a far higher jet impact energy than conventional spinning nozzles with water gap guide.

The rotation is produced by the impact angle of the respective “head jets”. This results in zero power loss and sliding face abrasion as found with standard spinning nozzles with water gap guide.

Characteristics

  • nozzle heads changeable
  • depending on the spinning head used, suitable for removal of: small roots, incrustations, clogged points, grease deposits, and sludge and building material clods
  • HP cleaning to clear clogged tubes of diameters above DN 100 – 600 mm
  • excellent traction and cleaning performance, good bend passage
  • suitable for vans with a water reclaiming system

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1120110
Anschluss: 1/2" female thread
Einsatz ab: 100 - 250 mm
Wasserleistung: from 70 lpm
Schubdüsen: 6x M6
Schub-Strahlwinkel: 15°
Rotationsdüsen: (-)
Rotation-Strahlwinkel: (-)
Maße: 170 × 80 × 80 mm
Gewicht: 2.10


Art.-Nr.:
1120111
Anschluss: 3/4" female thread
Einsatz ab: 100 - 250 mm
Wasserleistung: from 120 lpm
Schubdüsen: 6x M6
Schub-Strahlwinkel: 15°
Rotationsdüsen: (-)
Rotation-Strahlwinkel: (-)
Maße: 160 × 80 × 80 mm
Gewicht: 2.10


Art.-Nr.:
1120120
Anschluss: 1" female thread
Einsatz ab: 200 - 600 mm
Wasserleistung: from 220 lpm
Schubdüsen: 6x M10
Schub-Strahlwinkel: 15°
Rotationsdüsen: (-)
Rotation-Strahlwinkel: (-)
Maße: 170 × 89 × 89 mm
Gewicht: 4.70


Art.-Nr.:
1120121
Anschluss: 1 1/4" female thread
Einsatz ab: 200 - 600 mm
Wasserleistung: from 280 lpm
Schubdüsen: 6x M10
Schub-Strahlwinkel: 15°
Rotationsdüsen: (-)
Rotation-Strahlwinkel: (-)
Maße: 170 × 89 × 89 mm
Gewicht: 4.60

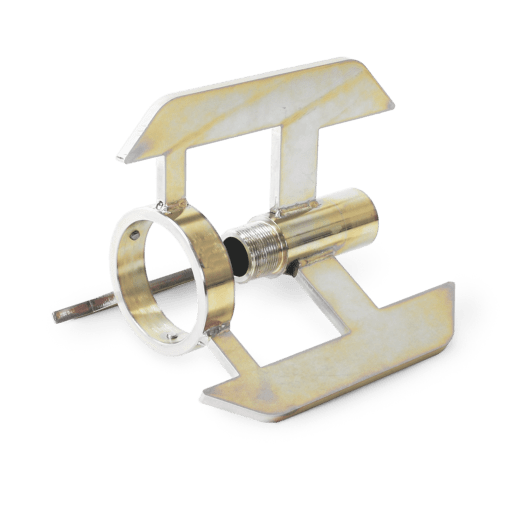

Art.-Nr.:
1120130
Anschluss: 1 1/4" female thread
Einsatz ab: from 350 mm
Wasserleistung: (-)
Schubdüsen: (-)
Schub-Strahlwinkel: (-)
Rotationsdüsen: (-)
Rotation-Strahlwinkel: (-)
Maße: 270 × 270 × 270 mm
Gewicht: 4.80


Art.-Nr.:
1120123
Anschluss: 3/8" female thread
Einsatz ab: (-)
Wasserleistung: (-)
Schubdüsen: (-)
Schub-Strahlwinkel: (-)
Rotationsdüsen: 4x M4
Rotation-Strahlwinkel: rotation 90° / 43°
Maße: 48 × 50 × 50 mm
Gewicht: 0.55


Art.-Nr.:
1120126
Anschluss: 3/8" female thread
Einsatz ab: (-)
Wasserleistung: (-)
Vorstrahldüsen: 3x M4
Vorstrahlwinkel: 20° / 5°
Rotationsdüsen: 2x M4
Rotation-Strahlwinkel: rotation 90°
Maße: 48 × 50 × 50 mm
Gewicht: 0.54


Art.-Nr.:
1120127
Anschluss: 3/8" female thread
Einsatz ab: (-)
Wasserleistung: (-)
Vorstrahldüsen: (-)
Vorstrahlwinkel: (-)
Rotationsdüsen: 4x M4
Rotation-Strahlwinkel: rotation 43°
Maße: 48 × 50 × 50 mm
Gewicht: 0.55


Art.-Nr.:
1120128
Anschluss: 3/8" female thread
Einsatz ab: (-)
Wasserleistung: (-)
Schubdüsen: (-)
Schub-Strahlwinkel: (-)
Rotationsdüsen: 4x M4
Rotation-Strahlwinkel: rotation 90°
Maße: 48 × 50 × 50 mm
Gewicht: 0.55
