metal detector VM880

metal detector VM880

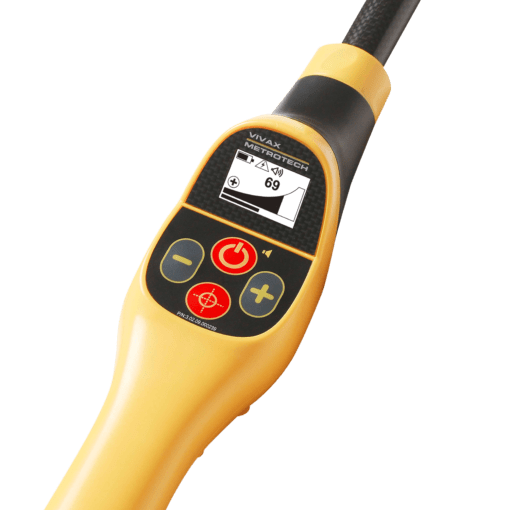

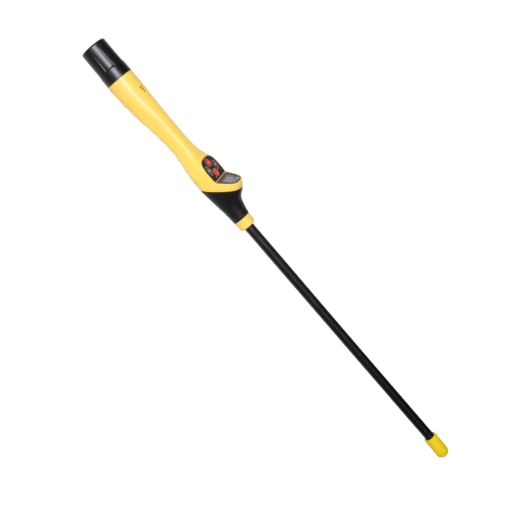

The VM880 is a slide rod detector and allows an easy and reliable detection of gate valves, slide rods, well linings, and other iron or steel components, including magnetic markers. It detects only ferromagnetic items (iron and steel), but no non-magnetic objects like aluminum beverage cans, crown caps etc.

The VM880 is easy to operate and easy to adjust by means of the display, it works both in zero and in peak modes.

Characteristics

  • only detection of ferromagnetic objects
  • dot matrix LCD screen
  • optical and acoustic signal strength display
  • Extra-strong carbon fiber housing for the antenna
  • Water-repellent housing
  • High sensitivity
  • Magnetic field Polarity display
  • 28h continuous operation with only 2 x AA (LR6) batteries possible
  • Continuous battery status indication
  • One-button sensitivity control with manual readjustment
  • 50Hz Current signal warning (near live cables)
  • padded carrier bag as standard



Technical data

  • Operating time: up to 28 hours
  • Locating depth: up to 5 m
  • Survey nails up to 25 cm
  • Shutter rod up to 100 cm
  • slider caps up to 120 cm
  • Limit marker (magnet) up to 100 cm
  • Cast iron pipes up to 270 cm
  • 15cm iron pipe up to 300 cm
  • Manhole cover up to 300 cm
  • Valve cover up to 300 cm
  • large iron tank up to 500 cm



Scope of delivery

  • Metal detector VM880
  • Carrying bag
  • Battery holder for 2 AA batteries
  • USB 2.0 cable A to B mini plug 1m
  • Operating instructions

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
2004452
Ausführung: complete set
Maße: 1090 × 88 × 67 mm
Gewicht: 0.70


Manual - VM880 metal detector

Download

0
Request for quotation
