M18 FUEL Battery sectional cable machine

M18 FUEL Battery sectional cable machine

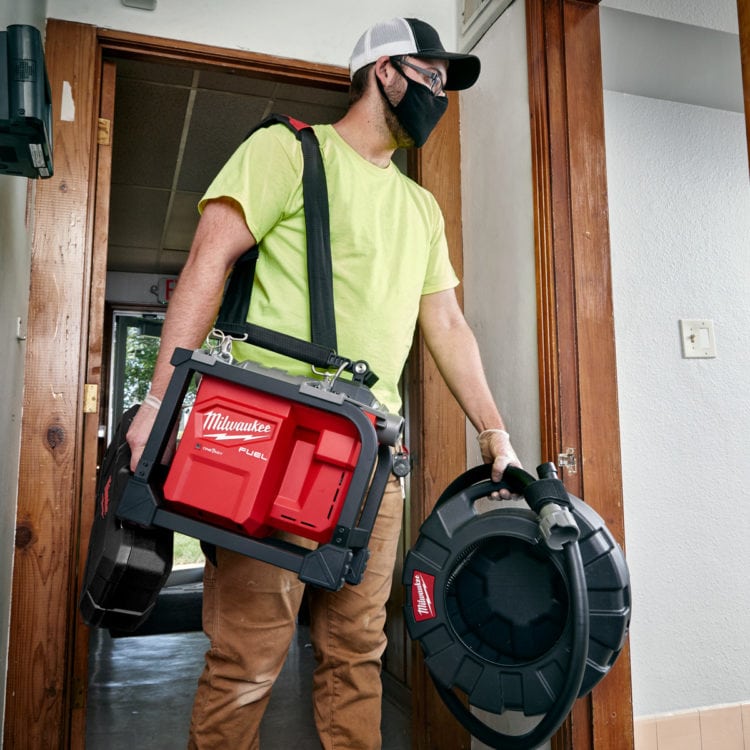

Milwaukee’s M18 FUEL battery-powered sectioncal cable machine for 22 and 32 mm spirals is the world’s first 18 V battery-powered sectional cable machine with flow and return for house connections from DN 50 – 200 mm up to 60 m in length.

The especially powerful 12.0 Ah battery offers the freedom to remove blockages, cut roots and mill before increasing the amount of work. With the quick-change battery system, you are immediately ready for use again. The tool has a classic lever switch so you always have the spiral under control. With the Autofeed function you can switch on an automatic spiral feed and retraction.

Characteristics

  • The world’s first 18 V battery-powered partial spiral machine with automatic forward and return
  • CABLE-DRIVE lock for the set feed rate with automatic adaptation to the cable diameter for best grip when working on the blockage
  • Brushless POWERSTATETM motor delivers constant power over the entire 60 m cable length
  • Suitable for 22 mm and 32 mm spirals of other manufacturers
  • Wheel unit and extendable handle for comfortable transport
  • The operating lever can be brought into the transport position, which makes the machine easy to carry.
  • Battery REDLITHIUM™-ION, REDLINK Intelligence PLUS™ and ONE-KEY™- Digital Connectivity for unsurpassed performance, range, durability and asset management on the job site



Technical data:

  • Pipe diameter: from 50 – 200 mm
  • Cable length: 60 m
  • Battery voltage: 18 V
  • Idle speed: 700 min -1
  • Weight with battery: 33,3 kg



M18 FSSM-121 – Set consisting of:

  • M18 FSSM sectional cable machine
  • 1 x 12.0 Ah battery pack
  • M12-18 FC charger
  • 1 x hose guide
  • 2 x spiral drum

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
M4933471410
Ausführung: complete set, with battery and charger
Arbeitsbereich: 75 - 200 mm
Spiraltyp: 22 mm, 32 mm
Maße: 900 × 490 × 620 mm
Gewicht: 33.3


Art.-Nr.:
M4933471411
Ausführung: without battery and charger
Arbeitsbereich: 75 - 200 mm
Spiraltyp: 22 mm, 32 mm
Maße: 900 × 490 × 620 mm
Gewicht: 33.3


Art.-Nr.:
M48533840
Ausführung: accessories
Spiraltyp: 22 mm
Maße: 470 × 190 × 110 mm
Gewicht: 3.60


Art.-Nr.:
M48534839
Ausführung: accessories
Spiraltyp: 32 mm
Maße: 470 × 190 × 110 mm
Gewicht: 3.60


Art.-Nr.:
M4932471719
Maße: 610 × 610 × 230 mm
Gewicht: 3.75


0
Request for quotation
