Locater – SeekTech SR-20

Locater – SeekTech SR-20

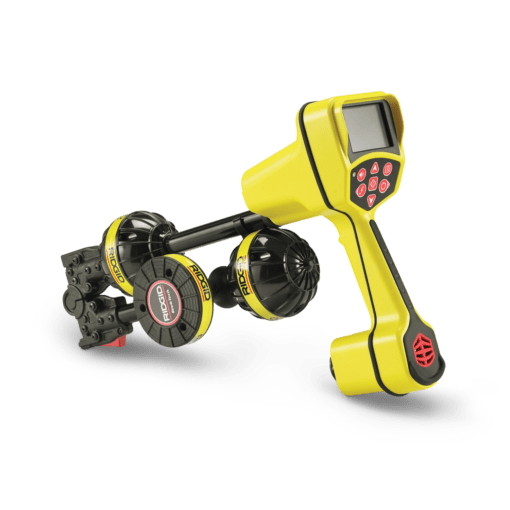

The Ridgid SeekTech SR-20 is a light and robust receiver. With its 4 antennas, the SR-20 offers a faster and more accurate localization than the NaviTrack Scout. In addition, it has a larger display and a larger reception range.

The device is ideal for users who use SeeSnake cameras and other probes and need to locate power lines.

Characteristics

performance data

  • Active Line Trace Frequencies: 128 Hz, 1 kHz, 8 kHz and 33 kHz
  • Passive Power Trace: 50 Hz, 60 Hz, <4 kHz Broadband
  • Passive Radio Trace: 4 kHz-15 kHz, 15 kHz-36 kHz
  • Sonde Frequencies: 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz
  • Power Source: 4 C-Cell batteries (included)
  • Battery Life: approximately 16 hours



Scope of delivery

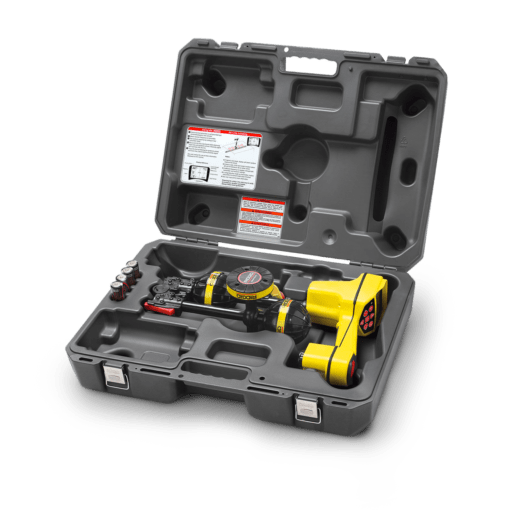

  • plastics case
  • 4 x C-batteries
  • marker chips and clip

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
R21943
Ausführung: complete set
Maße: 300 × 180 × 800 mm
Gewicht: 1.80


Art.-Nr.:
R12543
Ausführung: spare part
Maße: 127 × 119 × 18 mm
Gewicht: 0.05


Click here to go to the product.
