Hydraulic root cutter HWB

Hydraulic root cutter HWB

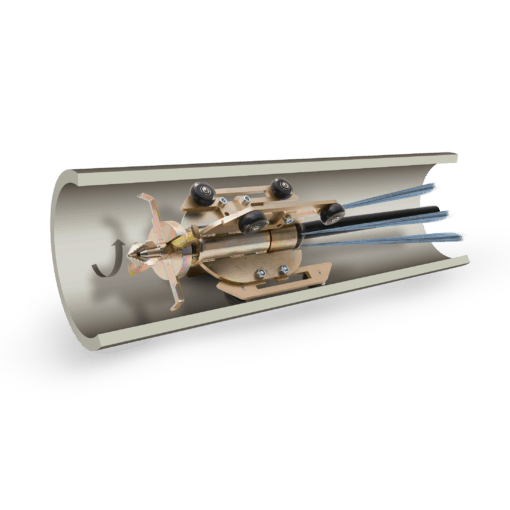

The hydraulic root cutter Hydro-Power type HWB is a power packet for the removal of sewer deposits and roots of any kind. Output amounts to 2.1 kW. The tool is driven by a hydraulic motor, similar to the HWA nozzle. Features are high efficiency, constant torque, and rugged and compact construction.

Rugged guide skids of matching size are installed to centre the system. Due to the many standard accessories, you may use the “Hydro-Power” HWB 2-4 nozzle for tubes of DN 200, 250, 300, 350, and 400 mm. The simple design allows quick and easy replacement of blade retainers and guide skids. The optional chain heads remove small roots and light deposits from the tube wall, after the trunk root is cut.

Characteristics

  • removal of nested and small roots in tubes between DN 200 and DN 400
  • use even with low pump flow rate
  • prepared for chain heads of small roots cutters
  • combination with tools for mechanical cleaning possible



Available stock:

  • assembly set for DN 200 – DN 400 in rugged transport case
  • hydraulic motor in guide basket for DN 200
  • 1 set guide skids for DN 250/300 and DN 350/400 each

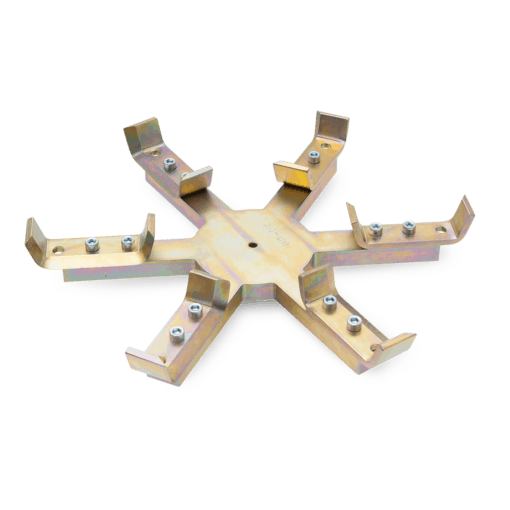

  • root cutter blades (for DN 200, DN 250, DN 300 and DN 350/400), cross-blade drill head, service hand crank, maintenance spray, assembly tools



Recommended:

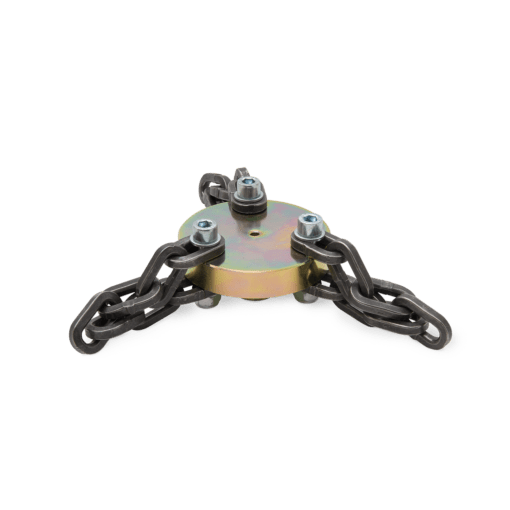

  • retainers for chain heads of small roots cutters
  • combination with tools for mechanical cleaning possible
  • the hydraulic root cutter should be combined with a high pressure rotating joint



Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1120300
Anschluss: 3/4" female thread
Einsatz ab: 200 - 400 mm
Wasserleistung: from 180 lpm
Schubdüsen: 4x M6
Schub-Strahlwinkel: 30°
Maße: 250 × 120 × 120 mm
Gewicht: 11.00


Art.-Nr.:
1120307
Anschluss: 3/4" female thread, 1" female thread
Einsatz ab: 200 - 400 mm
Wasserleistung: from 180 lpm
Schubdüsen: 4x M6
Schub-Strahlwinkel: 30°
Maße: 250 × 120 × 120 mm
Gewicht: 11.00


Art.-Nr.:
1120302
Einsatz ab: 200 - 400 mm
Maße: 120 × 120 × 45 mm
Gewicht: 2.50


Art.-Nr.:
1120301
Einsatz ab: 300 - 400 mm
Maße: 98 × 30 × 25 mm
Gewicht: 0.11


Art.-Nr.:
1120274
Einsatz ab: 200 mm
Maße: 175 × 20 × 25 mm
Gewicht: 0.07


Art.-Nr.:
1120275
Einsatz ab: 250 mm
Maße: 210 × 20 × 25 mm
Gewicht: 0.09


Art.-Nr.:
1120311
Maße: 110 × 60 × 60 mm
Gewicht: 0.20


Art.-Nr.:
1120266
Maße: 3000 × 30 × 30 mm
Gewicht: 1.5
