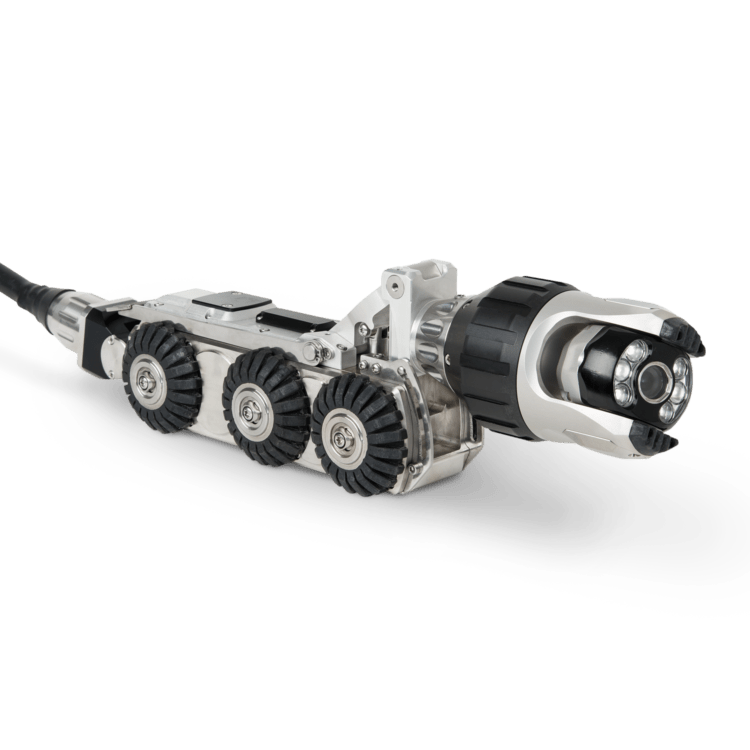

CRP90 – Crawler

The CRP90 is smallest member of the Proteus family  – this crawler can be used from DN 100 (even in relined 100 mm pipes). With the motorised elevator and quick-change wheel sets, it can also handle pipes up to 300 mm.

Optionally available for ATEX Zone 2.

Characteristics

  • for axial camera CAM027, pan/rotate camera CAM026 and zoom camera CAM028
  • Motorised elevator – range 40 – 77 mm
  • Articulated Knuckle Connector
  • particularly narrow and robust aluminium / stainless steel housing
  • 1 bar pressure tight
  • steerable with powerful 6/4 all-wheel drive
  • patented quick-change wheel lock
  • switchable multifrequency probe (512 Hz / 640 Hz / 33kHz)
  • Inclination sensors (measuring accuracy 0.1°) for longitudinal and transverse axis
  • Cross slope (roll) with alarm function in control unit

Scope of delivery:

  • 6x ground wheels
  • lowering arm
  • carrying case
  • tools

Ordering Information

SKU
Product name
Properties
LxWxH & Mass


Art.-Nr.:
7003070
Produktbezeichnung:
Arbeitsbereich / Workspace: 90 - 300 mm
Ortung: 33 kHz, 512 Hz, 640 Hz
Maße: 430 × 280 × 150 mm
Gewicht: 4.50


Art.-Nr.:
7003075
Produktbezeichnung:
Anwendung: ATEX-Zone
Arbeitsbereich / Workspace: 90 - 300 mm
Ortung: 33 kHz, 512 Hz, 640 Hz
Maße: 430 × 280 × 150 mm
Gewicht: 4.50
