Centrifugal fan RV160
Centrifugal fan RV160

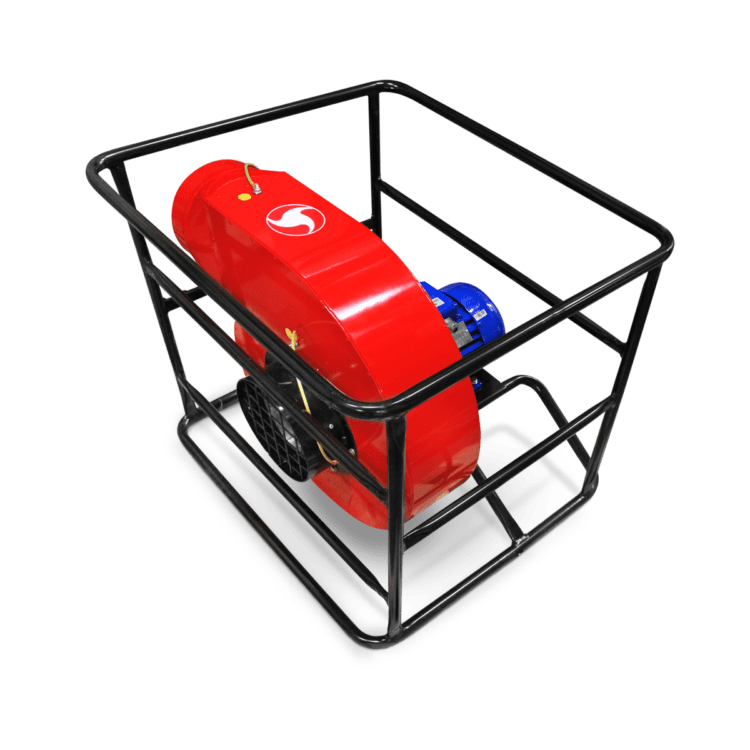

The portable centrifugal fan type RV160 ATEX is used for the aeration and ventilation of sewers and sewage systems or for the extraction of gases and vapours from sewage systems and is designed for operation in explosion hazard zones where explosive atmospheres may occur, i.e. a mixture of fuels in the form of gases, vapours and mists with air.
The centrifugal fan achieves a much higher pressure than a conventional axial fan. The air flow is bundled and directed in a compressed direction, making the units more suitable for ventilation with long hose lengths.
Characteristics
- Ventilation of sewers and sewage installations and for suction of gases and vapours
- ATEX version (400V unit) suitable for use in potentially explosive zones
- Supporting frame for mobile use
- Protective grille at air inlet and outlet
Technical data
- Conveying capacity: 1900 m³/h / 2500 m³/h
- Maximum pressure increase: 1250 Pa / 1700 Pa
- Maximum air volume: 1900 m³/h / 2500 m³/h
- Sound pressure level: 1m distance 76 dB(A) 5m distance 62 dB(A)
- Connection pressure side: 160 mm
- Connection suction side: 160 mm
- Engine: 3000 rpm
- Voltage: 230 V / 400 V
- power output: 0,37 kW / 0,75 kW
- Protection class: IP54 / IP56
- Connection cable 5 m long
Hoses (optional)
- abrasion protection due to external clamping profile
- extremely good chemical resistance
- good resistance to alkalis and acids
- Use in hazardous areas (ATEX-protection)
- for aggressive solids such as dusts, powders and fibres
- for aggressive gaseous media such as vapours and smoke
- prolongable
Ordering Information
Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht
Art.-Nr.:
1140400
Spannung: 400 volts
Ausführung: EX-protection
Fördervolumen: 2500 m3/h
Maße: 475 × 440 × 535 mm
Gewicht: 21.0
Gewicht: 21.0
Art.-Nr.:
1140409
Spannung: 230 volts
Fördervolumen: 1900 m3/h
Maße: 475 × 440 × 535 mm
Gewicht: 17.0
Gewicht: 17.0
Art.-Nr.:
1150102
Länge: 7.5 m
Durchmesser: ∅ 160 mm
Ausführung: EX-protection
Maße: 800 × 160 × 160 mm
Gewicht: 8.00
Gewicht: 8.00
Art.-Nr.:
1140413
Durchmesser: ∅ 160 mm
Maße: 200 × 160 × 160 mm
Gewicht: 0.50
Gewicht: 0.50
