Centrifugal fan RV125

Centrifugal fan RV125

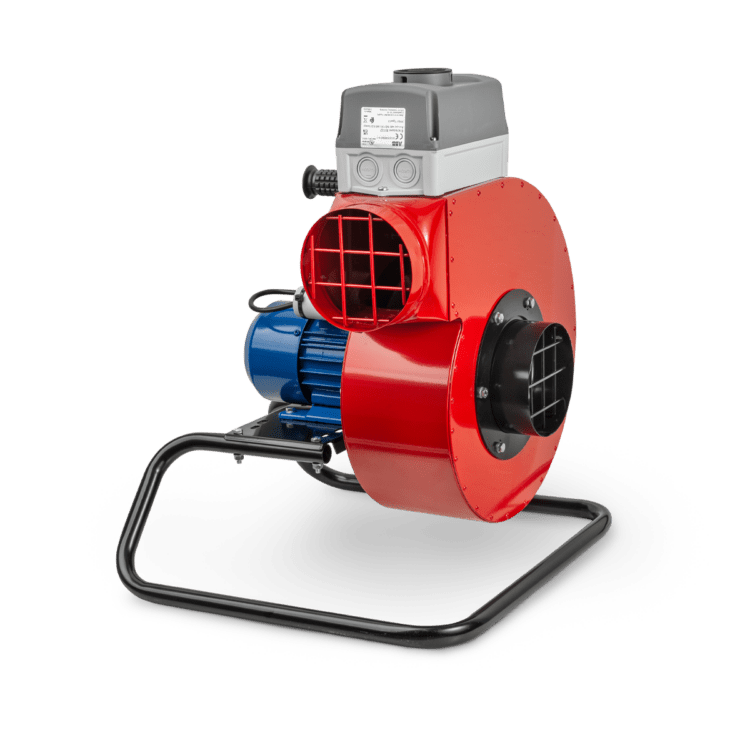

The portable centrifugal fan type RV125 is used for the aeration and ventilation of sewers and sewage systems or for the extraction of gases and vapours from sewage systems.

The centrifugal fan achieves a much higher pressure than a conventional axial fan. The air flow is bundled and directed in a compressed direction, making the units more suitable for ventilation with long hose lengths.



Characteristics

  • Ventilation of sewers and sewage installations and for suction of gases and vapours
  • Supporting frame for mobile use
  • Protective grille at air inlet and outlet



Technical data

  • Conveying capacity: 1160 m³/h
  • Maximum pressure increase: 940 PA
  • Maximum air volume: 1160 m³/h
  • Sound pressure level: 1m distance 69 dB(A) 5m distance 55 dB(A)
  • Connection pressure side: 125 mm
  • Connection suction side: 125 mm
  • Engine: 3000 rpm
  • Voltage: 230 V
  • power output: 0,0,25 kW
  • Protection class: IP54
  • Connection cable 5 m long



Hoses (optional)

  • abrasion protection due to external clamping profile
  • extremely good chemical resistance
  • good resistance to alkalis and acids
  • for aggressive solids such as dusts, powders and fibres
  • for aggressive gaseous media such as vapours and smoke
  • prolongable

Ordering Information

Art.-Nr.
Produktbezeichnung
Eigenschaften
LxBxH & Gewicht


Art.-Nr.:
1140401
Spannung: 230 volts
Fördervolumen: 1160 m3/h
Maße: 485 × 420 × 575 mm
Gewicht: 12.0


Art.-Nr.:
1140407
Länge: 7.5 m
Durchmesser: ∅ 125 mm / 5"
Maße: 750 × 125 × 125 mm
Gewicht: 8.00


Art.-Nr.:
1140408
Durchmesser: ∅ 125 mm / 5"
Maße: 200 × 125 × 125 mm
Gewicht: 0.40


Click here to go to the product.
